INTRODUCTION
This optional package allows for distribution of air into an adjacent zone requiring a controlled temperature. This assembly will
discharge the conditioned air to either the right or left depending upon which end the cap is placed. (See Figures 20 and 21)
This package, when installed on a DL3-0912 series cannot be lengthened. Maximum length, not including adaptor, is 43 1/4". On
model DYNA12AC and DYNA16AC, additional lengths may be added.
If additional length is required, connector assembly (No. K/10734) may be used. No more than two (2) connectors may be used.
Maximum length not including the adaptor is 130" (10.8 Feet).
NOTE: Installer must provide wall support brackets for the connector and extension. Not recommended for use on models with built-
in thermostats.

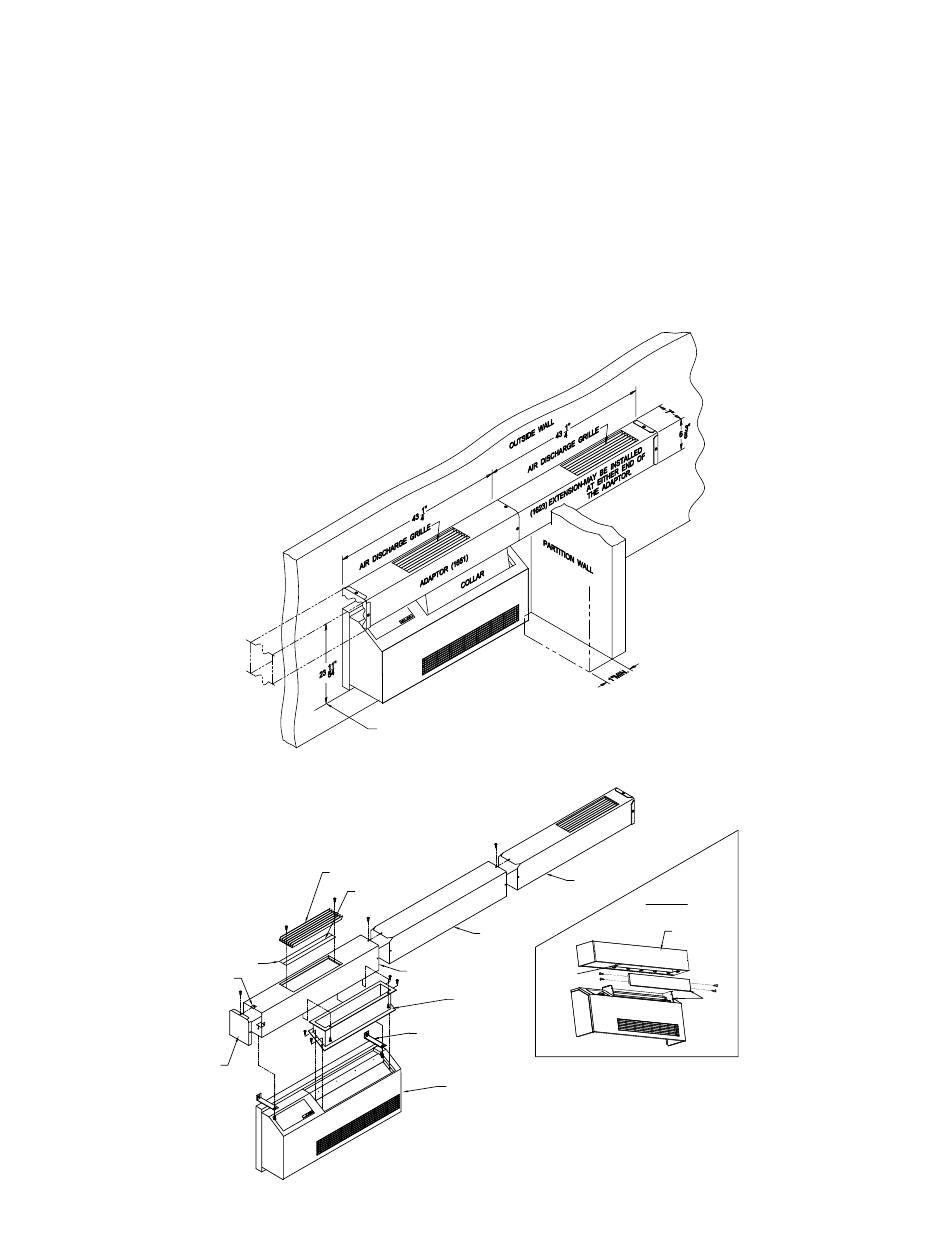

TINNERMAN
CAP
DL3 AIR DISCHARGE PACKAGE
STOCK NO. K/10730 - ADAPTOR
STOCK NO. K/10733 - EXTENSION
STOCK NO. K/10734 - CONNECTOR
BOTTOM OF SLEEVE TO TOP OF
AIR DISCHARGE ADAPTOR
GRILLE
SCORE LINE
BAFFLE
ADAPTOR (K/10730)
Figure 21
EXTENSION (K/10733)
CONNECTOR (K/10734)
TABS
COLLAR
(SEE DETAIL VIEW)
BRACKET
DL3 DYNALINE INSTALLED IN WALL.
(SHOWN ONLY FOR THE PURPOSE OF
ILLUSTRATING AIR PACKAGE INSTALLATION).
Figure 22
19
DETAIL VIEW
ADAPTOR
COLLAR
