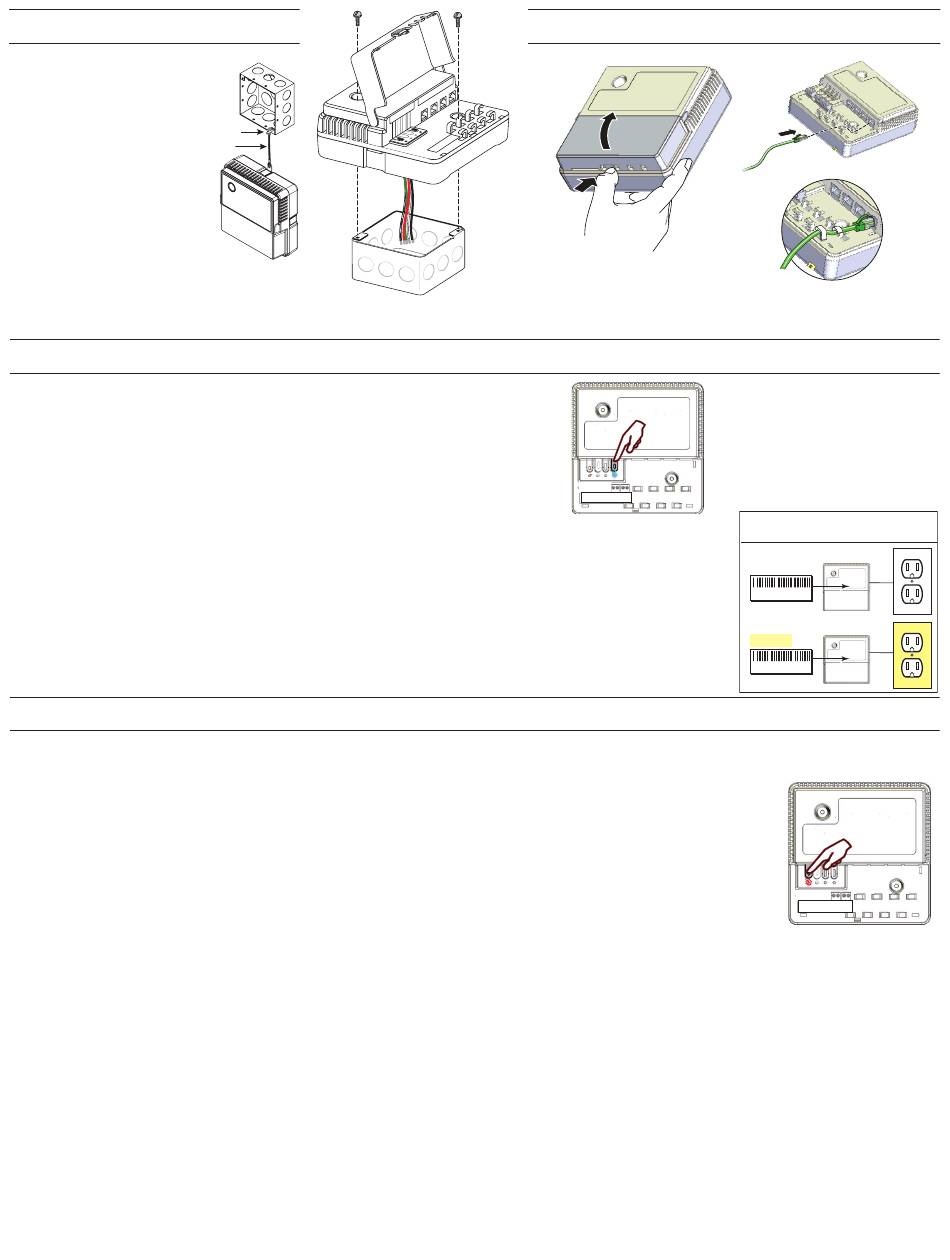

MOUNTING THE CONTROLLER
The plug load room
controller mounts as the
cover for a four square
deep junction box. It is
equipped with a lash and
hook to hang the controller
from a j-box cover tab
while connecting the
line voltage wires. After
securely connecting the
wires, unhook the lash
from the j-box and secure
the controller to the j-box
cover tabs using two screws.
The plug load circuit connected to the LMPL-201 is automatically controlled
by all occupancy sensors on the DLM local network. After the last occupancy
sensor's time delay expires, the LMPL-201 shuts OFF the switched
receptacle circuit.
Load Control Arbitration
To take full advantage of automatic PnG configuration, review these simple rules about load control
arbitration.
After the room controllers are connected to the DLM Local Network and powered up they automatically
negotiate to determine which controller becomes the Master and the load numbers for each relay on the
DLM Local Network.
The Master is the controller with the highest serial number. The LMPL-201 has one load relay.
In a DLM local network with only LMPL-201 plug load room controllers, the LMPL-201 with the highest serial
number is the Master, carrying Load 1. The next highest serial number would have Load 2 and so forth.
Load Selection Procedure
A configuration button (Config) allows access to our patented Push n' Learn™ technology to change binding relationships between
sensors, switches and loads.
Step 1 Enter Push n' Learn
Press and hold the Config button (on any DLM device) for 3 seconds.
The red LED on the LMPL-201 begins to blink. When you release the button, the red LEDs on other
communicating devices connected to the DLM Local Network begin to blink. They continue to blink until you
exit PnL mode.
All loads in the room turn OFF immediately after entering PnL, then one load will turn ON. This is Load #1,
which is bound to all occupancy sensors on the DLM local network as part of the Plug n' Go factory default
setting. All switch buttons and sensors that are bound to this load have their blue LED solid ON.
Step 2 Load selection
Press and release the Config button to step through the loads connected to the DLM Local Network. As each load turns ON note the
devices (switch buttons and sensors) that are showing a bright solid blue LED. These devices are currently bound to the load that is
ON. The blue LED on the room controller or plug load controller connected to the load is also lit.
• To unbind a switch button from a load, press the switch button while its blue LED is ON bright. The blue LED goes dim to indicate
the button no longer controls the load that is currently ON.
• To unbind an occupancy sensor, press the up () or down () adjustment button while its blue LED is ON. The blue LED turns
OFF to indicate the sensor no longer controls the load that is currently ON.
• Pressing the switch button or sensor up () or down () again while the load is ON rebinds the load to the button or sensor and
the blue LED illuminates brightly.
Step 3 Exit Push n' Learn
Press and hold the Config button until the red LED turns OFF, approximately 3 seconds.
4" square
deep
J-box
Hook
Lash
Use a 4"x 4"x 2 1/8"
deep (minimum) box
PLUG N' GO OPERATION (PNG)
UNIT ADJUSTMENT - PUSH N' LEARN (PNL)
ATTACHING LMRJ LOW VOLTAGE CABLES
Remove rubber jack covers to use RJ45 receptacles.
Leave covers in place for all unused receptacles.
2
Blue LED ON when switched
receptacle circuit is ON.
Load button:
Press & release to turn the
switched receptacle ON/OFF.
Serial
Plug Load
Load
Number
Controller
Control
LMPL-201
0341373638
0429817004
LMPL-201
Master
0341373638
0429928526
Config button & red LED
2
1
