1.1 Package contents

Atlantis Land Wireless Broadband Router, CD-Rom with manual,
Guide, External 2 dBi Antenna, Power Adapter AC-DC (7.5V, 1A).

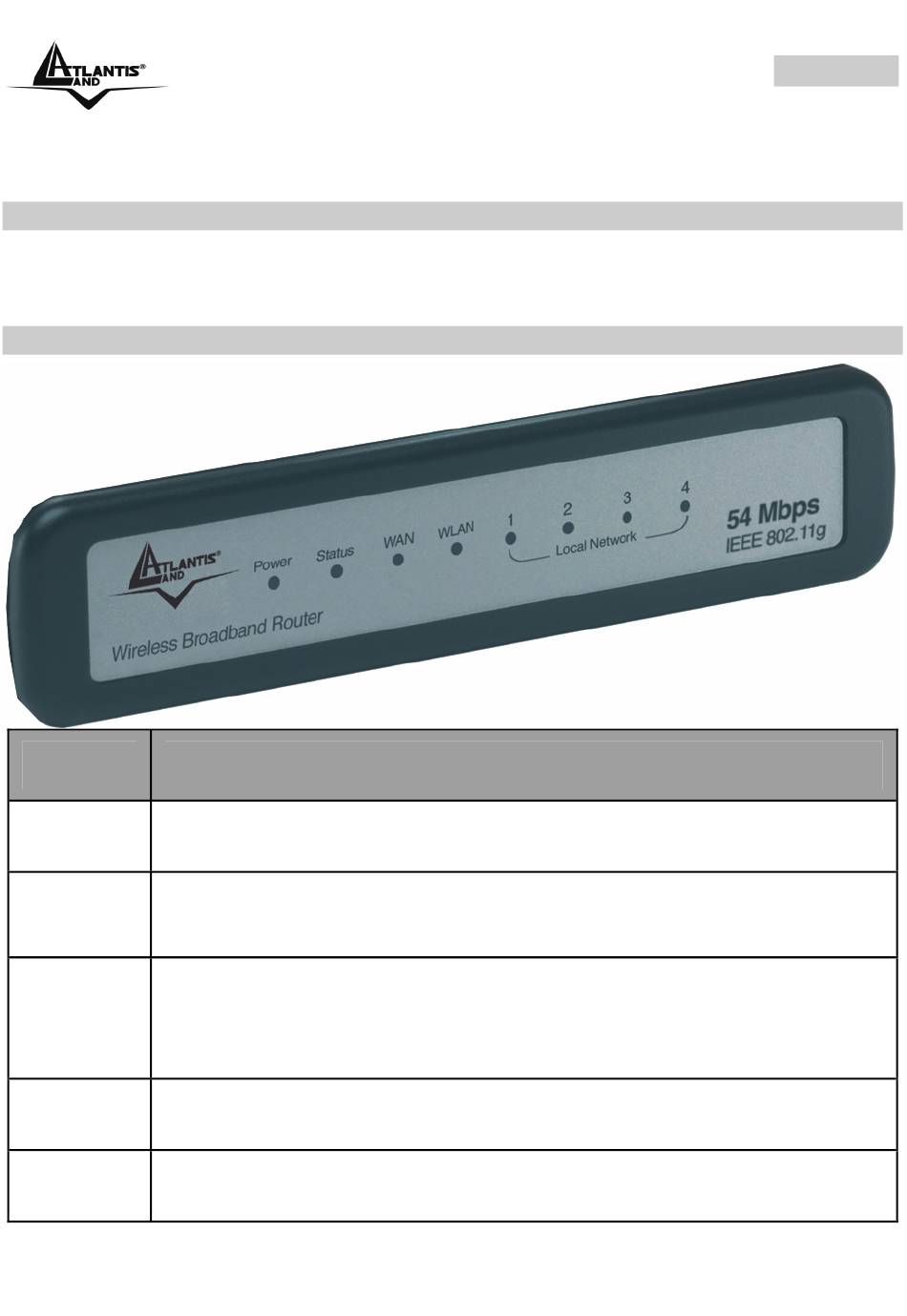

1.2 The Front Panel LEDs

LED MEANING
This indicator lights green when the hub is receives power,
POWER
otherwise it is off.
This indicator blinks green means the Internet Broadband Router is
working successful. Otherwise, this indicator always on or off
STATUS
means the function of the Internet Broadband Router is fail.
The indicators light green when the WAN port was connected to an
xDSL/Cable modem successfully.
WAN
The indicators blink green while the WAN port was transmitting or
receiving data on the xDSL/Cable modem.
This indicator
WLAN
connected and transmitting data to the Wireless Router.
These indicators light green when the LAN ports were connected
LAN
successfully.
