Rated Current Adjustment; Closing The Charger - Wallbox Pulsar Plus Guide D'installation

INSTALLATION
Hardwired Installation
Selecting a switch position
exceeding the rated current will
not exceed the rated current.
CAUTION To reduce the risk of fire, only connect
your charger to a circuit with a branch circuit
overcurrent protection of 125% of the selected max
amperage setting of the device in accordance with
ANSI/NFPA 70 (US) C22.2 NO 280 13 (Canada).
Torque: 13.3in·lbs (1.5N·m)
The 40A and 48A
versions are set to
position 7 by default.
Current
selector
PULSAR PLUS
Amperage Reduction Label
Wallbox Chargers S.L.
SN: 123456 UID: abcdefgh 08/2020 Made in Spain
PN: PUP1-U-1-5-N-002-A 20A
22ºF to 104ºF (-30ºC to 40ºC)
Enclosure Type 3R
Input/Output:
208/240VAC, 60Hz, 48A
Input/Output: Input/Output: EV Charger
20A
208/240VAC, 60Hz, 16A 208/240VAC, 60Hz, 16A
EV Charger
Input/Output: Input/Output: 25A
208/240VAC, 60Hz, 20A 208/240VAC, 60Hz, 20A
Input/Output: Input/Output: EV Charger
30A
208/240VAC, 60Hz, 24A 208/240VAC, 60Hz, 24A
EV Charger
Input/Output: Input/Output: 40A
208/240VAC, 60Hz, 32A 208/240VAC, 60Hz, 32A
Input/Output: Input/Output: EV Charger
50A
208/240VAC, 60Hz,40A 208/240VAC, 60Hz, 40A
Save this label sheet for future use.

Rated current adjustment

1.
Both the 40A and 48A versions of Pulsar Plus
can be adjusted from 16A to the maximum rated
amperage of each model. If you are installing your
charger on a circuit rated lower than the maximum
rating for your charger, you can use the current
selector to manually set a lower maximum current.
Hardwire installations
2.

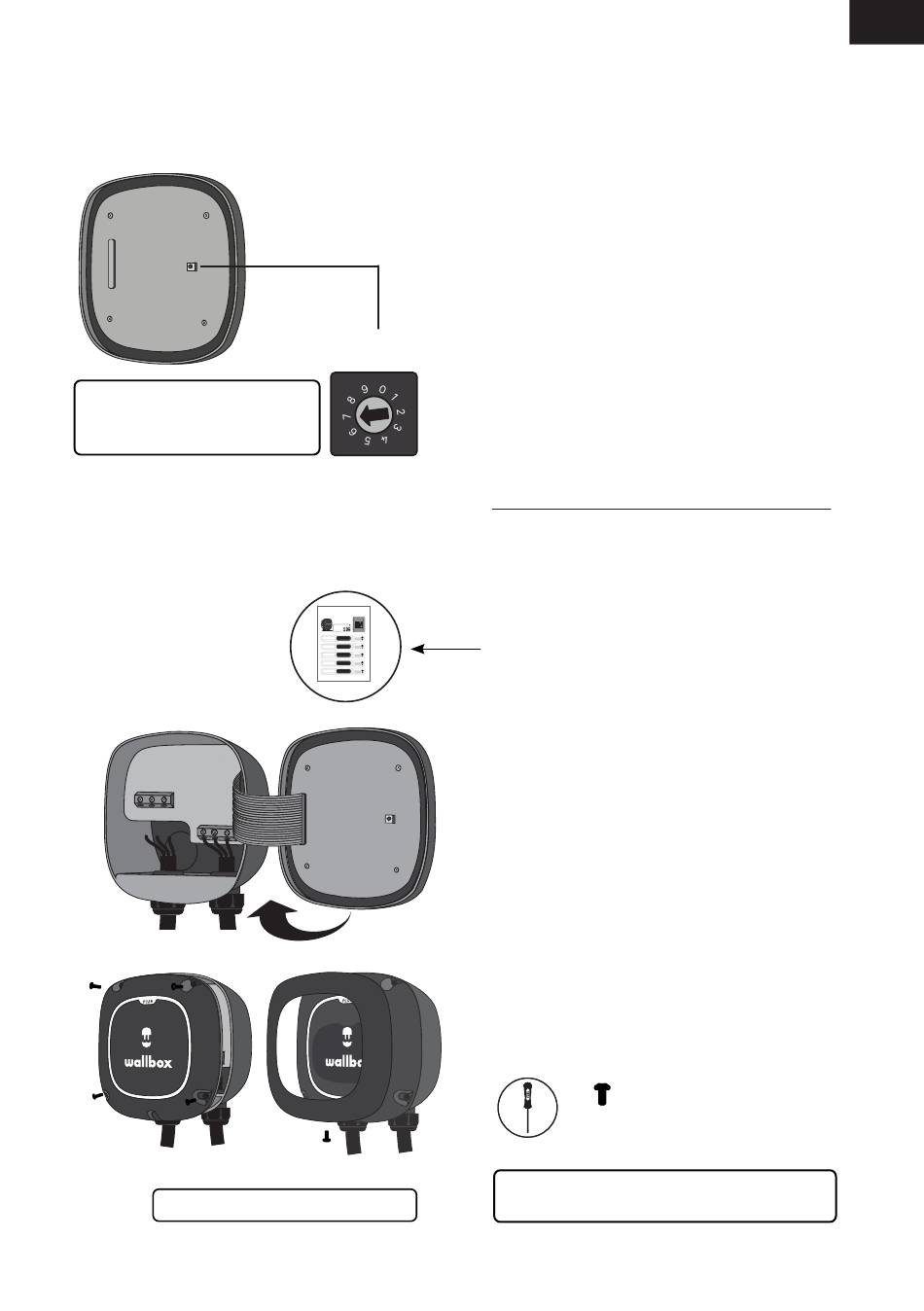

On your charger cover, locate the current
selector and set the rotary switch to the
appropriate setting per the chart below.
Position Amps
2 16A
3 20A
4 24A
5 32A
6 40A
7 48A
3.
When setting your charger's current lower
than the max.rating, use the label corresponding
to your selected current value from the enclosed
amperage reduction label sheet and affix it over
the existing label on your charger.

Closing the charger

1.
Carefully reattach the communications cable
to your charger cover and close the cover of your
charger.
2.
Insert the four corner screws to secure your
charger cover. Do not over-tighten.
3.
Making sure to properly align the bottom
screw opening, place the cover frame on your
charger and attach the frame with the screw.
Do not over-tighten.
ø T20
5 x 10mm
Proceed to the instructions for installing the
holster and operating your charger, pages 16-17.
