USE AND CARE INFORMATION
This rangehood system is designed to remove smoke, cooking
vapors and odors from the cooktop area.

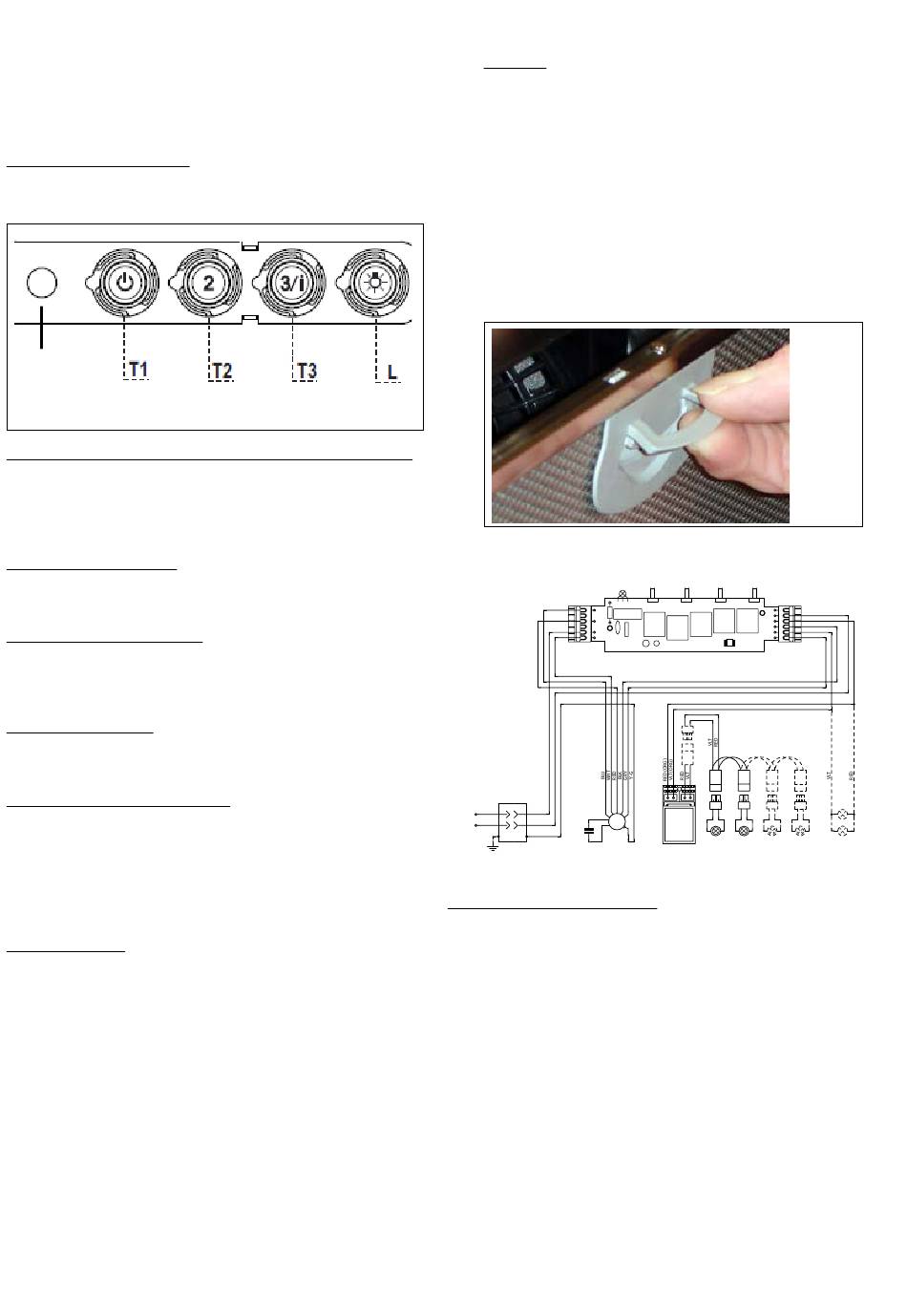

Rangehood Control Panel
The control panel is located under the front side of the hood.
The position and function of each control button is indicated in
FIGURE 5.
I
LED indicator light (I) - indicates current speed with color
Green - speed 1
Orange - speed 2
Red - speed 3
Flashing Red - intensive speed
Light On/Off Button ( L )
On/Off switch for the halogen lights.
the light ON and press again to turn it OFF.
Blower On/Off Button ( T1 )
On/Off button for the blower. Press the button to turn the blower
ON to speed one (indicated by green LED) and press again to
turn the hood off
Blower Speed 2 (T2)
Press this button to turn the hood onto speed #2. (indicated by
orange LED)
Blower Speed 3 / Intensive (T3)
Press this button to turn the hood onto speed #3. (indicated by
solid red LED) Hold down the speed 3 button for 2 seconds to
activate the intensive speed. The intensive speed setting is
indicated by a blinking red light. This operates the hood for 10
minutes on the highest speed and then returns to the previous
speed.
For Best Results
Start the rangehood several minutes before cooking to develop
proper airflow. Allow the unit to operate for several minutes
after cooking is complete to clear all smoke and odors from the
kitchen.
FIGURE 5
0
Press the button to turn
Ver :
Rev :
Creato da. DOLCE CORRADO
Cleaning
The metal grease filters should be cleaned frequently in
hot detergent solution or washed in the dishwasher. The
grease filters are removed by pulling the handle of the filter
as indicated in FIGURE 6. When replacing, make sure
that the filters are properly positioned with the handles in
front and visible.
Clean exterior surfaces with a commercially available
stainless steel cleaner. Abrasives and scouring agents
can scratch stainless steel finishes and should not be
used to clean finished surfaces.
1 2 3
BLK
BLU
1 V1
2
RED
3 MC
4
BLK
5
F
WHT
6 V2
WIRING BOX
BLK
L
LINE IN
ORG
M8 4V
120Vac
WHT
N 120V ~
60Hz ~
Y-G
Y-G
BRW
SCHEMA ELETTRICO M8-4V 120V ESZ.TRASF.EL
Replacing the Halogen Lights
2 INVERTITO FILO RED-BLU SU CONNETTORE 6 VIE BLK
Before attempting to replace the lamps, make sure that the
Materiali: non deveno contenere Pb, Cr6+, Hg, PBB, pbde, ai sensi della direttiva 2002/95 CE
Non rilevare quote dal grafico non apportare modifiche senza l'autorizzazione d'ufficio progettazione
a termini di legge ci riserviamo la proprieta' del presente disegno con divieto di riproduzione totale o parziale
light switch is turned off, and that the other lamps have had
sufficient time to cool. Halogen bulbs burn extremely hot and
serious injury could result from touching a hot bulb.
Remove the bottom of the hood with the two side tabs.
Remove the bulbs by pulling the bulb from the socket.
Replace with a 20 watt MR-11 halogen bulb with a lens
cover.

WIRING DIAGRAM

4 5 6
0-1 2 3/I 0-1
MOTOR SPEED SPEED LIGHT
WHT
6
N 5
L 4
3
V4
2
L
V3 1
ESZ
PRI. SEC.
ELECTRONIC
TRNSFORMER
HALOGEN HALOGEN HALOGEN HALOGEN
LAMPS LAMPS LAMPS
Version 07/11 - Page 7
FIGURE 6
7 8 9
WHT
RED(ORG)
BLK
VLT(ORG)
GRY
INCANDESCENT
LAMPS LAMP
436005333
Code :
H90_071
Disegno N :
15.Apr.2011
Data:
