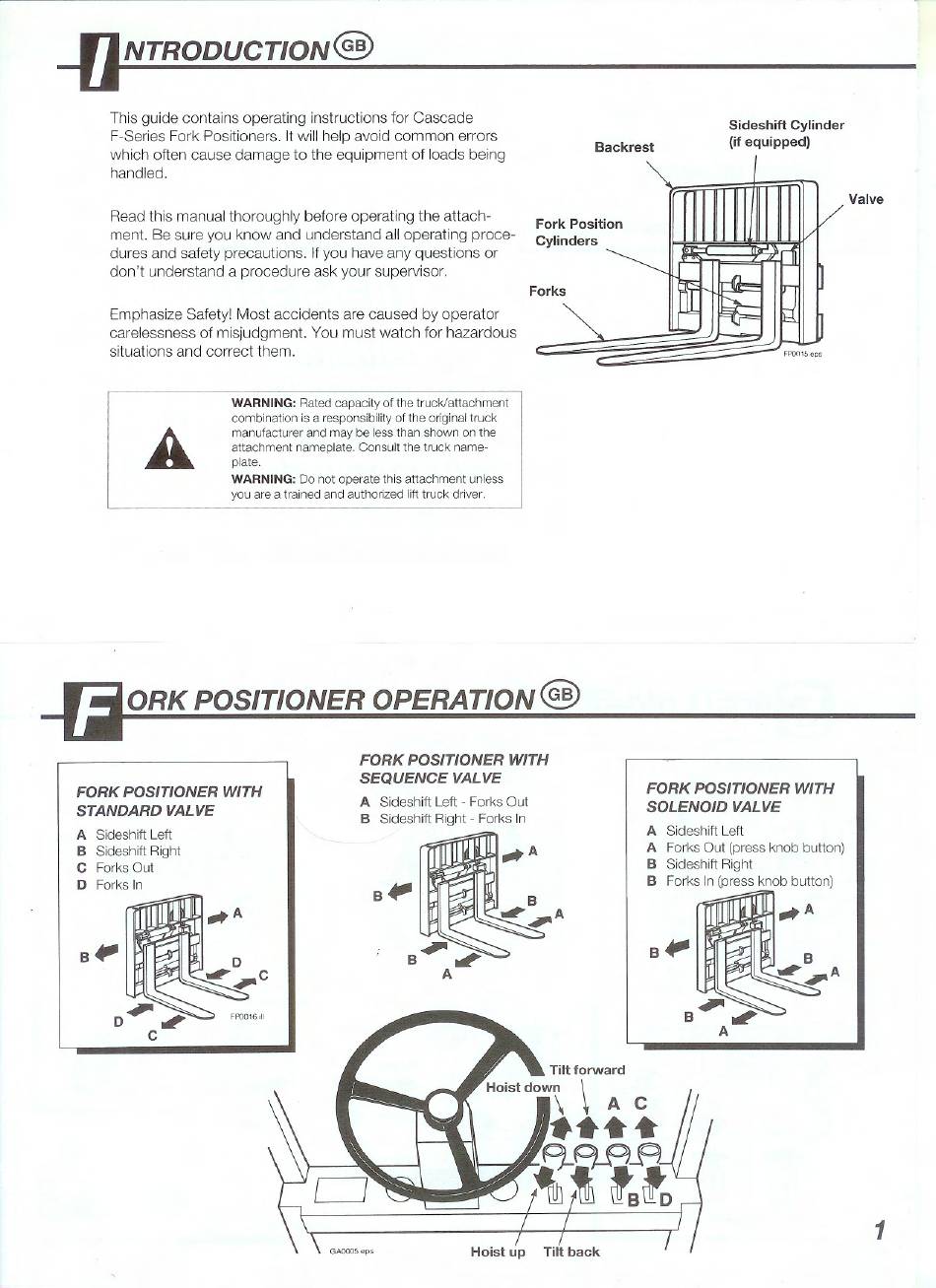

NTRODUCTION@
This guide contains operating instructions for Cascade
F-Series Fork Positioners. It will help avoid common errors
which aften cause damage to the equipment of loads being
handled.
Read th is manual thoroughly before operating the attach-
ment. Be sure you knowand
dures and safety precautîons. If you have any questions or
don't understand a procedure ask your supervisor.
Emphasize Safety! Most accidents are caused byoperator
carelessness of misjudgment. You must watch for hazardous
situations and correct them.
A
-fj ORKPOSITIONEROPERATION
FORK POSITIONER WITH
STANDARD VALVE
A Sideshif! Lef!
B Sideshif! Right
C Forks Out
D Forks In
B"-
understand all operating proce-
WARNING: Rated capacity of the truck/attachment
combination is a responsibility of the original truck
manufacturer and may be less than shown on the
attachment nameplate. Consult the truck name-
plate.
WARNING: Do not operate this attachment
you are a trained and authorized lift truck driver.
FORK POSITIONER WITH
SEQUENCE VALVE
A Sideshif! L ef!
B Sideshif! Right
~-- --
B"-
Backrest
Fork Position
Cylinders
Forks
unless
@
ForksOut
-
Forks In
-
Sideshift Cylinder
(if equipped)
~
FORK POSITIONER WITH
SOLENOID VALVE
A Sideshif! Lef!
A Forks Out (press knob button)
B Sideshift Right
B Forks In (press knob button)
B"-
Valve
1
