4 Operating mode – programming mode
Operating mode
The device is automatically on the operating mode after the voltage
supply has been turned on.
Programing mode
Device parameterization is by three soft keys located below the front
panel (see below).
Key functions
Key
Access programming level and select programming line.
Key
Select functionality or decade in the programming line. The selected
digit is flashing.
Key
For incrementing of selected decades.
How to program
1. Press , display will switch to [Pro] which means access to pro-
gramming level. Another press will make the display skip to first
programming line lnP (option input signal).
2. Proceed with line parameterization using keys
3. Parameterization is stored automatically once parameterization of
the final programming line has been completed. The device will
signal successful store operation by [Stor] and quit the program-
ming level.
4. Programming access can be disabled at programming level, in this
case programming lines will be read only. The device will signal
any programming lock by [dAtA] instead of [Pro] upon access.
www.baumer.com

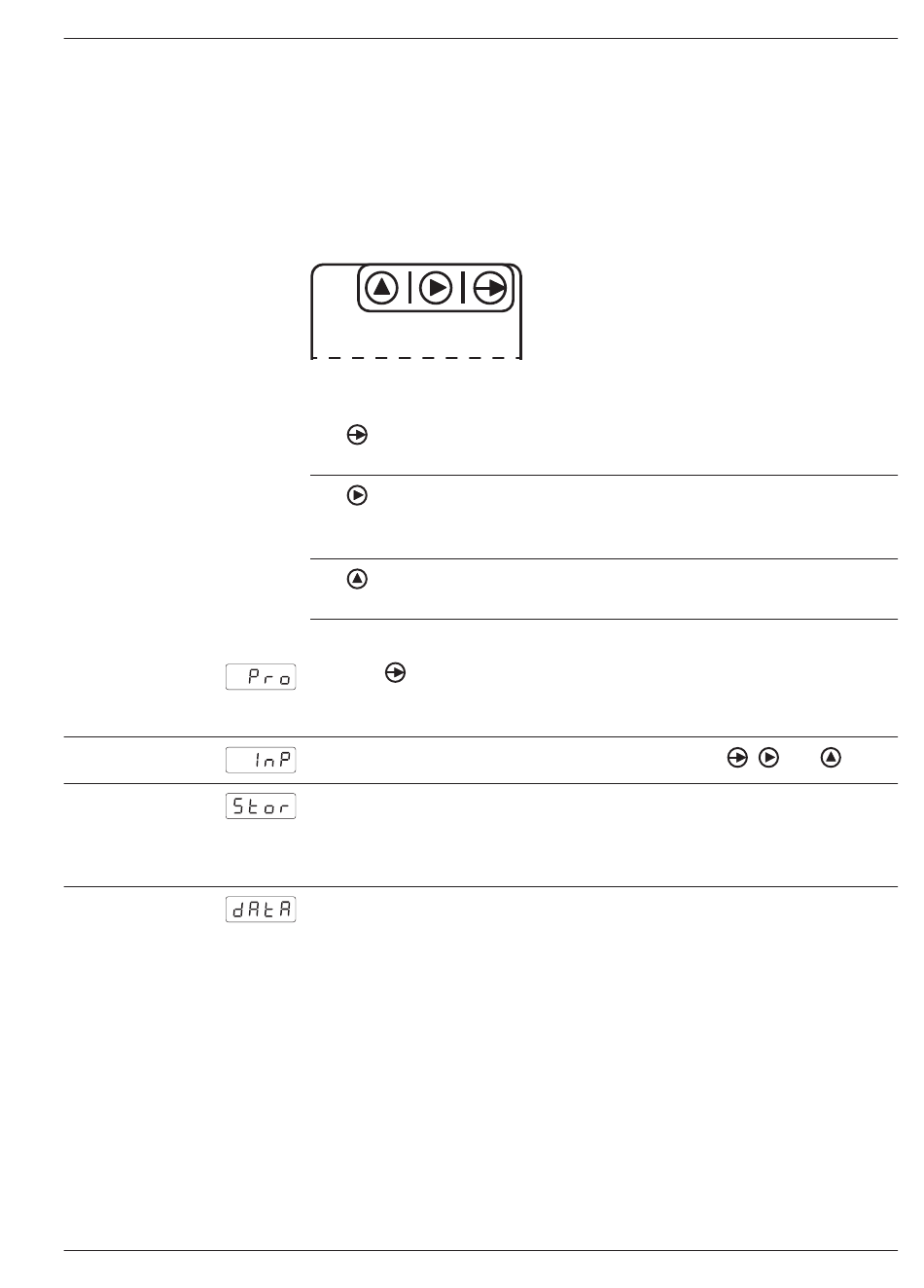

Keypad
