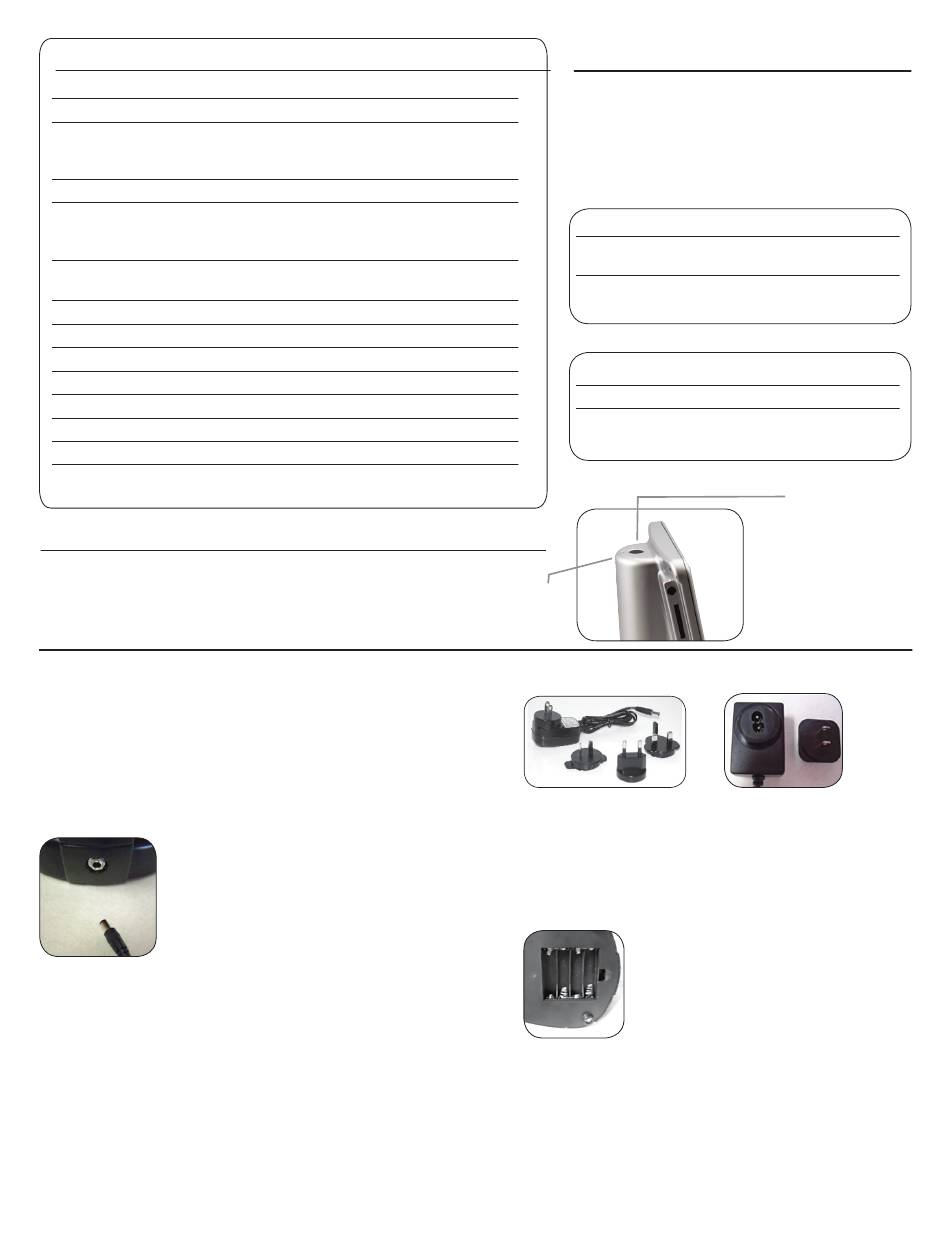

SpeCifiCationS
Stage Mechanical Stage 3.5" x 3.5" (88 mm x 88 mm)
Digital Camera 5 MP ½.5" CMOS; 10x Magnifi cation in lieu of an Eyepiece
LCD Monitor 4.3" (109 mm) with 4x Digital Zoom — High defi nition touch
digital TFT display
Resolution — 480 x 272 pixels
Focuser Dual — Coarse/Fine
Objectives Achromatic, glass type — 4x, 10x 20x, 40x and 60x
You can use optional objective lenses up to 60x but not
lower than 4x — DIN35 RMS thread size WJ 4/5" x 1/36"
4GB SD Card (approximately 1,100+ snapshots @ 5mp
Memory
Snapshots in JPEG format and 3GP fi les for Video
LCD Rotation 180° – 90° left / 90° right
Filter Wheel Red/Green/Blue/1 mm hole/3 mm hole/6 mm hole (default)
Nosepiece Quad with click stop
Illuminators Built-in electric — both are LED 6 Volt and 6 Watt
Condenser N.A. 0.65
AC Adapter Input Universal 100 to 240 Volt 50/60HZ
Batteries User supplied 4AA — approx. 3 hour usage
Weight/Dimensions 67 oz/1.9 Kg 7.0" (178 mm) x 5.5" (140 mm) x 13.0" (330 mm)
touCh pen
You can keep the touch pen handy by keeping it in the receptable behind the
Power ON/OFF button.
Setting up your miCroSCope
1. Carefully remove the microscope and other parts from the
carton and set them on a table, desk, or other fl at surface.
2. Remove the plastic cover from the microscope.
3. Plug the small cable from the AC adapter into the socket on
the back of the base (see Figure 2).
4. Insert the plug you need (see note below) into the AC adapter
and then plug the adapter into the proper power source.
Note: The AC Adapter supplied with this
FIGURE 2
microscope has an interchangeable plug
system that can work in the USA, UK, Europe,
Australia, and many other parts of the world.
You can easily change plugs for your particular
requirement by doing the following:
A. You may have one of two different types of
adapters. One is shown in Figure 3A
and another one is somewhat similar
shown in Figure 3B and each has a different means
of changing plugs.
B. For the Figure 3A type, push down on the small button
labeled "PUSH" and hold it down while at the same
time hold the prongs of the plug and rotate it slightly
counterclockwise and pull up to remove it. Then remove
your fi nger from holding the "PUSH" button down.
Take the plug style that you want to use and center it over
the AC Adapter and rotate it until it falls down into the
opening. Then rotate it clockwise until you hear a click
magnifiCation (poWer) table
Use the following table to determine the
magnifi cation of the different objective lenses in
combination with your microscope using the normal
mode of the digital image on the LCD screen and
using the digital zoom feature.
Objective Lens
Digital Image
— normal
Maximum with 4x
digital zoom feature 160x 400x 800x 1600x 2400x
WorKing DiStanCe
Objective Lens
Working
Distance (mm) - est.
Touch Pen
FIGURE 3A
sound which lets you know the plug is now installed
correctly.
C. For the Figure 3B type, pull the plug up and away while
holding the base of the AC Adapter and the plug will
come off. Take the plug style that you want to use and
align the two holes in the bottom of the
FIGURE 4
plug with the two pins in the AC Adapter.
Then, push the plug into the AC Adapter
all the way and you are fi nished.
Battery operation — You can use your
microscope without AC power if you
choose. This gives you the freedom to
operate the microscope outdoors or
indoors anywhere you please. The battery operation
requires 4AA batteries (user supplied). Open the battery
door on the bottom of the microscope and insert the
batteries according to the battery polarity shown in the
battery compartment (Figure 4). After the batteries are
installed close the battery door. Battery life will typically
be three hours.
3
4x 10x 20x 40x 60x
40x 100x 200x 400x 600x
4x 10x 20x 40x 60x
35.3 7.8 1.9 0.7 0.2
ON/OFF
Button
FIGURE 3B
