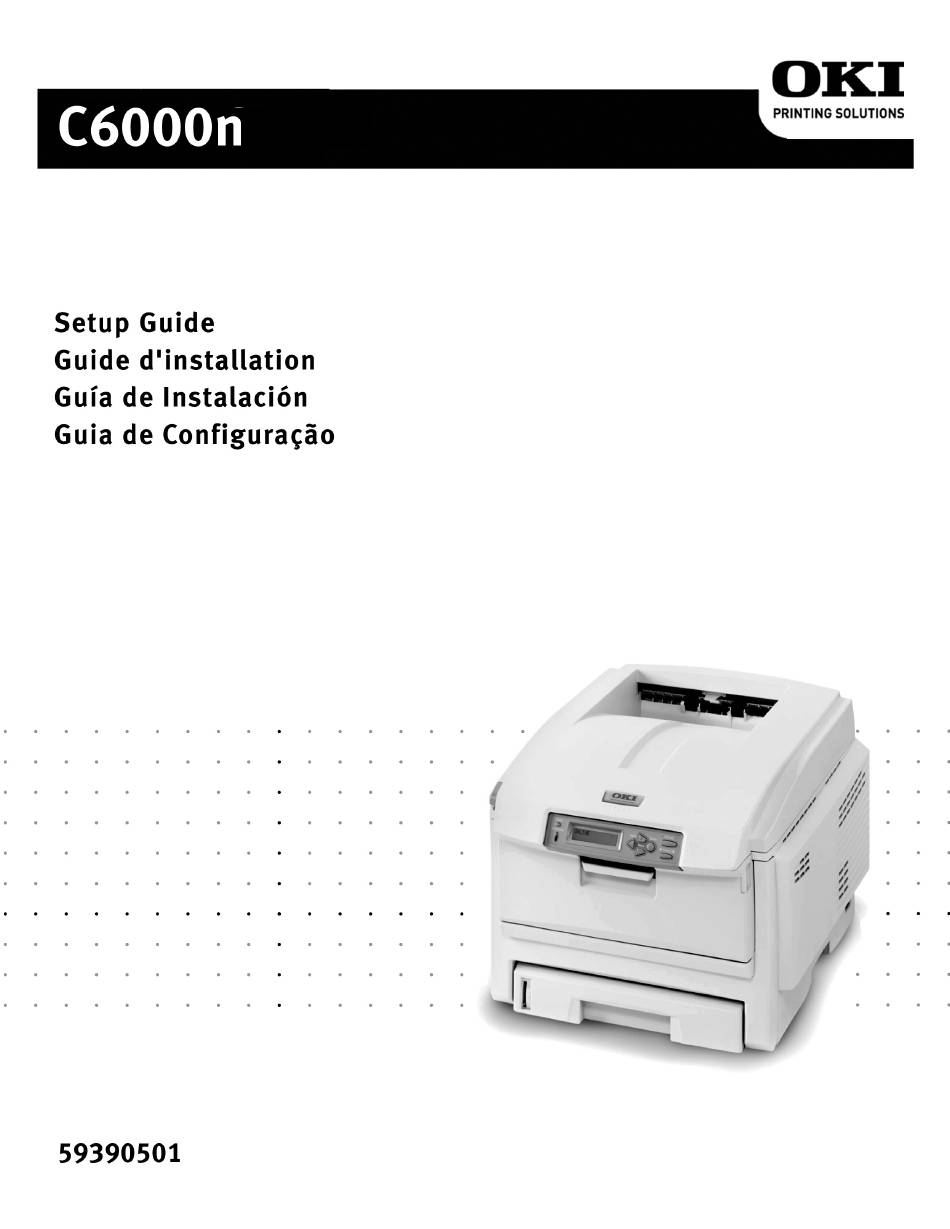

Oki C6000n Guide D'installation

Oki C6000n Guide D'installation

Masquer les pouces Voir aussi pour C6000n:
Table des Matières

Publicité

Liens rapides

Télécharger ce manuel

Publicité

Table des Matières
loading

Manuels Connexes pour Oki C6000n

Sommaire des Matières pour Oki C6000n

  • Page 2 English Section 1: Install the Printer Your printer set up will take about 15-20 minutes. Français Section 1 : Installez le fil d’alimentation La configuration de l'imprimante nécessite de 15 à 20 minutes. Español Sección 1: Instale la impresora La instalación de la impresora que consta tomará de 15-20 minutos. Português Seção 1: Instale a impressora A instalação da impressora demorará...

  • Page 3: Déballage

    English Unpack Remove the packing pieces and the protective bag. Note: Illustrations and components are representative only. Your unit may differ slightly from those pictured in this document. Français Déballage Retirez les matériaux d'emballage et le sac de protection. Remarque: Les illustrations et composants sont à...

  • Page 4: Vérifiez Les Composants

    English Check components A Printer D Power Cable B CD E LED lens cleaner C Light shield bag Manuals (not shown) Français Vérifiez les composants A Imprimante D Cordon d'alimentation B CD E Nettoyant pour lentilles C Sacs pare-lumière Guides (non illustrés) Español Verifique los componentes A Impresora...
  • Page 5 38 in. 981mm English • Lift the printer and place it on your selected location (space requirements are approximate). • Remove the packing materials and shipping tape. Français • Soulevez l'imprimante et placez-la à l'endroit désiré (les espace requis sont approximatives). •...

  • Page 6: Préparation Des Unités Tambours D'image/Toner

    Prepare the Image Drums/Toner Units • Press the release button and lift the top cover. • Remove the black image drum/toner unit (nearest the control panel). CAUTION! Keep unit upright to avoid spillage. Préparation des unités tambours d'image/toner • Appuyez sur le bouton de déverrouillage et ouvrez le capot supérieur. •...
  • Page 7 cont. suite cont. • Lower the cover to protect the remaining drums from light. CAUTION! Do not let the drum sit in room light for more than 5 minutes. • Fermez le capot pour protéger les autres tambours d'image contre la lumière. ATTENTION! N'exposez pas la cartouche de tambour d'impression à...
  • Page 8 cont. suite cont. Caution! Do not touch the image drum’s shiny green surface. Do not expose the drum to direct sunlight. • Remove the tabs and sheets. Attention! Ne touchez pas la surface verte glacée du tambour! N'exposez jamais la cartouche de tambour d'image à...
  • Page 9 cont. suite cont. • Open the cover and replace the black drum/toner unit, then push the lock lever toward the back of the printer as far as it will go. • Repeat these steps for each of the remaining drum/toner units. Important! If TONER SENSOR INDICTATOR ERROR appears when you turn on the printer, the lever for the toner cartridge color indicated is not pushed all the way back.

  • Page 10: Prepare The Fuser

    Prepare the Fuser • Press firmly on the blue lock (1) to release the orange transport restraint (2). • Pull the restraint out in the direction of the arrow (3). • Remove the orange instruction band (not shown). Préparation de l'unité de fusion •...
  • Page 11 cont. suite cont. • Close the top cover. • Fermez le capot supérieur. • Cierre la tapa superior. • Feche a tampa superior.

  • Page 12: Chargement Du Papier: Bac

    Load Paper: Tray 1 • Pull out the paper tray (1). • Carefully pull the shipping restraint down, and out (2). Important! Be sure you remove the entire piece, including both arms. Chargement du papier: Bac 1 • Sortez le bac à papier (1). •...
  • Page 13 cont. cont. suite suite cont. cont. • Load the paper (maximum 300 sheets 20-lb [75 g/m ] paper). • Make sure the paper guides are snug against the paper and are locked in place. Note: Do not fill above paper full indicator (1). •...

  • Page 14: Mise Sous Tension

    Cuidado! Não conecte este produto a um sistema de energia ininterrumpto (UPS - no-break). Para obter mais informações, entre em contato com a Oki Data pelo número 0800-11-55-77 ou viste www.okiprintingsolutions.com.
  • Page 15 Caution! Do not connect this product to an uninterruptible power supply (UPS). For more information, please contact Oki Data at 1-800-OKIDATA or www.okiprintingsolutions.com. • Plug the cable into a suitable grounded outlet. Do not connect other cables at this time.

  • Page 16: Impression D'une Page De Démonstration

    English Print the Demo Page 1. Press one or more times, until you see on the first line of the display. INFORMATION MENU 2. Press ENTER 3. Press one or more times, until you see on the first line of the display. DEMO1 4.

  • Page 17: Installation Du Guide De Référence Pratique

    English Install the Handy Reference Guide ® Remove the backing from the VELCRO strip on the back of the Handy Reference Guide and mount it on the side of the printer. Français Installation du Guide de référence pratique ® Retirez la pellicule de la bande Velcro au dos du Guide de référence pratique et apposer le Guide de référence pratique sur le côté...
  • Page 18 English Section 2: Make Connections and Install the Software Windows ® (including Vista) ➥ ® Network, go to “Windows Network Setup” on page 19. ➥ USB, go to “Windows USB Connection” on page 26. ➥ Setup Options, go to “Windows Setup Options” on page 28 ®...
  • Page 19 ® Windows Network Setup 1 Connect to a Network a. Turn the printer OFF. b. Remove the plastic cap from the LAN port (1). c. Connect the Ethernet cable between the printer and the Ethernet hub or router. Windows réseau Configurez 1 Connexion à...
  • Page 20 Windows Network Setup (cont.) 2 Print the Configuration Sheets a. Turn the Printer ON and wait for the print server status light (2) to stop blinking. b. Press the TEST button (3) on the print server to print the Network Information configuration sheets.

  • Page 21: Windows Réseau Configurez (Suite)

    Windows Network Setup (cont.) 3 Load the CD a. Insert the CD in the CD-ROM drive. The CD will autorun. If it doesn’t, click Start → → Browse. Browse to your CD-ROM drive, double-click Install.exe. Click OK. b. Select your language. c.

  • Page 22: Install The Driver

    Windows Network Setup (cont.) 4 Install the Driver a. Click Install Driver. b. Select network printer. c. Follow the on-screen instructions. d. When prompted, select printer emulation (PS or PCL). Note: You may be required to enter the IP address for the printer. The IP address can be found on the Configuration Sheet (see page 20).
  • Page 23 Windows Network Setup (cont.) 5 Test the Printer Driver Installation a. To make sure the printer driver is correctly installed, print a page from any program. b. Reinstall the driver if the installation failed. ➥ See pages 24 and 25 for optional Windows Network setup software. ➥...
  • Page 24 Windows Network Setup (cont.) 6 Network Setup Utility (Optional) This utility allows easy print server configuration, quick discovery, and IP address assignment. a. Select Optional Utilities from the menu bar. b. Click Install Network Quick Setup Utility. c. Follow the on-screen instructions. Note: If the Ethernet Address information does not appear, click Search.
  • Page 25 Windows Network Setup (cont.) 7 Using a Web Browser (Optional) Use your web browser to configure print server and printer menu settings on an embedded web page. Note: For more details, see the Network User’s Guide on the CD supplied. a.
  • Page 26 Windows USB Connection 1 Install the Driver Before connecting the USB cable to the printer. a. Turn the printer OFF. b. Insert the CD in the CD-ROM drive. The CD will autorun. → → If it doesn’t, click Start Browse. Browse to your CD-ROM drive, double-click Setup.
  • Page 27 Windows USB Connection (cont.) 2 Test the Printer Driver Installation To make sure the printer driver is correctly installed, print a page from any program. Reinstall the driver if the installation failed. ➥ See page 29 for additional printer setup options. Windows connexion USB (suite) 2 Test de l’installation du ligiciel Pour vérifier que le logiciel est correctement installé, Imprimiez une page à...
  • Page 28 Windows Setup Options 1 Install/View Documentation Note: To open the on-line manuals, you must have Adobe ® Acrobat ® Reader 3.0 or higher installed. a. Select Driver Setup from the CD installer menu bar. b. Click Install User’s Guide. c. Follow the on-screen instructions to complete the installation. d.
  • Page 29 Windows Setup Options (cont.) 2 Install Utilities and Downloads Note: You must be connected to the internet to download utilities. a. Select Optional Utilities or Internet Downloads from the CD installer menu bar. b. Click the utilities and downloads you want to install and follow the instructions. Étapes Optionnelle pour Windows (suite) 2 Installer les utilitaires et les téléchargements Remarque:...
  • Page 30 Windows Setup Options (cont.) 3 Change the Display Language Use this utility to select an alternative language for the printer display panel. a. Select Optional Utilities from the CD installer menu bar. b. Click Change the Printer Display Language. c. Follow the on-screen instructions. Étapes Optionnelle pour Windows (suite) 3 Changer la langue d'affichage Utilisez cet utilitaire pour choisir une langue différente pour l'affichage de l'imprimante.
  • Page 31 Windows Setup Options (cont.) 4 Activate Optional Accessories Note: If your printer has an optional second paper tray or Hard Disk Drive installed, you must enter the driver and activate it. a. Click Start → Settings → Printers (and Faxes) on the Windows taskbar. b.
  • Page 32 Macintosh 1 Connect USB cable Note: Printer operation is not assured if another USB compatible device is connected concurrently with it. a. Turn the printer OFF. b. Connect the USB cable to the USB port on the computer, then to the USB port ( ) on the printer.

  • Page 33: Instalação Do Driver

    Ligue a impressora. Em seguida, ligue o computador. b. Insira o CD do Driver na unidade de CD-ROM. c. Clique duas vezes no icone do CD da OKI exibido no área de trabalho. d. Clique duas vezes no ícone do MAC. (OSX ou OX9).

  • Page 34: Add The Printer

    Click More Printers. c. Select OKI USB, OKI TCP/IP, or Rendezvous/Bonjour from the drop-down menu. Note: If you are using USB, select OKI USB and disregard step 4. d. Enter the printer’s IP address. e. Select the printer model. Click Add.
  • Page 35 Macintosh (cont.) 4 Install the Documentation Note: Adobe ® Acrobat ® Reader 3.0 or higher is required to view the manuals. a. Insert the CD into your CD-ROM drive. b. Double-click the CD icon which appears on the desktop. c. Scroll to the C6100n_UG_ae.pdf file in the root directory. - To load it: drag the pdf file to the desktop.

  • Page 36: Service And Support

    • Ligue para 0800-11-55-77. OKI, OkiLAN ® Oki Electric Industry Company, Ltd. Microsoft, Windows, Internet Explorer ®/™ Microsoft Corporation in the United States and other countries. Netscape, Netscape Navigator U.S. ™, Netscape Communications Corporation. Novell, NetWare ® Novell Corporation in the U.S. and other countries.
