1.

INSTALLATION RECOMMENDATIONS

Installation of the filter assembly below the water level of the pool is highly recommended. In the event that
the filter is installed above the pool water level, a check valve, accessible through a service hatch, must
be installed on the suction line.
Allow a surface area of 1200 mm x 1200 mm for the installation.
Position the control panel as close as possible to the multiport valve to facilitate manipulations.
To prevent vibrations, and any resonance effect, insert a sheet of soft rubber between the base of the
pump and the ground.

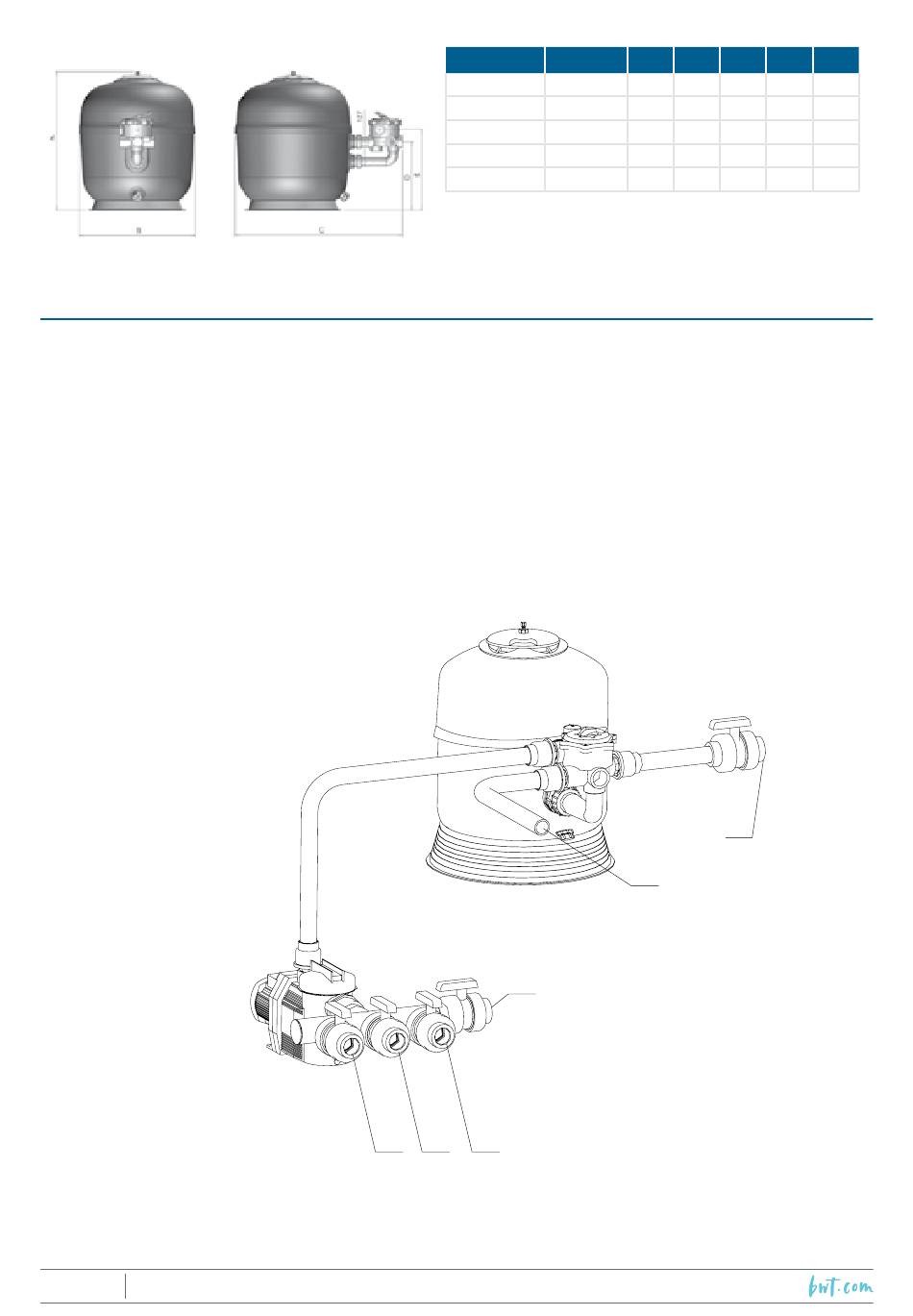

1.1

Standard installation

A-B : Skimmers
C : Main drain
D : Vacuum point
E : Return fitting
F : Waste line
16/36
2021/01 - Indice de révision : I - Code : 26680
Filter
Ø 500-20"
Ø 610 A-24"
Ø 610 B-24"
Ø 760-30"
Ø 920-36"
D
B C
A
Valves A B
1" 1/2 802 503
1" 1/2 840 612
2" 840 612
2" 985 762 1083
2" 1111 923 1245
E
CONSTRUCTION & RÉNOVATION
C D E
800 417 476
915 418 477
930 418 493
495 576
557 638
F
