Scope of supply:
1 x right safety bar
1 x left safety bar
2 x clamps
2 x distance bushings
2 x M8x30 AH screws
2 x M8x60 AH screws
2 x M8x70 AH screws
6 x M8 washers
2 x M6x45 AH screws
2 x self-locking M6 nuts
4 x M6 washers
1 x edge protection
Partially screw in all of the screws. Do not tighten until all screws are
partially screwed in.

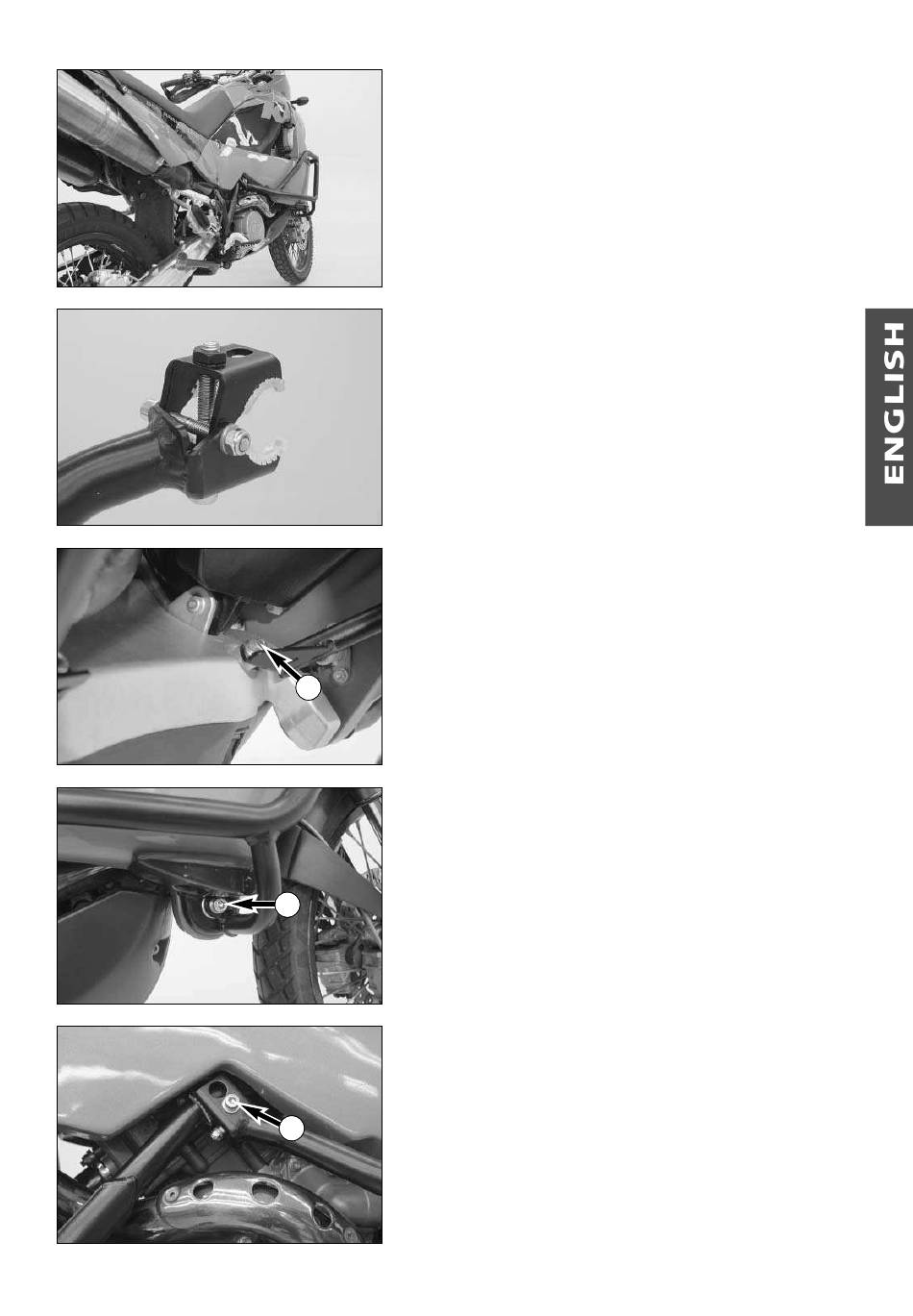

Assembly:
First glue the edge protection included in the scope of supply on the
clamping edges.
Slide the loose clamping in the counterpiece on the bar and screw the
clampings together with the M6x45 screw, the M6 nut and two washers,
making sure the clamping can still be moved by hand. Remove the screw
connections on the lower front tank bracket and on the side front tank.
Slide the clamping over the back of the frame. Place the bushings included
in the scope of supply on the lower front of the tank bracket and screw the
front of the bar through the bushings using the M8x30 AH screws and one
1
washer
1
Screw the bar on the side of the tank using the M8x70 AH screws and one
2
washer
2
Clamp the rear of the bar on the frame
3
NOTE:
Check the clamping on the frame regularly, otherwise the frame
may be damaged.
each.
each.
3
using the M8x60 AH screws.
3
