ELECTRICAL CONNECTIONS

WARNING: To avoid possible electric shock, be sure you have turned off the power at
the main circuit panel.
NOTE: Code switch: Codes are set by pushing dip switches up or down. It is
imperative that the code used for both transmitter and receiver is the same, otherwise
remote control will not work. Please note the code switch will enable you to operate a
second remote controller independently. For example, if you have two ceiling fans with
two remote control units, set different codes for each set of transmitter/receiver. This
will enable you to operate each ceiling fan independently (Fig. 11).
If this switch is set to the X position it will disable the dimming function of your fixture.
NOTE: Please recheck to make sure the switches on transmitter and receiver are set
to the same position. Any combination of settings will operate the fan as long as the
transmitter and receiver are set to the same position (Fig 12).
Step 1. Insert the receiver into the ceiling mounting bracket with the flat side of the
receiver facing the ceiling (Fig 12). For best performance, make sure the black antenna
on the end of the receiver remains extended and not tangled with any of the electrical
wires.

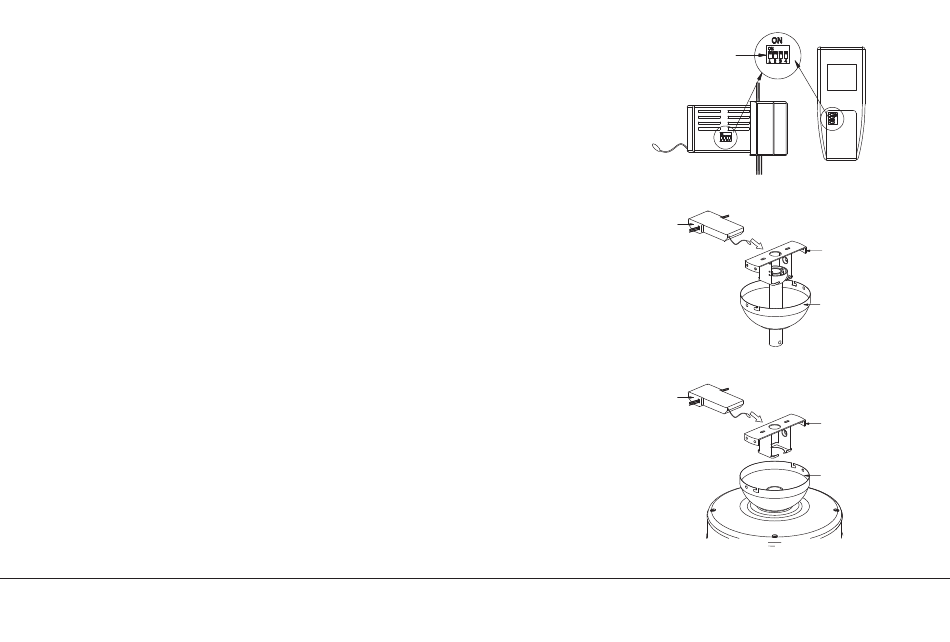

Dip switch
Fig. 11
Receiver
Fig. 12
Receiver
Fig. 13
