Battery-Module Replacement
Safety recommendations
The battery can cause electrocution and high short-circuit currents. The following safety cautions are required
before servicing the battery components:
◗
Remove watches, rings, bracelets and all other metal objects from the hands and arms.
◗
Use tools with an insulated handle.
Battery-module removal
R R T m odel
5 — 2

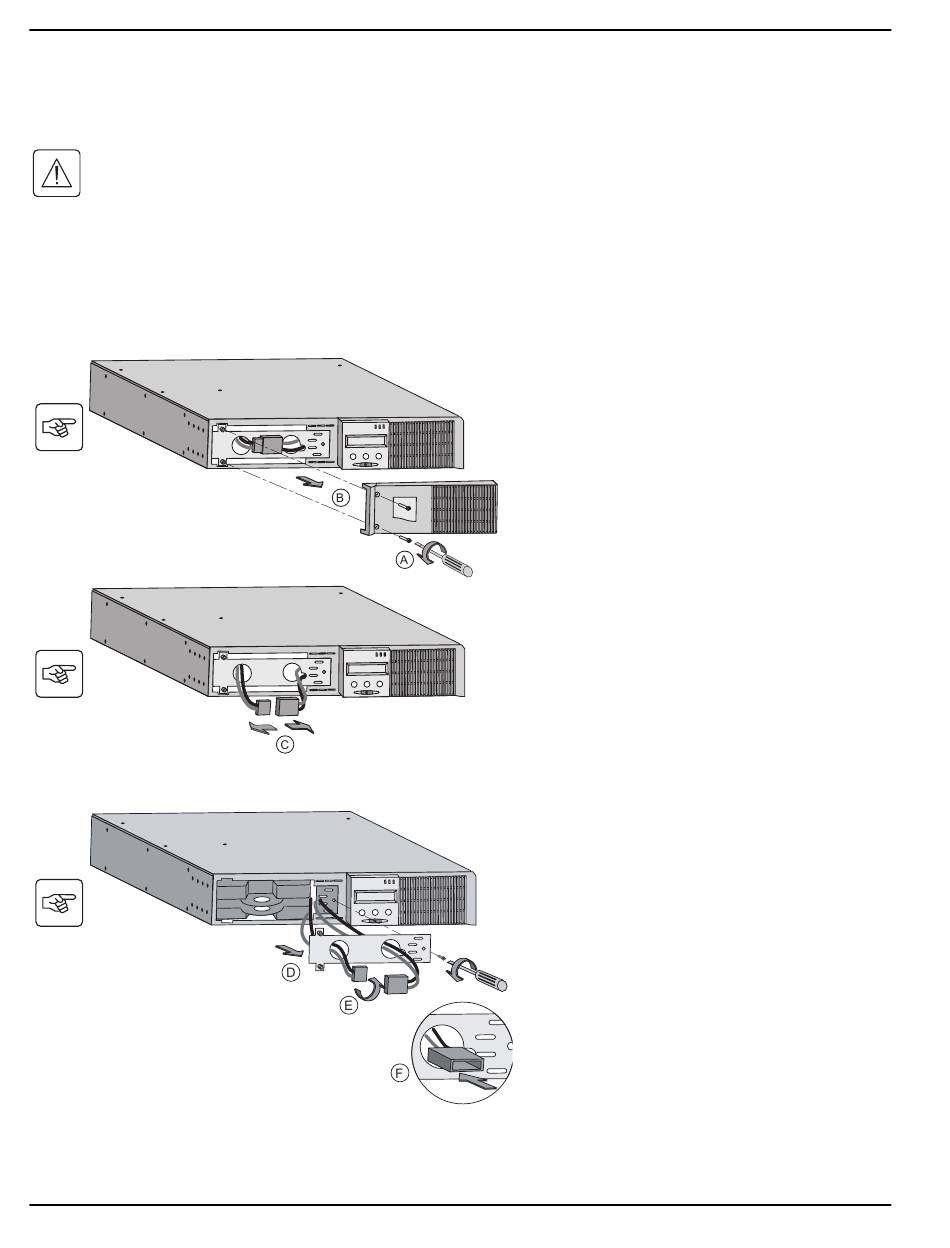

A Unscrew the left-hand side of the front panel (two
screws).
B Remove the part.
C Disconnect the battery block by separating the
two connectors (never pull on the wires).
D Remove the metal protection cover in front of the
battery (two screws).
E Turn the connector.
F Pass the connector through the hole.
