Connections

Turn off this unit and disconnect the power cord from the power outlet
before connecting components or changing the connections.
Connect the power cord to a power outlet after all the connections are
completed.
Be sure to use the power cord, USB cable, and LAN cable included with
this product.
Refer to the operating instructions for the components to be connected.

Connecting to the input/output terminals

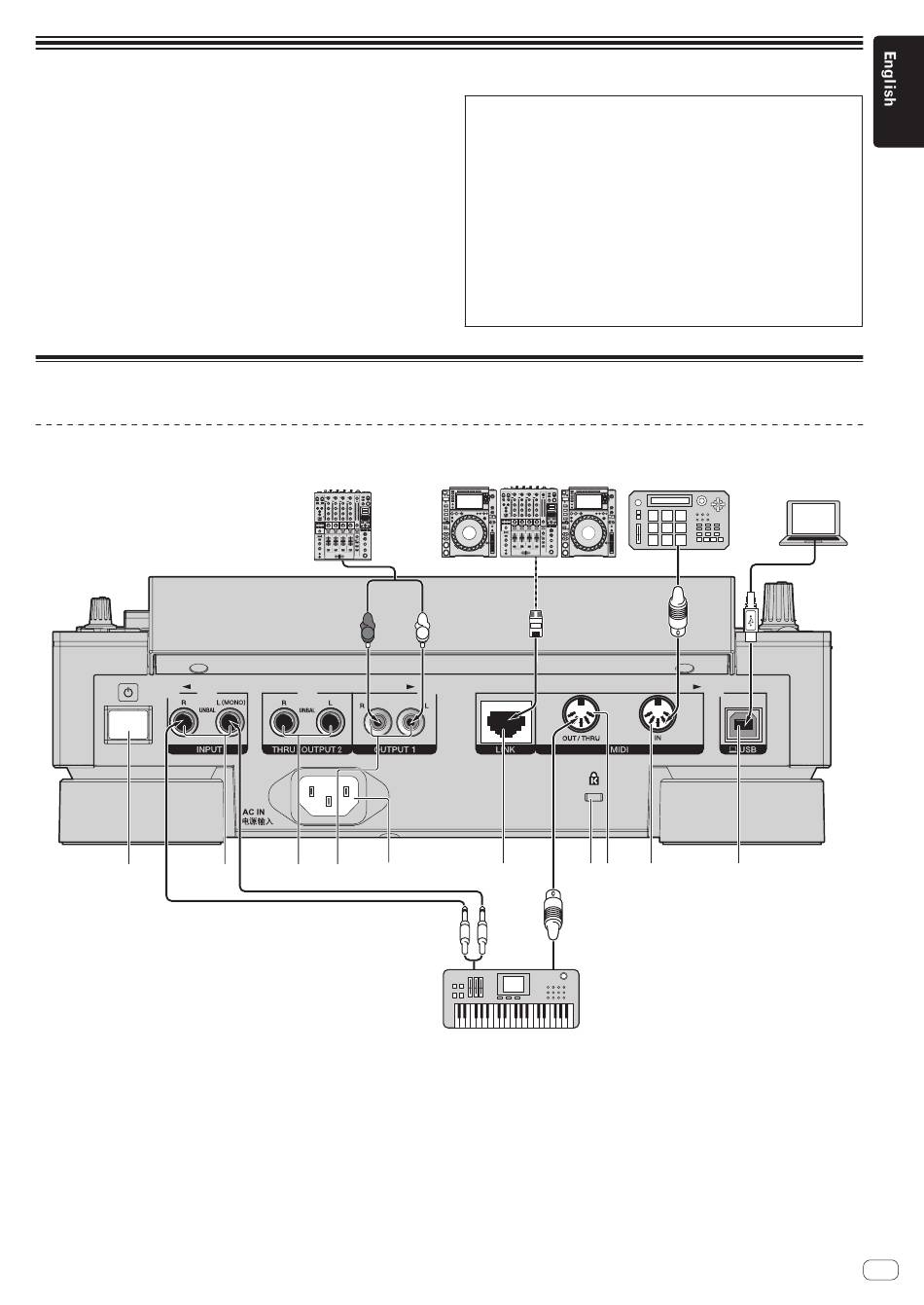

Rear panel

1
1 u switch
2 INPUT terminals
3 THRU/OUTPUT2 terminals
4 OUTPUT1 terminals
5 AC IN
6 LINK terminal
DJ Mixer
R
2 3 4 5
! When using a LAN cable to connect the components, be sure to
use either the LAN cable included with this product or an STP
(shielded twisted pair) cable.
! Do not disconnect the LAN cable when information is being
shared with PRO DJ LINK.
! A switching hub (commercially available) may be necessary
depending on the models to be combined. Use a switching hub
of 100 Mbps or greater. Correct operation may not be possible
depending on the switching hub.
! A switching hub (commercially available) is necessary when con-
necting with a mixer that has only one LAN port. In the case of a
mixer with enough LAN ports for all the DJ players and computers
in the system, connect directly to a LAN port on the mixer's rear
panel without using a hub.
PRO DJ LINK compatible DJ system
L
6 7
Synthesizer, etc.
7 Kensington security slot
8 MIDI OUT/THRU terminal
9 MIDI IN terminal
a USB-B terminal
External sequencer, etc.
8 9 a
Computer
9
