EN 48
8.12 Replacing the tool magazine
inserts
When tool magazine inserts are worn, they should be
replaced. New inserts are delivered without holes for
the tools. The holes must be drilled into the inserts
with the machine.
Your machine comes with tool magazine inserts as
n
spare parts and with the drill tool.
Additional inserts and drill tools are available via
n
customer service.
The documentation for the manufacturing soft-
ware contains step-by-step instructions for
drilling the holes into the inserts. Below you
find a description of how to replace the tool
magazine insert in the machine.
You can replace tool magazine inserts as follows:
1. Have the spare tool magazine inserts readily avail-
able.
2. Open the working chamber door.
3. Remove all tools from the tool magazine.

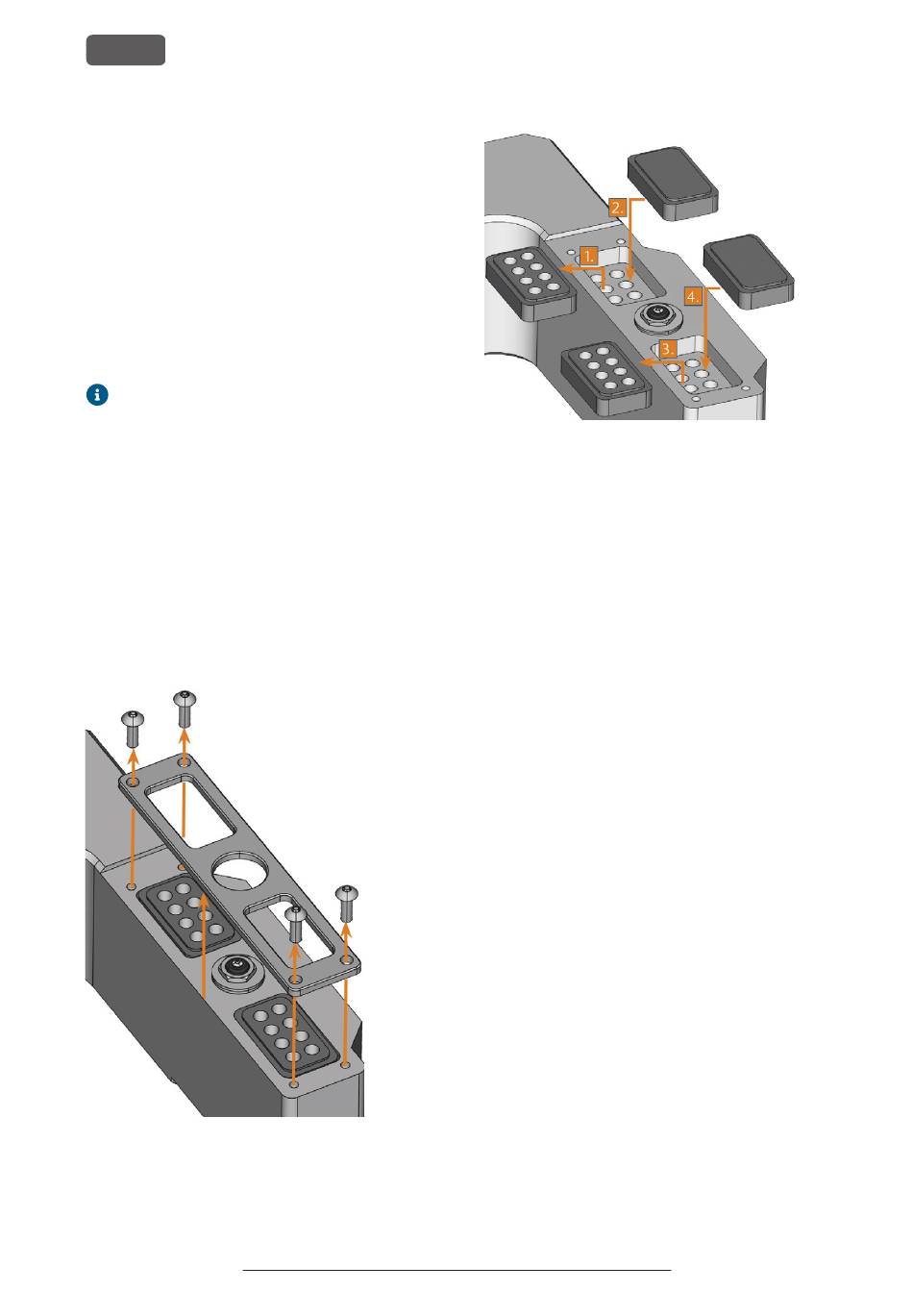

4. Unscrew the 4 screws on the upper side of the tool
magazine and lift the cover.
F . 66 U
IG NSCREWING THE SCREWS AND LIFTING THE COVER
5. Remove the 2 existing tool magazine inserts and
replace them with 2 new ones.
F
IG
POSITIONS
Original Operating Instructions: K5+
Version: 12/16/2021
K5+ – Maintenance and do-it-yourself
. 67 N
EW TOOL MAGAZINE INSERTS
) (
REPLACE OLD INSERTS LEFT
6. Put the cover back onto the tool magazine and
screw it down.
7. Follow the instructions in the documentation for
DENTALCNC and drill the tool positions using the
provided drill bit.
( ,
RIGHT WITHOUT TOOL
, )
WITH TOOL POSITIONS
