Plumbing

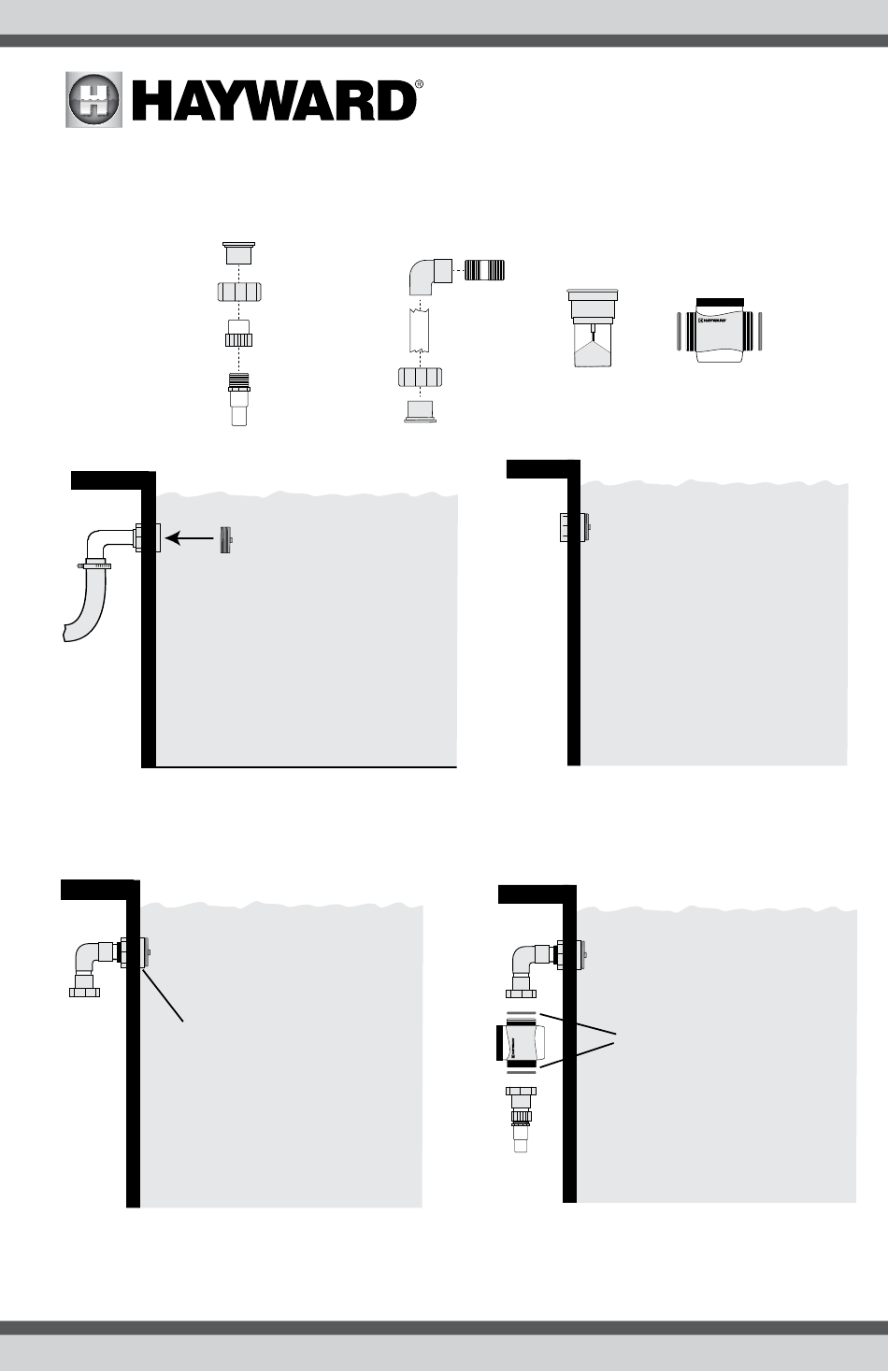

The Cell is designed to install in the return jet fitting on the pool wall using the supplied parts. Refer
to the following instructions.
Hose Pipe
Assembly
Return Jet
Pipe from
Filter
1. Install plug in return jet to prevent water
flow.
Use plumber's tape
when installing
elbow assembly
3. Screw the Elbow Assembly into the
return jet using plumber's tape on the
threads.
4
USE ONLY HAYWARD GENUINE REPLACEMENT PARTS
Elbow
Assembly
Install Plug
not
supplied
Cell
2. Drain water from pool piping. Remove
flex pipe and fitting from the return
jet.
4. Using the supplied gaskets, attach the
Cell Vessel to the Elbow Assembly and
Hose Pipe Assembly. Do not tighten.
Cell Vessel &
Gaskets
Gaskets
