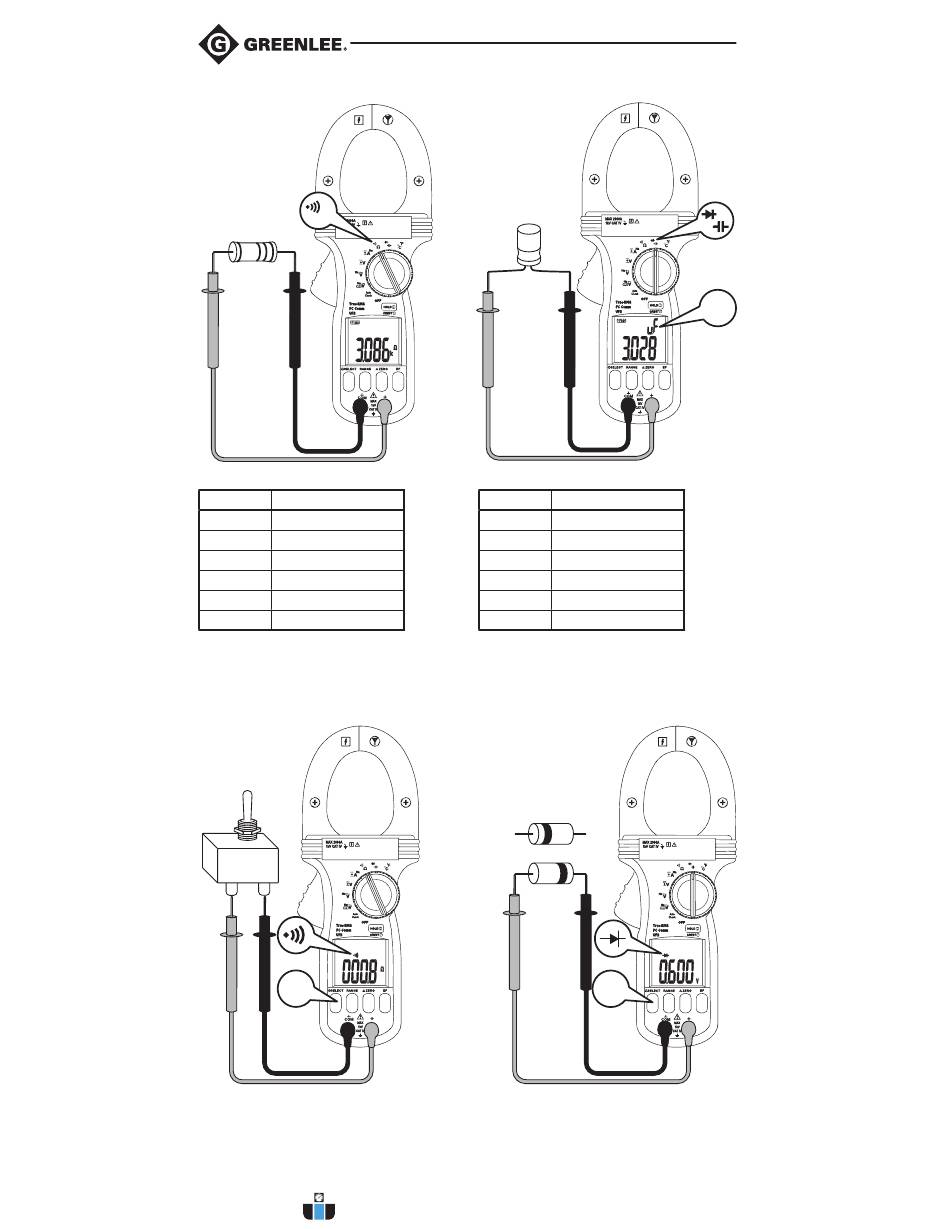

Typical Measurements and Accuracy (cont'd)
Resistance
Measurement
Ω
Resistance
Range Accuracy
600.0 Ω ± (0.5% + 0.5 Ω)
6.000 kΩ ± (0.5% + 0.005 kΩ)
60.00 kΩ ± (0.5% + 0.05 kΩ)
600.0 kΩ ± (0.8% + 0.5 kΩ)
6.000 MΩ ± (1.2% + 0.005 MΩ)
40.00 MΩ* ± (2.3% + 0.05 MΩ)
* AutoCheck™ maximum range of
10.00 MΩ.
Open Circuit Voltage (typical): 0.45 VDC
Continuity
Check
SELECT
Continuity
Tone Threshold: Between 10 Ω and 200 Ω
Response Time: Approximately 32 ms
14
www.calcert.com
15
10 20
5 25
0 30
Capacitance
Measurement
Capacitance
Range Accuracy*
60.00 nF ± (2.0% + 0.05 nF)
600.0 nF ±( 2.0% + 0.5 nF)
6.000 μF ± (2.0% + 0.005 μF)
60.00 μF ± (3.5% + 0.05 μF)
600.0 μF ± (3.5% + 0.5 μF)
2000 μF ± (4.0% + 5 μF)
* For film capacitors (capacitors with
negligible dielectric absorption).
Diode
Measurement
Reverse Bias
Forward Bias
SELECT
Diode Test
Measuring Range: 1.000 V
Accuracy: ± (1.0% + 0.003 V)
Test Current (typical): 0.56 mA
Open Circuit Voltage (typical): < 1.8 VDC
μF
or
nF
