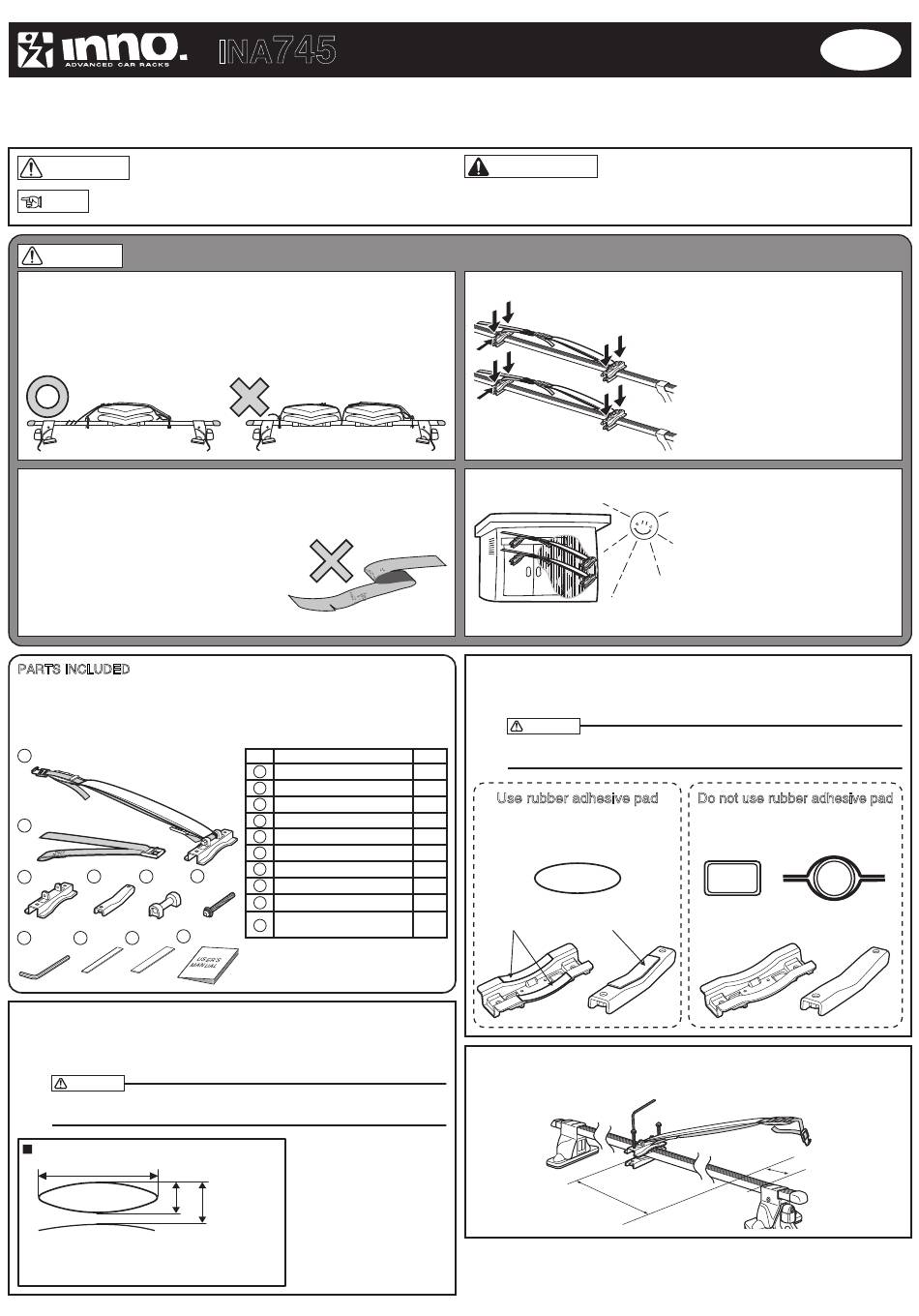

INNO INA745 Instructions D'utilisation

The following Installation Instructions explain how to mount and use the INNO system carrier attachment system designed for
loading 3 surf boards or 2 long boards. After reading this manual, keep it in a safe place along with the installation instructions
for attachment systems. If you have any questions regarding this manual, please contact us listed at the end.
Failing to observe these cautions may lead to accidents
CAUTION
that may cause death or serious injur.
These notes explain points that you should know about
Note
when using the roof box.
CAUTION
Types of board and maximum loading capacity.
This is a dedicated attachment for loading 1 to 3 short board(s) or 1 to 2
long/sail board(s). Maximum loading capacity varies with each vehicle
type. Check applicable setting for your car on Application Table by
Vehicle Type. Do not load objects other than surf board or sail board.
Follow illustrations below when loading boards.
1 to 3 boards
in single row
Belt is a consumable part. Before each use, be sure to check front and
back of belt. If following conditions are observed, immediately stop use
and replace with new part (genuine repair part). Failure to do so may
cause belt to tear while driving, resulting in fallen boards.
1. Belt surface is fuzzy or damaged.
2. Color of belt is partially faded.
3. Thread is frayed or cut.
4. Part is damaged, deformed or rusted
or missing.
5. Exhibits traces of heat or chemical damage.

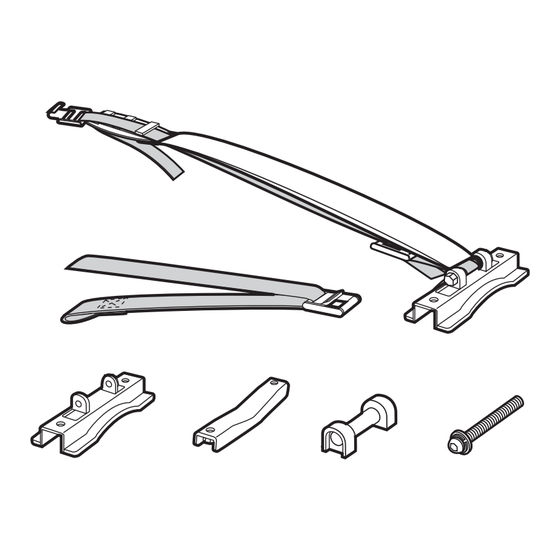

PARTS INCLUDED
Verify that all of these parts, components and items are included in the
carrier system you have purchased. In the event any of these parts,
components or items is missing, contact us as listed at the end of this
manual.
1
2
4 5
3
10
7 8 9
1
This product will fit square, round & most factory crossbars.*1
If you do not have factory crossbars, mount the carrier stays and
bars according to the procedures described in the Basic Carrier
System Installation Instructions.
CAUTION
The clearance between the front and rear carriers should be in the
range of 20 inch (50 cm) or more.
MAXIMUM CROSSBAR SIZE
~3.5"(90mm)
H
H: ~1.2" (30mm) [Without option]
1.2"~2.0" (30~50mm) [Needs ISF714]
T: Distance to Roof : Min2.0" (50mm)
US
745
INA
Side by side
No. Part
1 Crane assembly
Belt (With buckle)
2
Belt holder
3
4 Lower plate
5 Spacer
Hex bolt
6
Hex wrench
7
6
Rubber adhesive pad (S)
8
Rubber adhesive pad (L)
9
Installation Instructions
10
(user's manual)
*1: Round bars require
ISF715 adapter
(sold separately)
Some factory
T
crossbars require
ISF714 long bolt kit
(sold separately)
CRANE FLOATER
Universal Board Carrier
ATTENTION
2
Affix the rubber adhesive pad if rack is placed on
oval bar. Do not use rubber adhesive pad if rack is placed on square
or round cross bar. Refer the figures below.
CAUTION
If you miss use the rubber adhesive pad, rack may slide and the
Qty loaded board(s) may fall off.
2
2
Use rubber adhesive pad
2
4
Factory crossbar
2
or Oval bar
10
1
8
4
Rubber
adhesive pad (S)
1
3
Install crane with hex bolt using hex wrench at position appropriate
for board width.
Board width
- 1 -
Installation
Instructions
Failing to observe these attentions may lead to
injuries, or damage to the roof box, vehicle, and
surrounding objects.
Before driving the vehicle, rock
the attachment in the forward,
back, right and left directions to
ensure that there is no looseness
in any of the 10 Hex bolts.
Belt deteriorates if exposed to UV
rays.
When not in use, always remove
belt and store it away from direct
sunlight.
Do not use rubber adhesive pad
Square bar
Rubber
Do not use rubber adhesive pad
adhesive pad (L)
Hex wrench
5474-71228
US
factory crossbar or
Round bar
(With round bar adapter
[sold separately])
2.4 inch (6 cm)
or more
