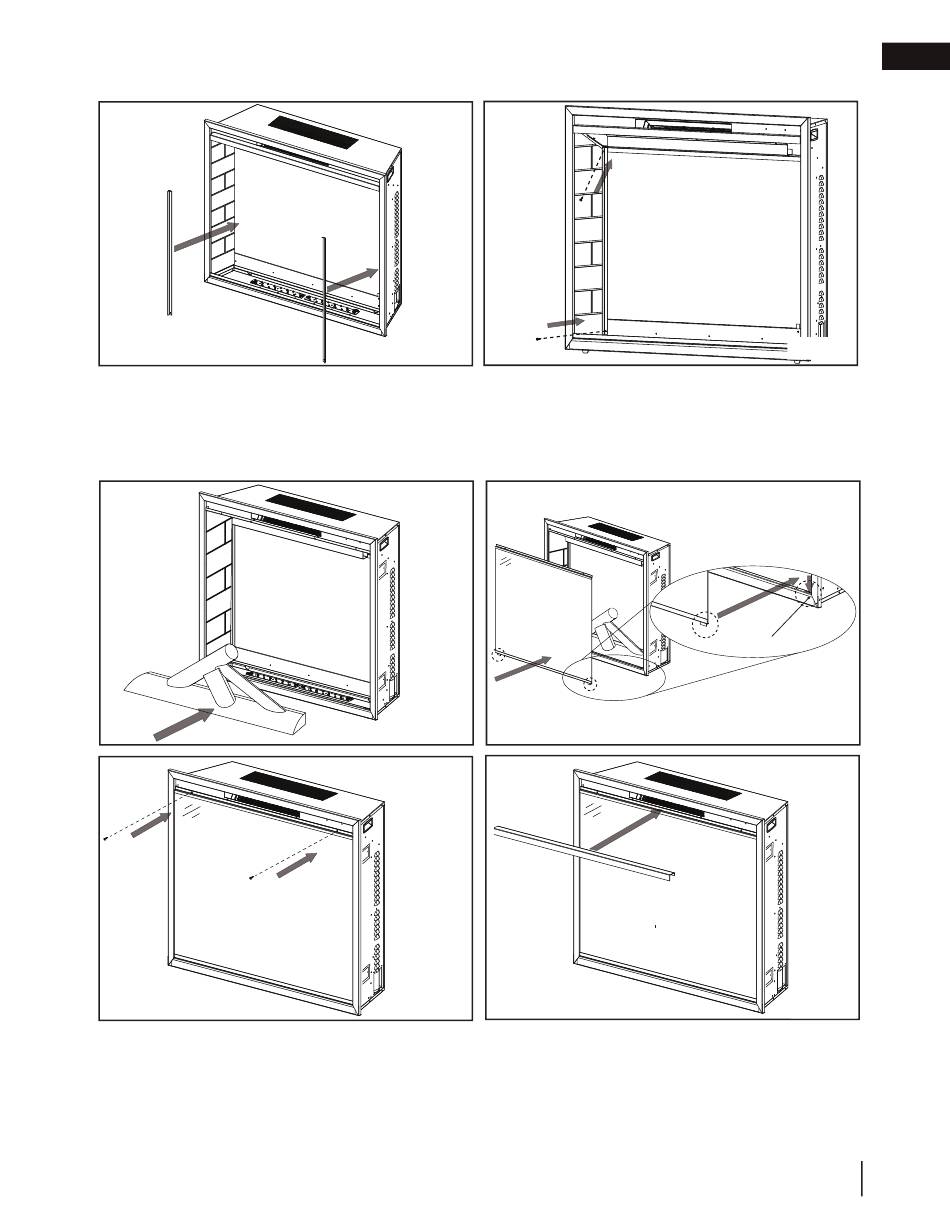

10. Re-install the 2 back retainers by re-installing the 4 screws previously removed in step 8 (Fig. 3-10 and 3-11).
11. Re-install the log set without reinstalling the 4 screws removed in step 4 (Fig. 3-12).
12. Re-install the glass door (Fig. 3-13 and 3-14).
13. Re-install the front decorative cover held in place by 2 magnets (Fig. 3-15).
installation and fi nishing
Repeat on
opposite
side.
Fig. 3-10
Framing
hidden for
clarity.
Fig. 3-12
Framing
hidden for
clarity.
Fig. 3-14
EN
Fig. 3-11
Slot
Fig. 3-13
Framing
hidden for
clarity.
Fig. 3-15
