INSTALLATION

PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING
Calculation before Installation

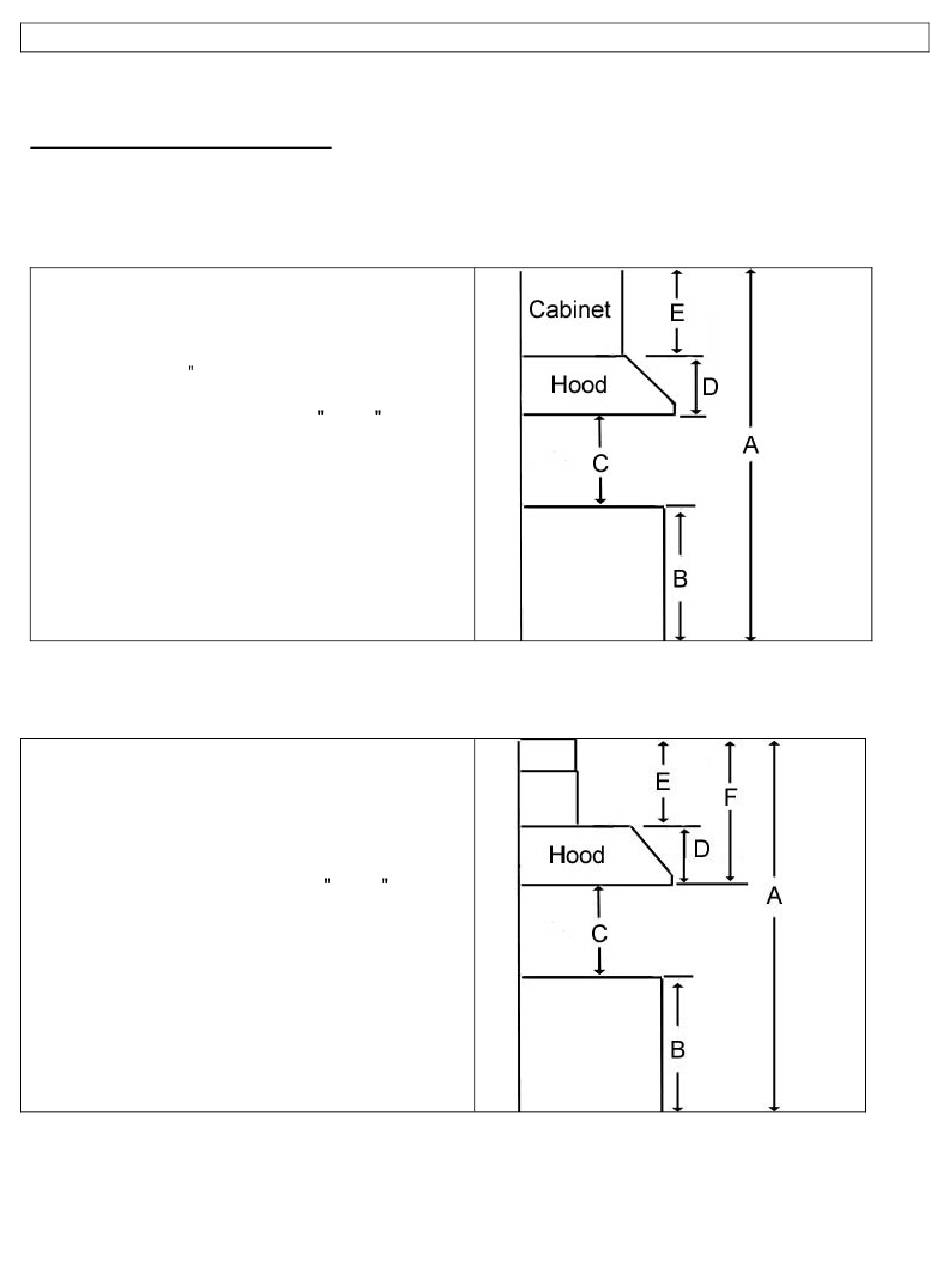

To calculate installation, please refer to TABLE 1 or TABLE 2. (All calculation in inches.)
TABLE 1
A = Height of Floor to Ceiling
B = Height of Floor to Counter Top
(Standard: 36 )
C = Preferred Height of Counter Top to Hood
Bottom (Recommended 27 to 30 )
D = Height of Hood
E = Height of the Cabinet
- FOR STAND ALONE (WITH OPTIONAL DUCT COVER) -
TABLE 2
A = Height of Floor to Ceiling
B = Height of Floor to Counter Top
36")
C = Preferred Height of Counter Top to Hood
Bottom (Recommended 27 to 30 )
D = Height of Hood
E = Height of Duct Cover [F – D]
F = Height of the Hood Installation
[A – (B+C)]
- FOR UNDER THE CABINET -
(Standard:
