PEDAL ASSISTANCE SYSTEM

How does it work?

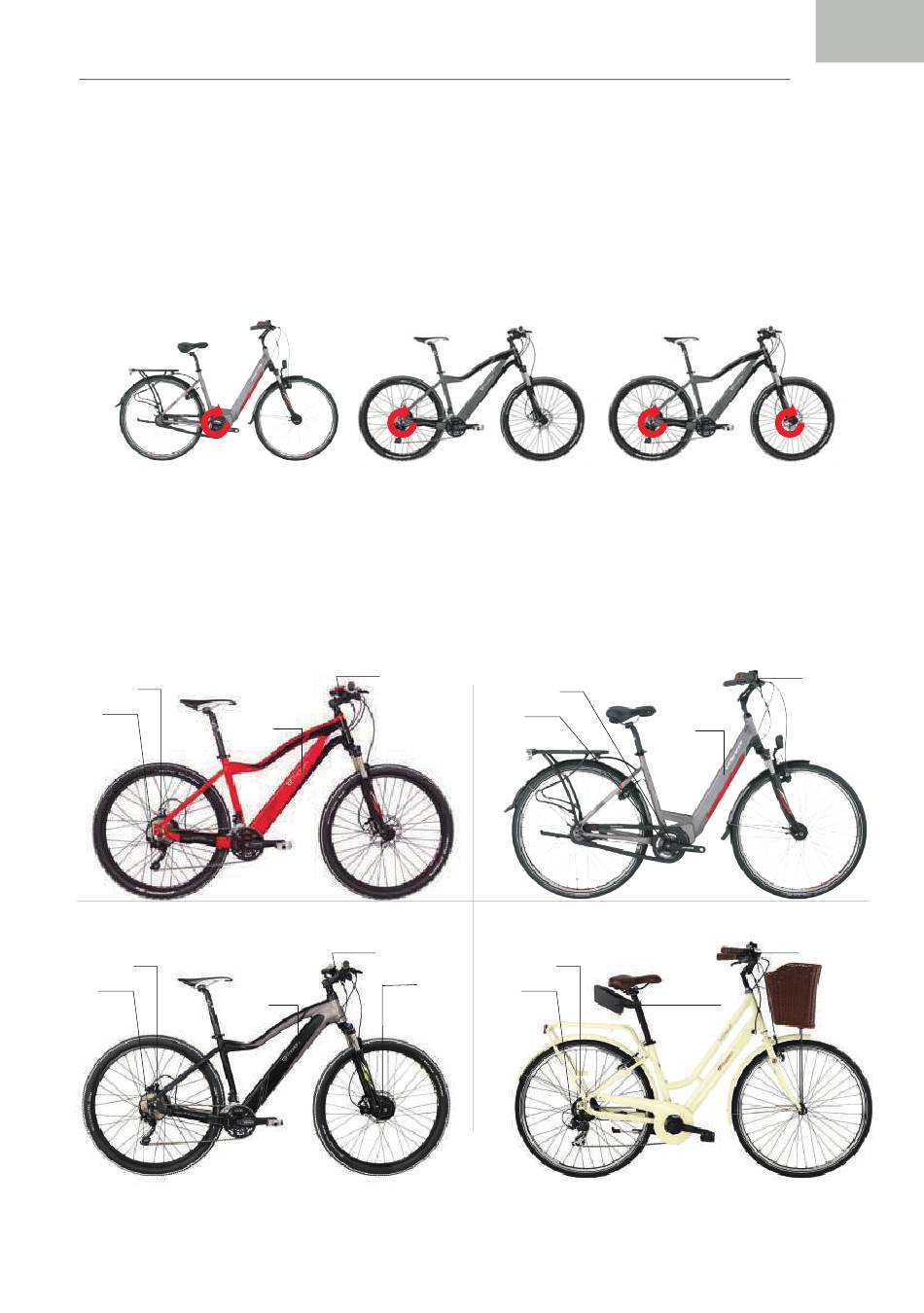

The BH EMOTION pedal assistance system comprises the following elements:
A. A motor, which drives the bike. The location of the motor describes the system of the e-bike:
o FDS (Front Drive System). Motor located in the front hub.
o IBS (Integrated Bottom bracket System). Motor integrated in the bottom bracket.
o AWD
(All wheel Drive System). Two motors located in t
IBS
B. A display panel, which allows, amongst other things, the selection of assistance levels.
C. A battery, which provides power for the motor's operation. It can be located in different places.
D. A torque sensor, which reads the force applied on the pedal by the user.
E. A control unit, which performs as the system's brain by receiving and sending signals to other elements.
