Fig. 14
Outlet box
Ceiling
mounting
bracket
Screw
Fig. 15

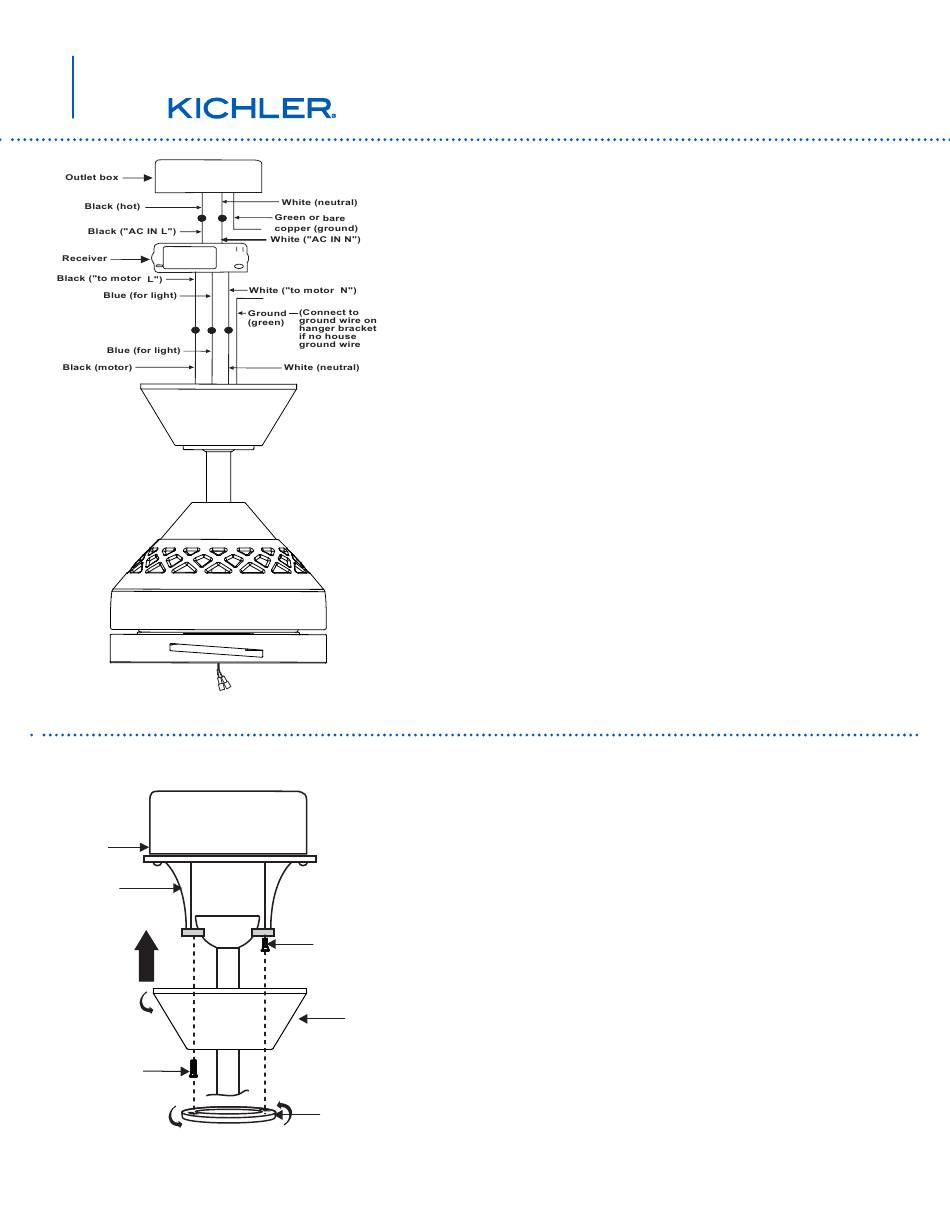

Step 2. Motor to Receiver Electrical connections (Fig.14).
Connect the black wire from the fan to the black wire marked "TO
MOTOR L" on the receiver.
Connect the white wire from the fan to the white wire marked "TO
MOTOR N" from the receiver. Connect the blue wire from the fan
to the blue wire marked "FOR LIGHT" from receiver. Secure all
the wire connections with the plastic wire nuts provided.
Step 3. Receiver to House Supply Wires Electrical Connections:
Connect the black (hot) wire from the ceiling to the black wire
marked "AC in L" from the receiver. Connect the white (neutral)
wire from the ceiling to the white wire marked "AC in N" from the
Receiver. Secure the wire connections with the plastic wire nuts
provided. (Fig. 14)
Step 4. If your outlet box has a ground wire (green or bare
copper) connect it to the fan ground wires; otherwise connect the
hanging bracket ground wire to the mounting bracket. Secure the
wire connection with a plastic nut provided. After connecting the
wires, spread them apart so that the green and white wires are
on one side of the outlet box and black and blue wires are on the
other side. Carefully tuck the wire connections up into the outlet
box. (Fig.14)
NOTE:
Fan must be installed at a maximum distance of 30 feet
from the wall transmitter for optimal signal transmission between
the transmitter and the fan's receiver unit.

8. FINISHING THE INSTALLATION

Step 1. Tuck all the connections neatly into the ceiling outlet box.
Step 2. Slide the canopy up to the mounting bracket and
place one of the key hole slots over the mounting screw on the
mounting bracket. Rotate the canopy until the screw head locks
in place at the narrow section of the key hole. (Fig.15)
Step 3. Align the remaining circular hole on the canopy with
Screw
the remaining hole on the Ceiling Mounting Bracket. Insert
and tighten the mounting screw you removed earlier and the
mounting screw from step 2 above. Now, attach the canopy
Canopy
cover to the mounting screw heads by inserting the screw heads
into the bottom side of the canopy cover and rotating the cover
clockwise.
Canopy
NOTE
: Adjust the canopy screws as necessary until the canopy
cover
and canopy cover are snug.
