„ Secure the electrical wiring with cable ties as shown
in the figure in 10.2 .
„ Make sure no external pressure is applied to the
terminal connectors.
„ When installing the earth leakage circuit breaker make
sure that it is compatible with the inverter (resistant to
high frequency electrical noise ) to avoid unnecessary
opening ofthe earth leakage circuit breaker.
„ As this unit is equipped with an inverter, installing a
phase advancing capacitor not only will deteriorate
power factor improvement effect, but also may cause
capacitor abnormal heating accident due to high-
frequency waves. Therefore, never install a phase
advancing capacitor.
CAUTION
Be sure to install the required fuses or circuit
breakers.

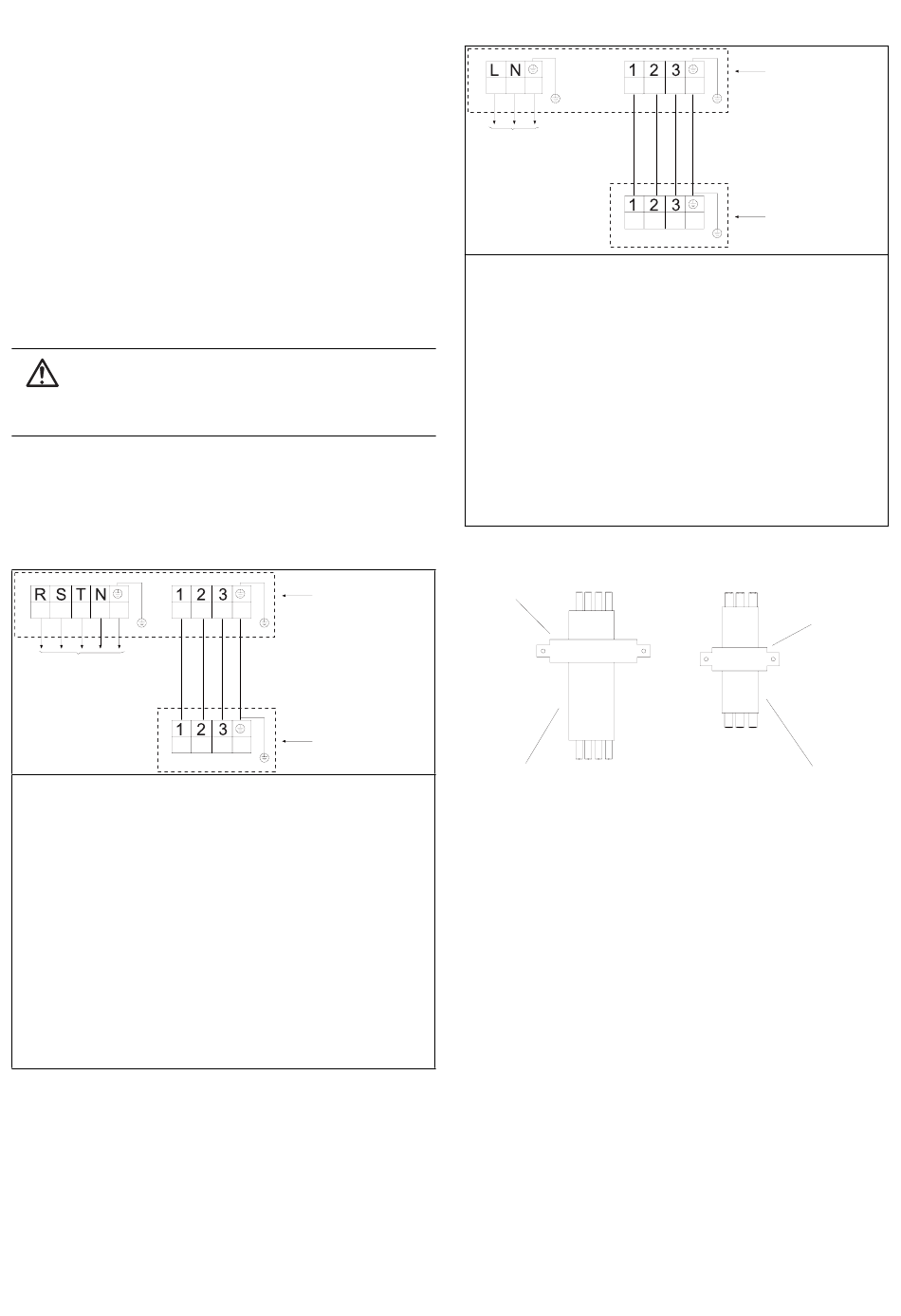

10.2. Connecting power supply and inter-
unit wiring
„ Connect and fix the power supply cable, indoor-
outdoor connection cable as following:
Power supply:
380-415V,3N~,
50/60Hz
For three phase power supply models:1U125S2SN1FB,
1U140S2SP1FB,
Power supply cable:
For 1U125S2SN1FB/1U140S2SP1FB H05RN-F 5G
2
2.5mm ,
Indoor and outdoor connection cable:
2
H05RN-F 4G 2.5mm £n-
unit connection cable length L satisfied condition
40m< L<55m, please change the connection cables
specification to H07RN-F 4G 4.0mm
and outdoor unit connection cable length L satisfied
condition 55m1 L1 75m, please change the connection
cables specification to H07RN-F 4G 6.0mm
Outdoor unit
terminal blocks
Indoor unit
terminal blocks
1
Note Ifthe indoor and outdoor
£"
2
. If the indoor
2
£'
Power supply:
1PH,220-240V~,
50/60Hz
For single phase power supply models:
1U105S2SS1FA,
Power supply cable: H05RN-F 3G 4.0mm
1U125S2SN1FA,1U140S2SP1FA
Power supply cable: H05RN-F 3G 6.0mm
Indoor and outdoor connection cable: H05RN-F 4G 2.5mm
1
£n- Note£" If the indoor and outdoor
unt connection cable length L satisfied condition
40m< L<55m, please change the connection cables
specification to H07RN-F 4G 4.0mm
and outdoor unit connection cable length L satisfied
condition 55m, L, 75m, please change the connection
cables specification to H07RN-F 4G 6.0mm
„ Fix the cable with the clip to prevent slide.
Clip
Outdoor-indoor unit
connection cable
„ Secure the cable to the stop valve attachment plate
so that it does not slide.
„ When cables are routed from the unit, a protection
sleeve for the conduits (PG-insertions) can be
inserted at the knock-out hole.
„ When you do not use a wire conduit, be sure to
protect the wires with vinyl tubes to revent the edge of
the knock-out hole from cutting the wires.
„ Follow the electric wiring diagram for electrical wiring
works.
20
Outdoor unit
terminal blocks
1U105S2SS1FA
1U125S2SN1FA
1U140S2SP1FA
Indoor unit
terminal blocks
2
2
2
. If the indoor
2
£'
Clip
Power supply cable
2
