7.0 ELECTRICAL INFORMATION

EN
DO NOT USE THIS APPLIANCE IF ANY PART HAS BEEN UNDER WATER. CALL A QUALIFIED
SERVICE TECHNICIAN IMMEDIATELY TO HAVE THE APPLIANCE INSPECTED FOR DAMAGE TO THE
RISK OF ELECTRICAL SHOCK OR EXPLOSION. DO NOT WIRE 110V TO THE VALVE OR TO THE
APPLIANCE WALL SWITCH. INCORRECT WIRING WILL DAMAGE CONTROLS.
ALL WIRING SHOULD BE DONE BY A QUALIFIED ELECTRICIAN AND SHALL BE IN COMPLIANCE
WITH LOCAL CODES. IN THE ABSENCE OF LOCAL CODES, USE THE CURRENT CSA22.1 CANADIAN
ELECTRIC CODE IN CANADA OR THE CURRENT NATIONAL ELECTRIC CODE ANSI/NFPA NO. 70 IN
ALWAYS LIGHT THE PILOT WHETHER FOR THE FIRST TIME OR IF THE GAS SUPPLY HAS RAN OUT,
If access to the control area is necessary AFTER INSTALLATION, remove the access panel or electrical
box cover located inside the fi rebox. The access panel and gasket must be re-installed before operating the
appliance.
7.1

HARD WIRING CONNECTION

It is necessary to hard wire this appliance.
Permanently framing the appliance with an enclosure, requires the appliance junction box to be hard wired.
7.2

OPTIONAL BLOWER INSTALLATION

See separate instructions accompanying the blower assembly.
7.3

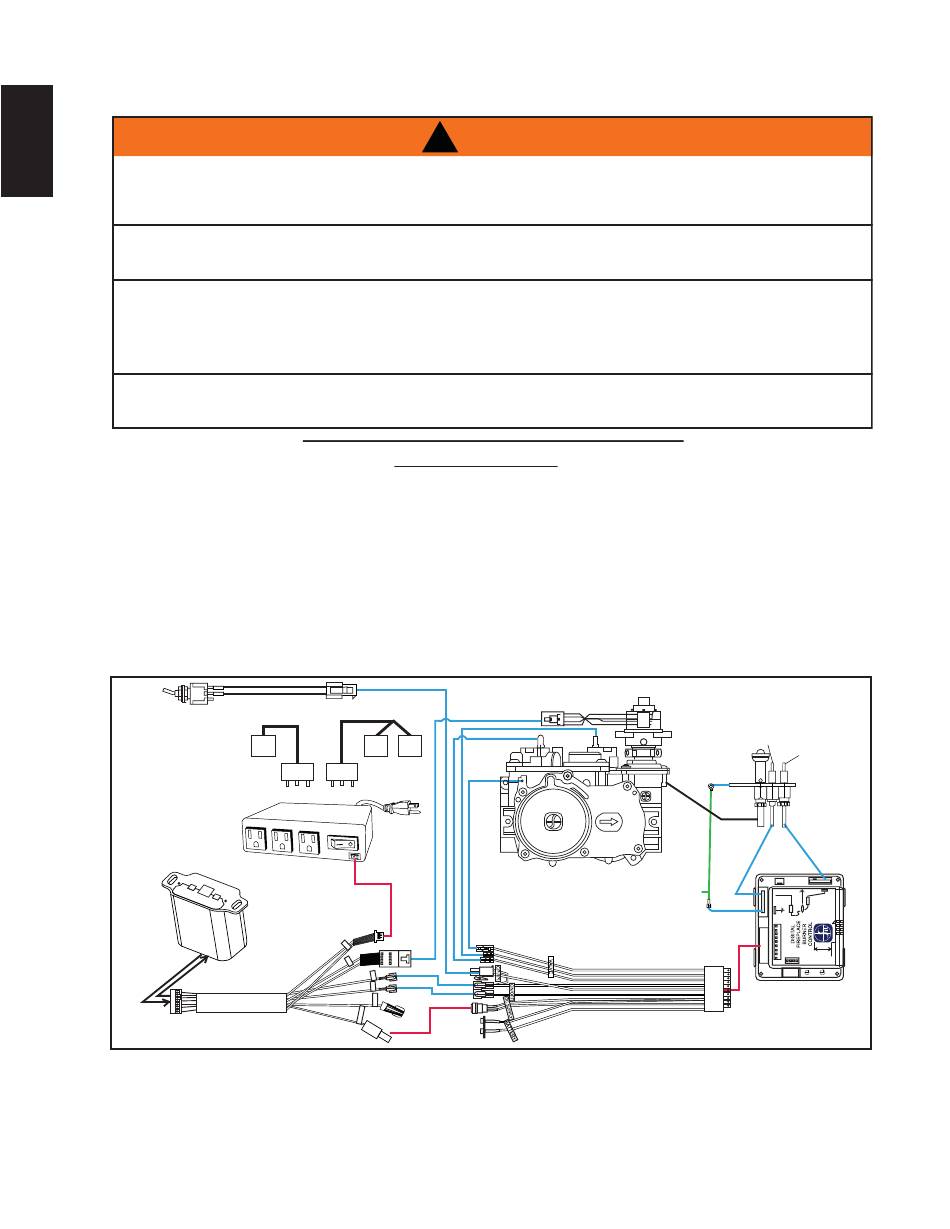

SCHEMATIC

Wire
Wire Harness
Harness
Plug
W415-1406 / 11.19.14
ELECTRICAL CIRCUIT.
THE UNITED STATES.
WITH THE GLASS DOOR OPENED OR REMOVED.
ACS/IPI Switch
Fan
Night Lights
120V OUT
FAN
AUX OUT
POWER
COM
Control Module
Receiver
WARNING
!
Valve
Electronic Modulation
Wire Harness Assembly
69.2
Spark Electrode
Flame
Sensor
EI
Pilot
Pilot
Ground
Wire
IPI Board
