WDR:
Wide dynamic level:
White balance:
Digital Noise reduction:
Noise reduction level:
Mirroring:
Portrait mode:
Video standard:

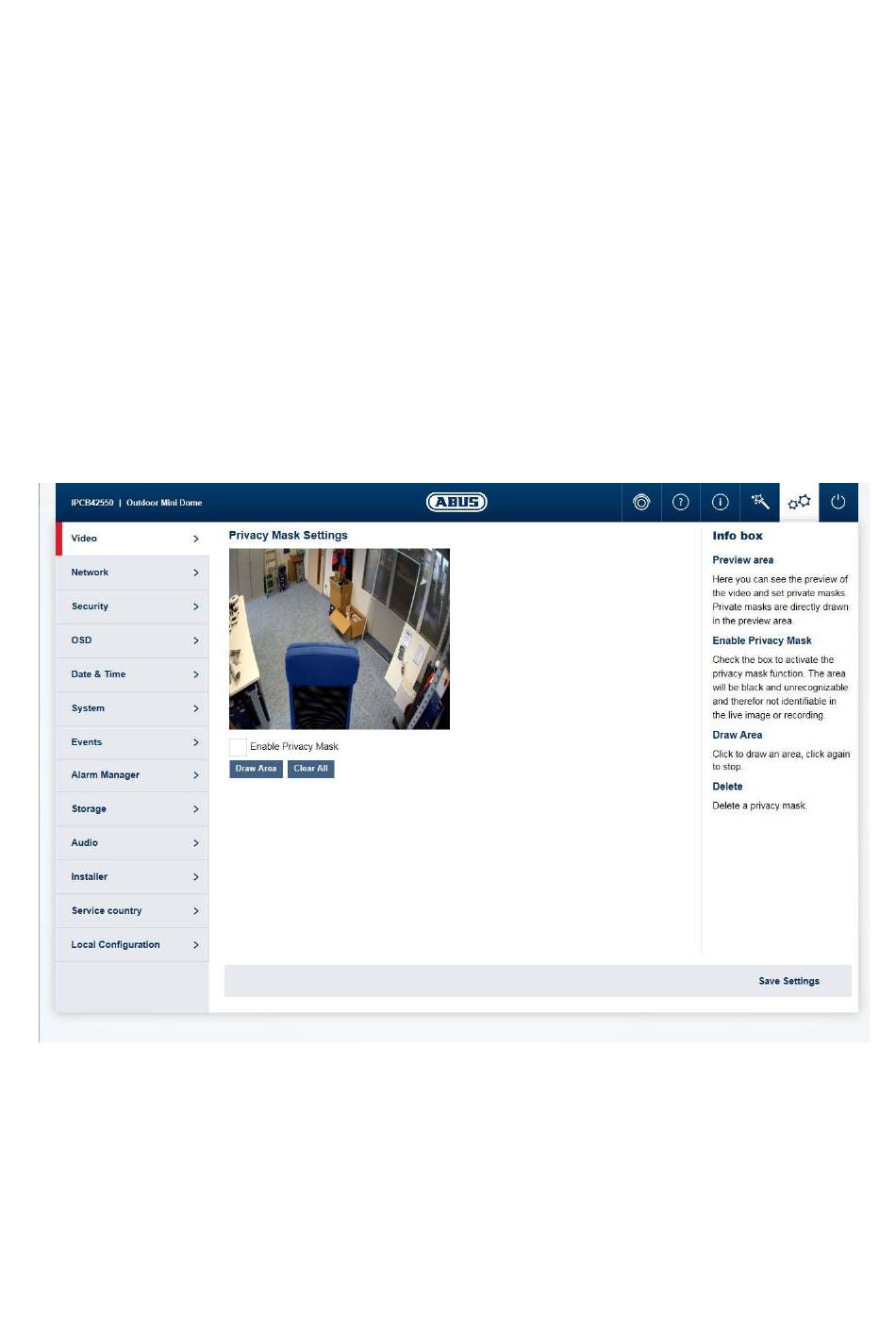

7.5.1.2 Privacy masking

Preview area:
Enable privacy mask:
Draw Area:
Delete all:
wide dynamic function for improved display of high contrasts.
The WDR level should be reduced if the image displayed is too
bright.
select the WDR level. A higher level may increase image noise.
you can select between different variants of white balance.
function to reduce noise in the image. The higher the value, the
more noise is removed and the more static the image appears.
select the DNR level
this setting can be used to mirror the image horizontally or
horizontally and vertically.
this setting is used to rotate the image to increase the vertical
angle of view. It is necessary to rotate the camera module
through 45° when doing this.
Here you can set the mains frequency of the power supply
network.
the preview of the video and privacy masks that have been set up are
displayed here. Privacy masks are drawn directly in the preview area.
enable/disable the privacy masks function.
draw polygonal areas. The drawing mode is closed by clicking this
button again. The area drawn is blacked out and so cannot be seen in
the live image or in the recording.
delete a privacy zone mask
82
