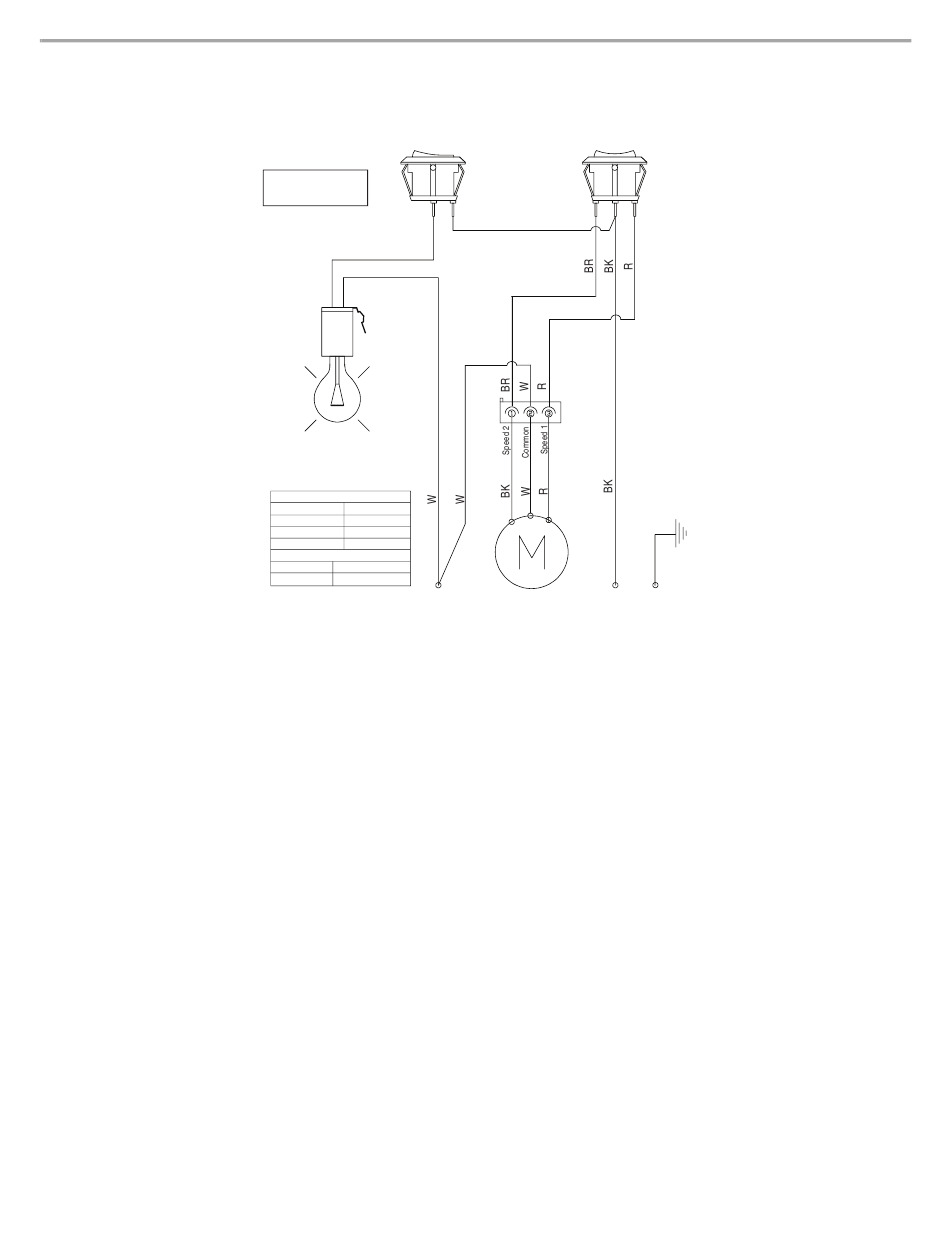

WIRING DIAGRAM

Light Switch

Motor Switch
On - Off
Low - Off - High
SE113B
BK
BK
W
Ground
Motor Characteristics
Power Supply
120 VAC Screw
Frequency
60 Hz
0.35 ±10% A
Amperage
Wattage Rating 21 ±10% Watts
Motor Resistance
46.9 ±10% Ohms
White - Red
C10
37.2 ±10% Ohms
White - Black
N
GND
L
