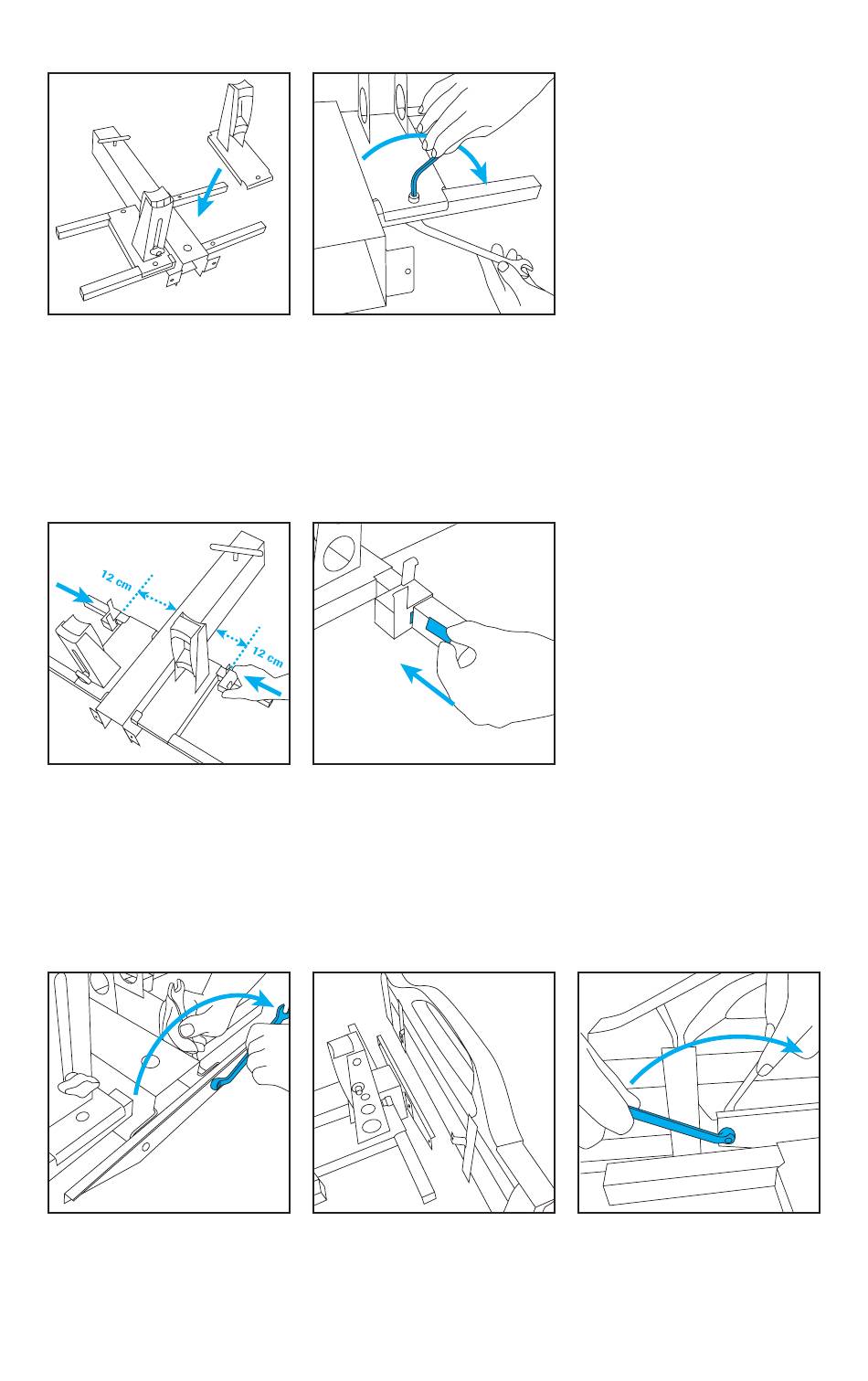

Installation of crank stands
Place the 2 crank stands
according to the drawing
alternately on the carrier.
Assembly of clamp
The clamps are used to attach the light unit in storage position.
Slide the clamps onto the
carrier at 12 cm distance from
the centre member.
Assembly of light bar
Place the adapter plate on the
carrier. Tighten the bolts with
the open-ended spanners of 2
mm.
28
Attach the crank stands by tightening the 8 bolts with the open-
ended spanner of 13 mm and the allen key of 6 mm.
Slide the wedges into the
clamps in order to secure
them.
Place the light bar in front of
the adapter plate.
Attach the light bar to the
adapter plate by tightening the
bolts with the 2 open-ended
spanners of 10 mm.
