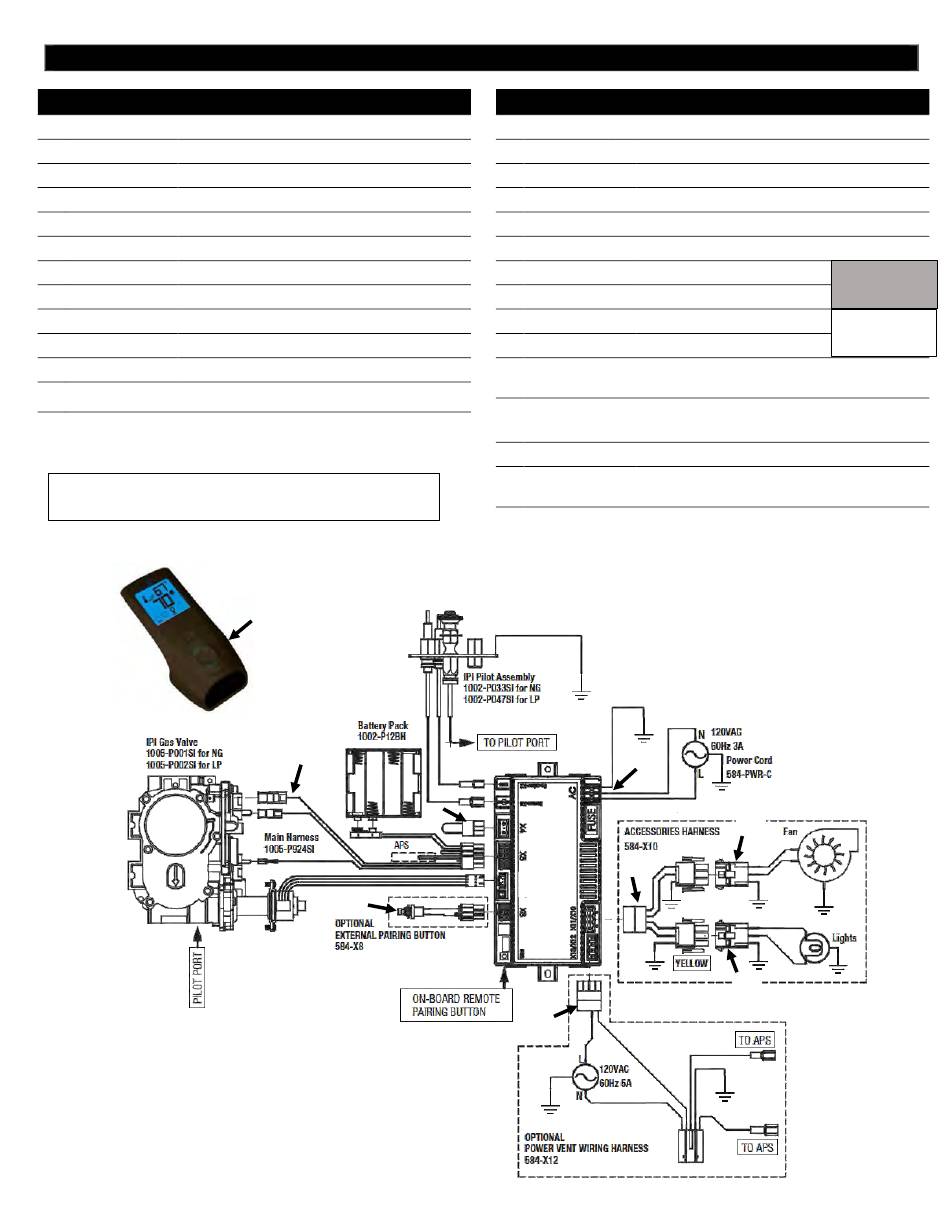

Kingsman marquis collection 3622ZCV SOLARA Instructions D'installation page 56

Proflame 2 IPI –NE2 / LPE2
IPI PROFLAME 2 - Composants
Numéro d'article DESCRIPTION
1. 1005-P001SI Valve IPI Proflame PF2 885.001 NG - Stepper
2. 1005-P002SI Valve IPI Proflame PF2 885.002 LP - Stepper
3. 1005-P325SI Module IPI - Proflame 2 - 584.325
1005-P627SI Module IPI – Proflame 2 - Basic - 584.627
4.
5. 1005-P924SI Harness PF2 - 584.924
6. 1005-P042SI Transmitter - PF2 - Black 584.042
7. 584-PWR-C Wire Harness PF2 – Power Cord
8. 584-X4P Terminal Block
9. 584-X10 Wire Harness PF2
10. 584-ACC01-C Wire Harness PF2 - Fan/Light
11. 584-X8-B Wire Harness PF2 - Optional Reset Harness
12. 584-X12 Optional Power Vent Harness
N.B.: Les options de ventilation et / ou d'éclairage ne sont pas
disponibles sur certains modèles de foyer.
Vérifiez auprès de votre revendeur.
Proflame Transmitter
1&2
- Liste de pièces -
0.584.042
6
5
11
IPI - PF1 / PF2 Parties communes
Numéro d'article DESCRIPTION
13. 1002-P033SI
14. 1002-P047SI
15. 1001-P166SI
16. 1001-P168SI
17. 1001-P280SI
18. 1002-P012SI
19. 1002-P013SI
20. 1002-P014SI
21. 1002-P016SI
22. 1002-P017SI
23. 1002-P119SI
24. 1002-P12BH
25. 1002-P903SI
26. 1002-P910SI
8
3 & 4
12
TC - Pilot Burner IPI (Assembled) NG 199.033
TC - Pilot Burner IPI (Assembled) LP 199.047
TC - Orifice Pilot NG 977.166 #62 (IPI)
TC - Orifice Pilot LP 977.168 #35 (IPI)
TC - Tubing W/Fittings 1/8 2.182.280
IPI Stepper Kit - LP 907.012
IPI Stepper Kit - NG 907.013
IPI Reg Kit - LP Hi-Lo 907.014
IPI Reg Kit - NG Hi-Lo 907.016
TC - Electrode Cable & Sparker IPI 915.017
24"
TC - Electrode Cable & Sparker IPI 35"
(Infinite, ZCVRB47, VRB46)
IPI Battery Housing 12bh347-Gr
TC - Electrode Flame Sense IPI
007.253/915.903 24"
TC - Electrode Flame Sense 35"
(Infinite, ZCVRB47, VRB46)
7
10
9
10
P2
CONVERSION
P1
CONVERSION
