............. direct current
.................. Class I Construction
...................... (grounded)
.................. Class II Construction
...................... (double insulated)
BPM .............. beats per minute
SAVE THESE INSTRUCTIONS
Motor
Your D WALT tool is powered by a D
E E
the nameplate marking.
Voltage decrease of more than 10% will cause loss of power and overheating. D
are factory tested; if this tool does not operate, check power supply.

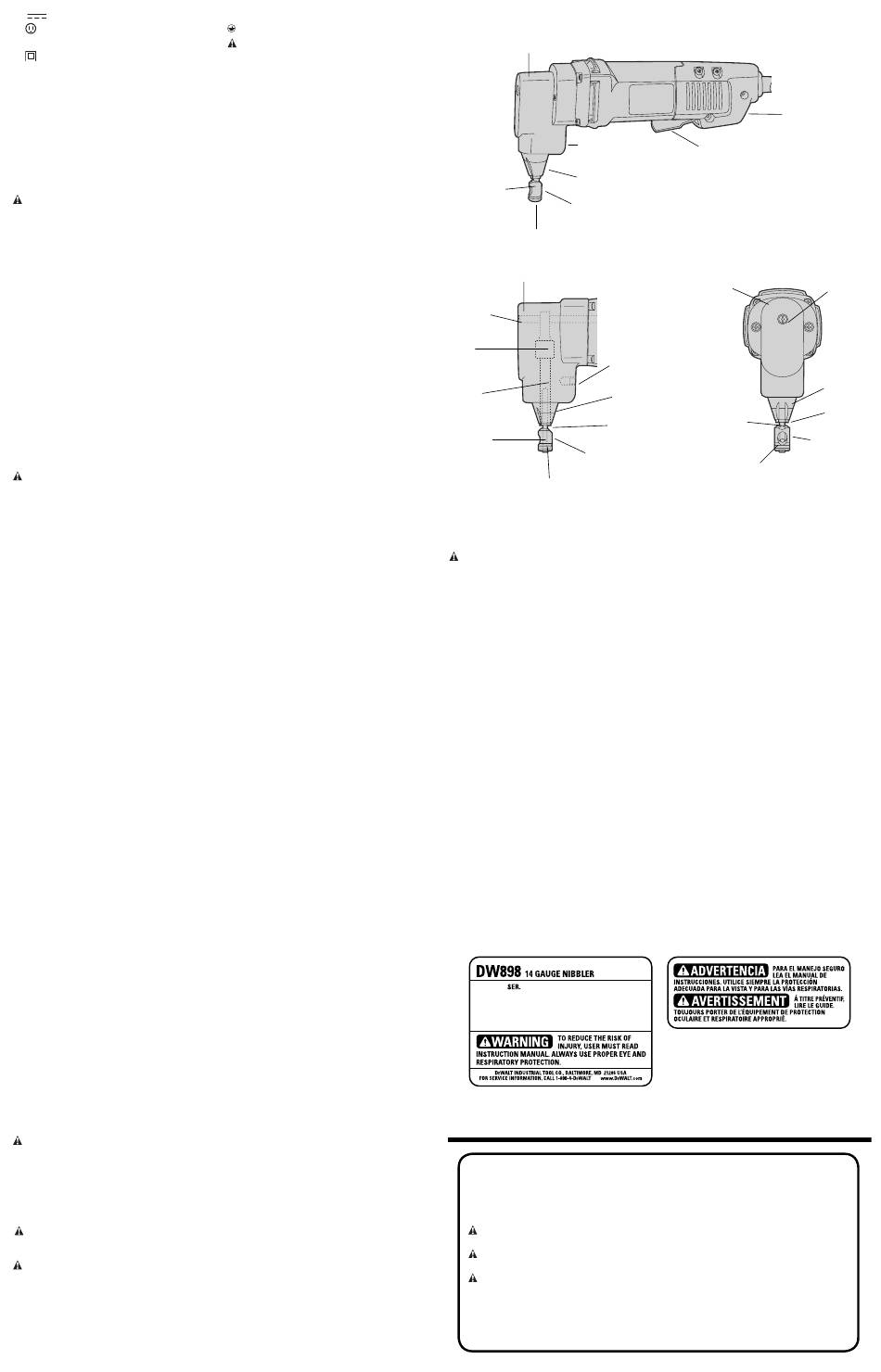

COMPONENTS (Fig. 1)
WARNING: Never modify the power tool or any part of it. Damage or personal injury could
result.
A. Head
B. Punch
C. Cover ring
D. Die
E. Housing
F. Paddle switch
G. Switch lock button
H. Set screw
INTENDED USE
The DW898 14-gauge nibbler is designed for professional cutting at various work sites (i.e.,
construction sites). DO NOT use under wet conditions or in presence of flammable liquids or
gases.
The14-gauge nibblers are professional power tools. DO NOT let children come into contact with
the tool. Supervision is required when inexperienced operators use this tool.
Switches (Fig. 1)
To start tool, depress the paddle switch (F). To turn the tool off, release the paddle. The paddle
switch can be locked on by engaging the lock button (G) located near the rear of the tool, while
holding the paddle depressed. Always be sure that the tool is not locked on before plugging in. To
turn the tool off when it is locked on, squeeze and release the paddle once.
OPERATION (Fig. 2, 3)
WARNING: To reduce the risk of serious personal injury, turn tool off and disconnect
tool from power source before making any adjustments or removing/installing attachments
or accessories.
Lubricate surface of material with oil. The nibbler is designed to cut flat and shallow corrugated
metal.
NOTE: Punch and die should be lubricated by immersing in a good quality cutting oil approxi-
mately every 30 feet (92 m) of cutting
The tool is factory assembled with the punch (B) oriented forward for cutting flat and shallow
corrugated material.
The head (A) can be aligned in three positions: left, forward, and right (See Fig. 2). To rotate the
head (A), loosen the set screw (H). Turn the head in the desired direction.
NOTE: Do not rotate the head in a complete circle as this will change the punch engagement
in the die.
Rotate the housing (E) in the head (A) and turn the set screw (H) in until you feel the set screw
engage a recess in the shoe. Tighten the set screw firmly. Periodically recheck this screw for
tightness.
The nibbler head (A) is designed to fit through a 3/4" (19 mm) diameter hole for starting a cut in
the middle of the work. Nibbling can be done in any direction from this hole. A punch width indi-
cator is provided on the front of the housing to allow users to follow a line closely (Fig. 3).
The bottom of the housing has a .51" (13 mm) diameter template guide (L) to allow for use of
templates. See Figures 2 and 3 for template guide surface. The thickness of the template should
be such that the total thickness of the template and workpiece is 13/64" to 1/4" (5 to 6.5 mm).
The shape of the template must be .1" (2.5 mm) away from the shape to be nibbled. The tool
should be guided so that the outside diameter (.51" or 13 mm) of the housing always rests on
the template.
Changing Punches (Fig. 2)
Never cut with a blunt, dull punch. Punches can be sharpened until they reach a length of 2.72"
(69 mm). Shorter punches are unserviceable. To remove the punch (B), loosen the head set
screw (H) about 4–5 turns (See Fig. 2). Slide the housing (E) from the head (A). Unscrew the
punch (B) from the connecting rod bushing (J). Punch may be resharpened carefully on a bench
grinder with a fine grit wheel. Be careful that the punch does not become shorter than the mini-
mum length. Punches shorter than this will not engage the die sufficiently and must be replaced.
The ground face must be square to the punch axis. After grinding, carefully stone the ground
edges to remove burrs. Do not round over corners.
Reassembly of Nibbler Head (Fig. 2)
Screw the punch (B) fully into the connecting rod bushing (J). Slide the housing (E) over the
end of the punch and into the head. Turn the housing (E) to desired cut orientation. Tighten set
screw (H). Next, check punch engagement.
Checking Punch Engagement (Fig. 2)
Since the punch (B) length is now changed, the punch engagement may have to be adjusted.
Check punch engagement by placing a flat blade screwdriver in the cam shaft (I) slot and turn-
ing the shaft (See Fig. 2). Punch should dip .020" to .06" (.5 to 1.15 mm) into the die at the full
down stroke position. Too much punch dip into the die will result in a loss of capacity (bottom of
punch will not clear die enough on up stroke.)
Punch Engagement Adjustment (Fig. 2)
If the punch engagement should need adjustment, loosen the set screw (H) and rotate shoe
either clockwise (punch deeper into die) or counterclockwise (punch out of die). Tighten set
screw firmly. Turn cam shaft (I) with screwdriver in slot to check punch engagement (moving
punch fully down). Repeat as necessary.
Die Replacement (Fig. 2)
If the die (D) becomes dull, replace it. Replace old die by pushing the cover ring (C) up and out
of the die groove. Knock out the retaining pin under the cover ring with a drift punch. Pull die off
the carrier shaft (K). Install new die (D) on carrier shaft (K). Align cross hole in die with groove in
carrier shaft. Install pin. Snap cover ring (C) over die in groove provided.
MAINTENANCE
WARNING: To reduce the risk of serious personal injury, turn tool off and disconnect
tool from power source before making any adjustments or removing/installing attachments
or accessories.
• Check that the punch and die are sharp. If either is dull, sharpen or replace.
• Periodically dip the shoe in oil.
• This is a precision tool. Use it carefully and store it in a protected place..
Cleaning
WARNING: Blow dirt and dust out of all air vents with dry air at least once a week. Wear
proper ANSI Z87.1 (CAN/CSA Z94.3) eye protection and proper NIOSH/OSHA/MSHA
respiratory protection when performing this.
WARNING: Never use solvents or other harsh chemicals for cleaning the non-metallic parts
of the tool. These chemicals may weaken the plastic materials used in these parts. Use a cloth
dampened only with water and mild soap. Never let any liquid get inside the tool; never immerse
any part of the tool into a liquid.
Lubrication
Self lubricating bearings are used in the tool and periodic relubrication is not required. However,
it is recommended that, once a year, you take or send the tool to a service center for a thorough
cleaning and inspection.
n o ..................no load speed
...................earthing terminal
..................safety alert symbol
.../min ............revolutions or
.......................reciprocation per minute
WALT-built motor. Be sure your power supply agrees with
FIG. 1
A
WALT tools
E
B
C
FIG 2
A
I
J
B
K
Accessories
WARNING: Since accessories, other than those offered by D
with this product, use of such accessories with this tool could be hazardous. To reduce the risk
of injury, only D WALT, recommended accessories should be used with this product.
E
Recommended accessories for use with your tool are available at extra cost from your local
dealer or authorized service center. If you need assistance in locating any accessory, please
contact D WALT Industrial Tool Co., 701 East Joppa Road, Baltimore, MD 21286, call 1-800-4-
E
D WALT (1-800-433-9258) or visit our website www.dewalt.com.
E
Repairs
To assure product SAFETY and RELIABILITY, repairs, maintenance and adjustments (including
brush inspection and replacement) should be performed by a D
a D WALT authorized service center or other qualified service personnel. Always use identical
E
replacement parts.
Three Year Limited Warranty
D WALT will repair, without charge, any defects due to faulty materials or workmanship for
E
three years from the date of purchase. This warranty does not cover part failure due to normal
wear or tool abuse. For further detail of warranty coverage and warranty repair information, visit
www.dewalt.com or call 1-800-4-D
accessories or damage caused where repairs have been made or attempted by others. This
warranty gives you specific legal rights and you may have other rights which vary in certain
states or provinces.
In addition to the warranty, D
D WALT will maintain the tool and replace worn parts caused by normal use, for free, any time
E
during the first year after purchase.
If you are not completely satisfied with the performance of your D
Nailer for any reason, you can return it within 90 days from the date of purchase with a receipt
for a full refund – no questions asked.
LATIN AMERICA: This warranty does not apply to products sold in Latin America. For
products sold in Latin America, see country specific warranty information contained either in the
packaging, call the local company or see website for warranty information.
FREE WARNING LABEL REPLACEMENT: If your warning labels become illegible or are
missing, call 1-800-4-D
Définitions : lignes directrices en
Les définitions ci-dessous décrivent le niveau de danger pour chaque mot-indicateur
employé. Veuillez lire le mode d'emploi et porter une attention particulière à ces
symboles.
DANGER : Indique une situation dangereuse imminente qui, si elle n'est pas
évitée, causera la mort ou des blessures graves.
AVERTISSEMENT : Indique une situation potentiellement dangereuse qui, si elle
n'est pas évitée, pourrait se solder par un décès ou des blessures graves.
MISE EN GARDE : Indique une situation potentiellement dangereuse
qui, si elle n'est pas évitée pourrait se solder par des blessures mineures ou
modérées.
MISE EN GARDE : Utilisé sans le symbole d'alerte à la sécurité, indique une situation
potentiellement dangereuse qui, si elle n'est pas évitée pourrait se solder par des
dommages à la propriété.
H
F
E
D
FIG 3
H
E
L
D
C
WALT (1-800-433-9258). This warranty does not apply to
E
WALT tools are covered by our:
E
1 YEAR FREE SERVICE
90 DAY MONEY BACK GUARANTEE
WALT for a free replacement.
E
matière de sécurité
G
A
I
E
L
B
D
C
WALT, have not been tested
E
WALT factory service center,
E
WALT Power Tool, Laser, or
E
