Preparation and Treatment (cont.)

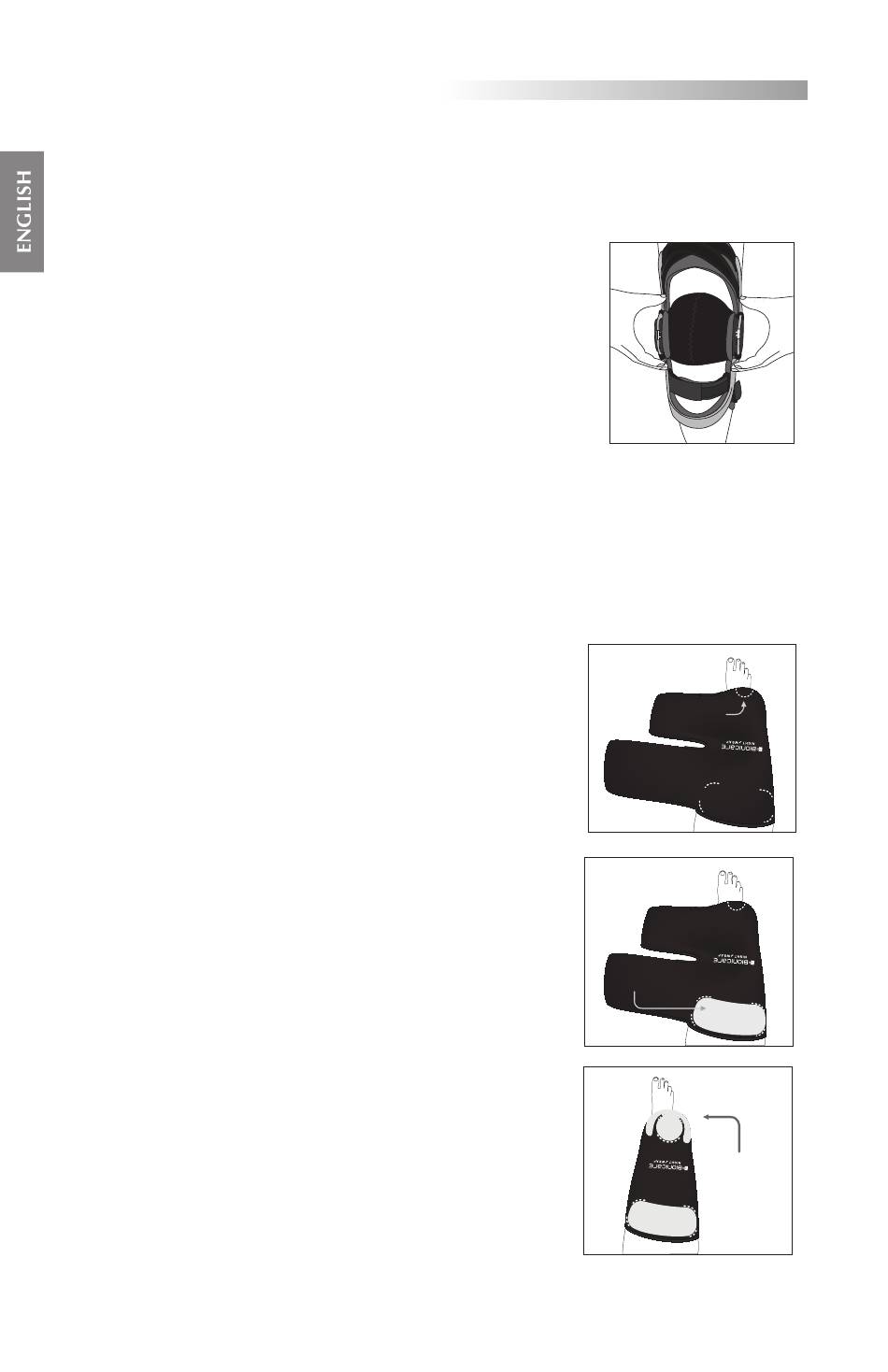

STEP 5. Apply the brace. Remove the clear backing
from both electrodes. With the knee bent at 45
degrees, gently push the knee wrap over the knee
to create a "reverse bubble". Be sure the center of
the knee wrap and center round part of the electrode
are directly over the center of the kneecap.
Fasten straps in numerical order and continue
applying the brace per the Catalyst-Propel OA
application instructions.
BioniCare Night-Wrap Application Guide:
STEP 1. Install Electrodes on the BioniCare Night-Wrap
• Lay the Night-Wrap on the leg with the longer
strap closer to the waist, and so that the
graphics of the wrap are visible. Ensure that
the kneecap (patella) is centered beneath the
patella marking.
• Apply the thigh electrode by peeling off
the white paper backing and adhering the
electrode to the wrap within the markings. The
wire should extend up toward the waist. The
white side of the electrode should be against
the wrap and black side goes on the skin.* LONG STRAP
• Apply knee electrode by peeling off the white
paper backing and adhering the electrode to
the wrap within the markings as pictured. The
wire should extend downward. The white side
of the electrode should be against the wrap and
black side goes on the skin.*
*For demonstration purposes, electrodes are shown here
in a contrasting color.
10
PATELLA
KNEE
ELECTRODE
PATELLA
LONG STRAP
PATELLA
LONG STRAP
THIGH
ELECTRODE
KNEE
ELECTRODE
KNEE
ROUND AREA
ELECTRODE
OF ELECTRODE
PATELLA
