Installing and connecting the unit
Connection process
1. The unit´s connection is done via the back access. Check if the battery´s wiring is properly connected (G2
AUX + and G2 AUX -). The wiring comes with the serial number printed to avoid confusions.
G2 AUX +
ABA2022IQM01_ - 7.55.4.183.9 - Installation and Operation Manual
G2 AUX -

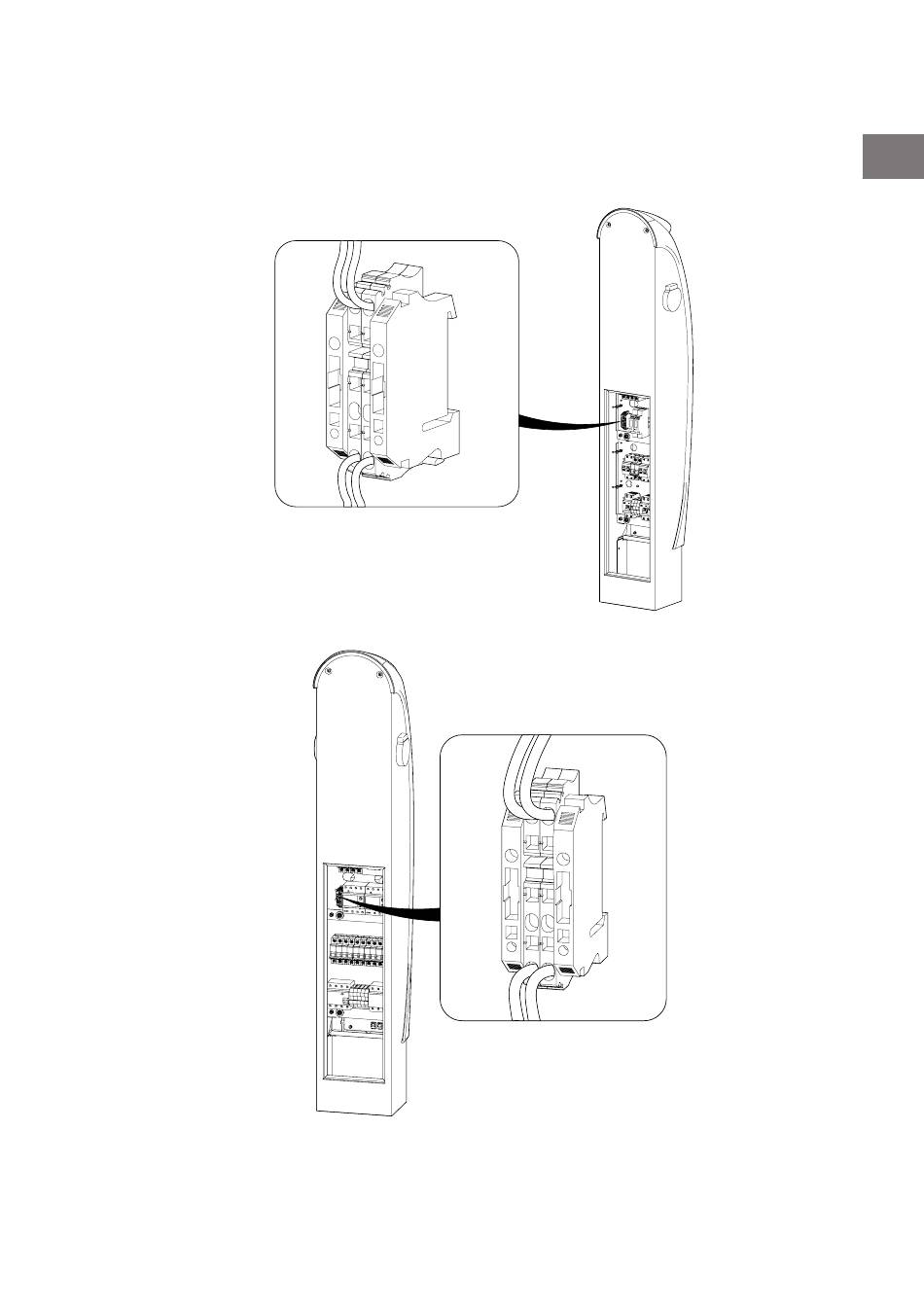

Single phase charging station
G2 AUX +
G2 AUX -
Three phase charging station
