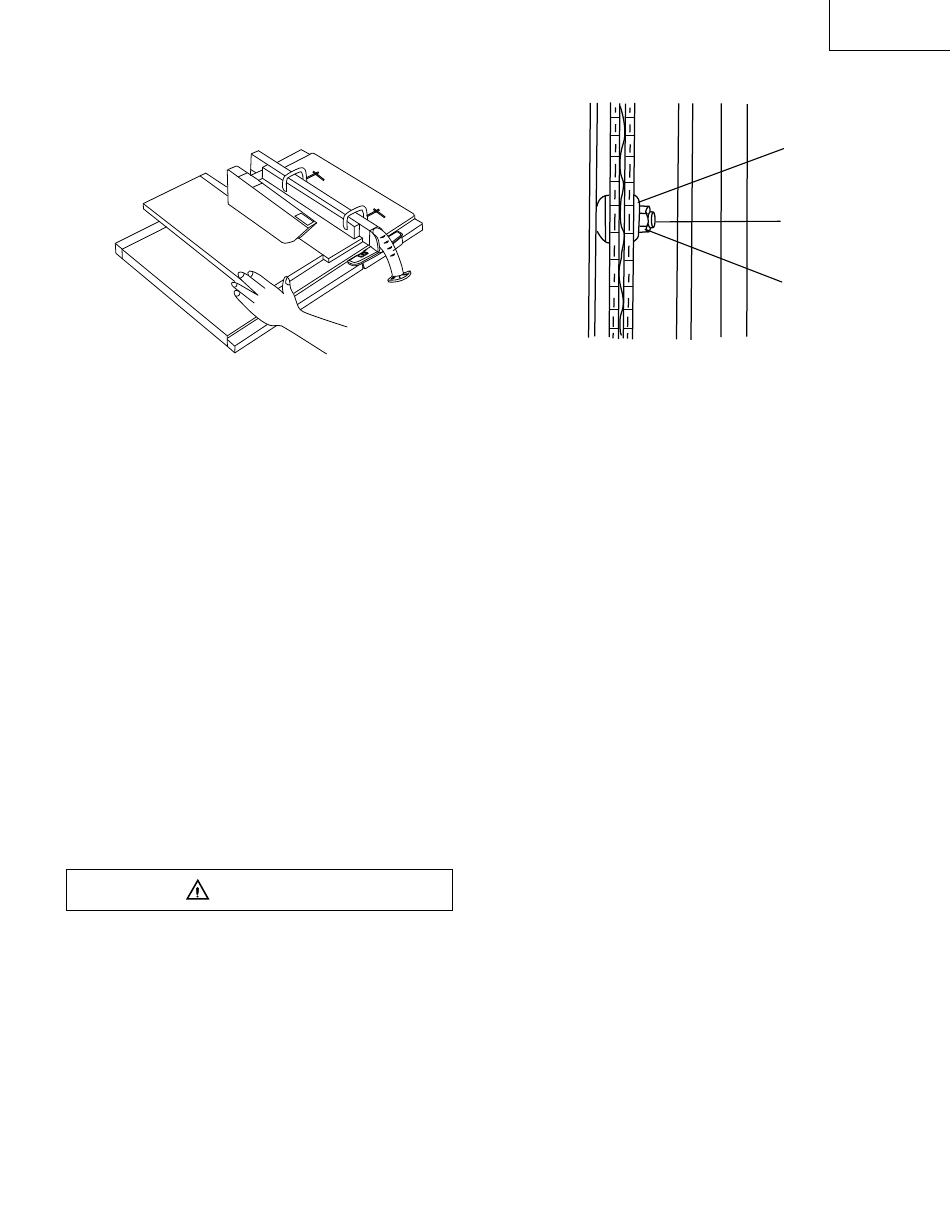

Attach auxiliary fence to rip fence with two "C"
clamps. (Fig. JJ)
Fig. JJ
DADO CUTS (FIG. KK)
1. The dado blade insert is included with this saw.
Remove the saw blade, original table inser and blade
guard. Install the dado and dado blade insert.
2. Instruction for operating the dado is packed with the
separately purchased dado set.
3. The arbor (1) on this saw restricts the maximum
width of the cut to 1/2 in.
4. When making full 1/2 in dado cuts, it is not necessary
to install the outside flange (2) before screwing on
the arbor nut (3). Make sure that the arbor nut (3) is
tight, and that at least one thread of the arbor sticks
out past the nut.
5. Do not exceed 6 in diameter dadoes and keep the
width 1/2 in or less. It will be necessary to remove the
blade guard and splitter when using a dado blade.
Always use caution when operating a dado blade.
6. Use only the correct number of round outside blades
and inside chippers as shown in the dado set's
instruction manual. Blade or chipper must not exceed
1/2 in.
7. Check saw to ensure that the dado will not strike the
housing, insert, or motor when in operation.
WARNING
For your own safety, always replace the blade, blade
guard assembly, and blade insert when you are
finished with the dado operation.
Fig. KK
– 21 –
English
2
1
3
