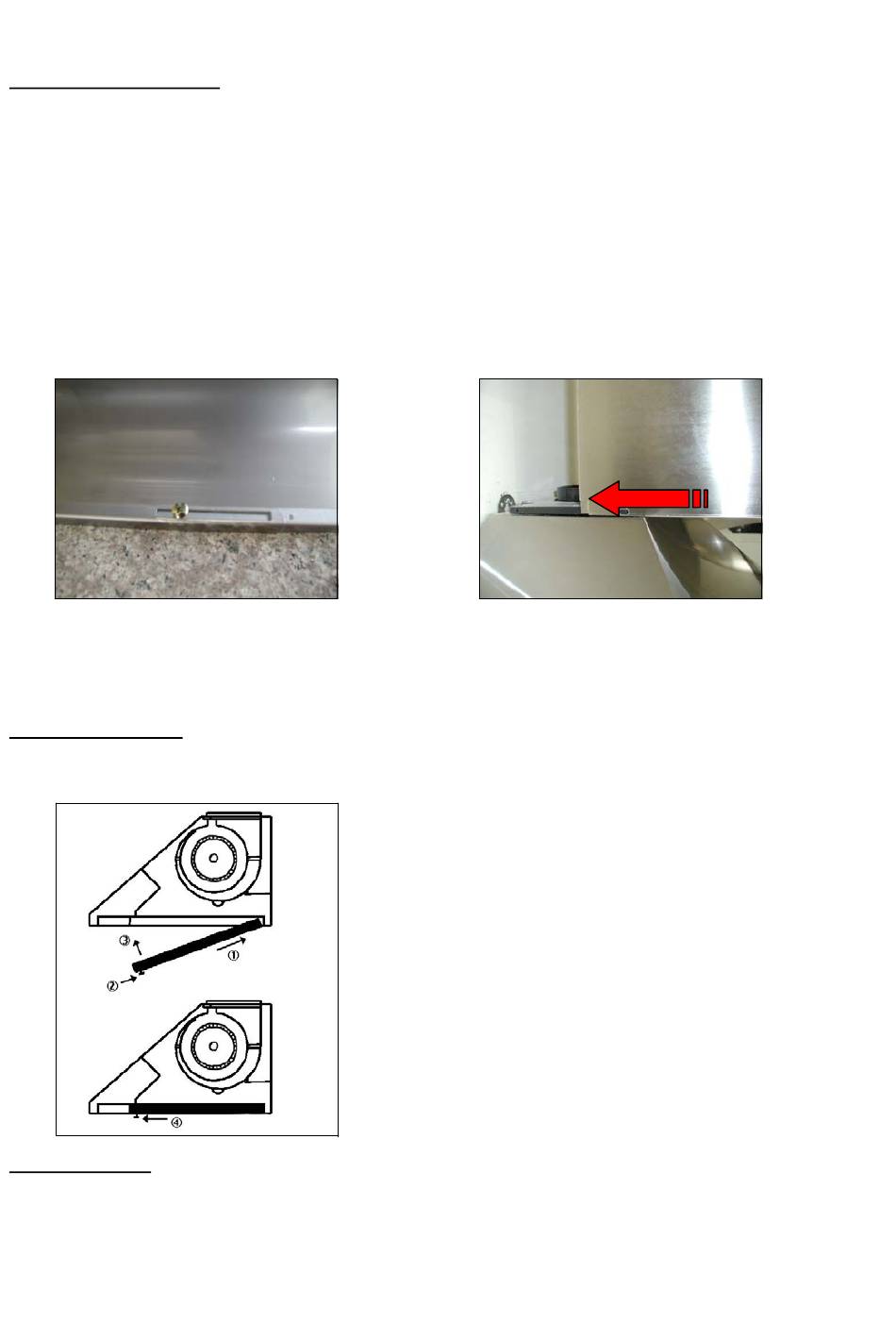

Duct Cover Installation
NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE
HOOD MAY OCCUR.
10. Using reference E from Table 1 and measurements on page 12, mark the leveling point
for duct cover bracket.
11. Secure the duct cover bracket to the wall with two screws (not provided). Make sure all
screws are tightened. NOTE: Inner duct cover will cover the duct cover bracket.
12. Adjust the duct cover length and secure with two (4x8 mm) screws (provided) as shown in
Figure 8.
13. Remove the two (4x14 mm) screws (provided) on the duct cover position plate.
14. Slide the entire duct cover onto the hood. Refer to Figure 9.
Place the edge of the inner duct cover behind the duct cover bracket on the wall.
Secure the outer duct cover to the duct cover position plate with two (4x14 mm) screws
(provided).
Install Accessories
15. Place baffle filters underneath the hood. Refer to Figure 10.
Final Assembly
16. Turn power ON in control panel. Check all lights and fan operation.
17. Make sure to leave this manual for the homeowner.
Figure 8
Figure 10
8
Figure 9
