Analog Sublimation Controller Analog Sublimation Controller
USE
1. When the command Sublimation on is given to the
unit, the current starts to flow to the selected
filament.
The current increases gradually from 0 A up to the
value set through the "0 to 10 Vdc analog input"
with a time constant of 10 seconds.
The Sublimation on LED on the unit front panel
switches on after about 2 seconds when the current
becomes higher than 10 A.
2. If, by error, two filaments are selected together, the
unit will accept the selection of just one of the two
filaments. (The first selected)
3. The Fault signal corresponds to one of the two
following conditions:
Overtemperature on the Power Transformer
(T > 100°C)
Filament interrupted (Output voltage at max.
value and Output Current <10 A)
In case of the filament interruption, in order to
switch to a new filament, the following procedure
has to be performed:
Put to off the Sublimation command
Select the new filament
Put to on the Sublimation command
It is not allowed to directly switch between two
filaments without going through the switching off of
the sublimation command.

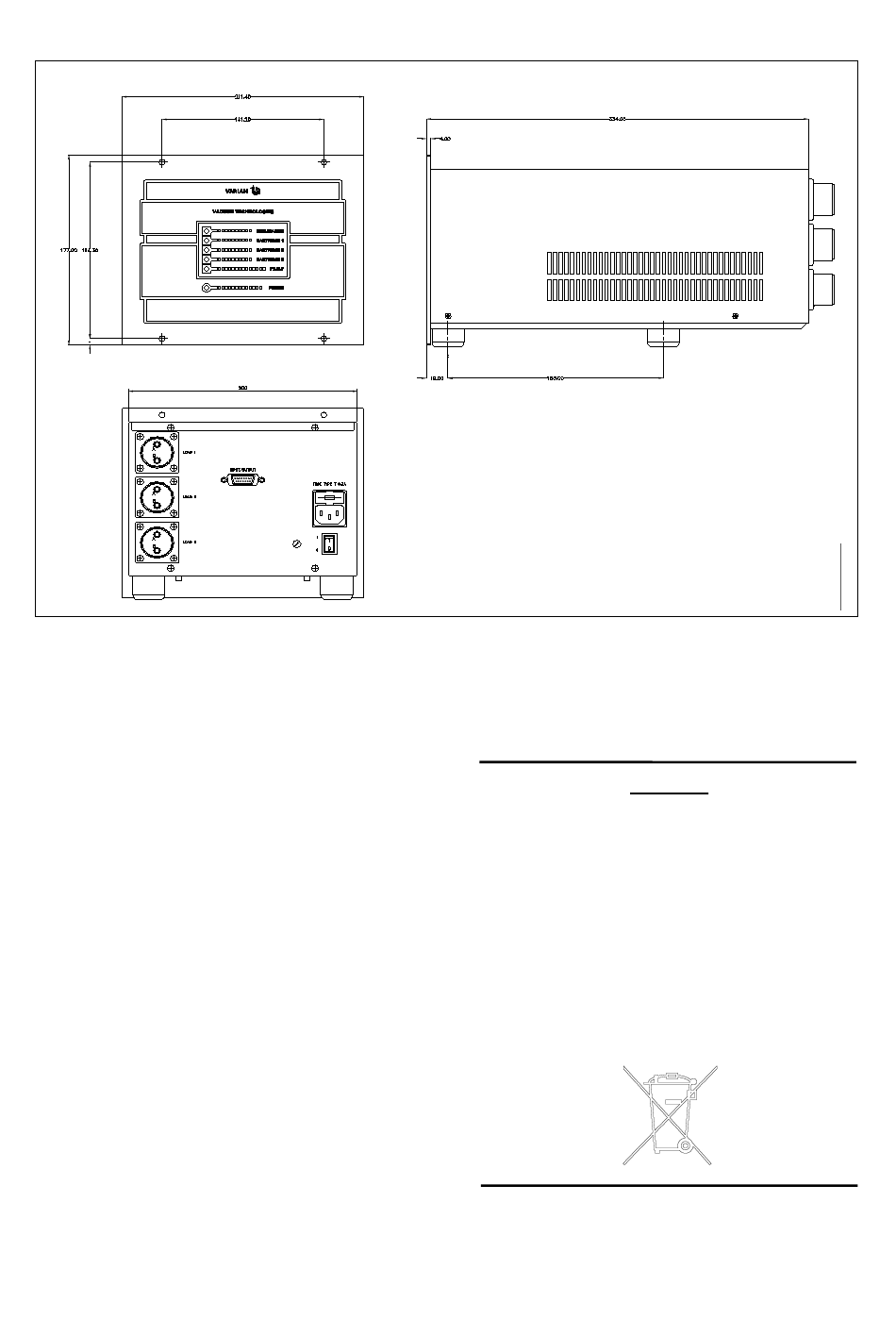

Analog Sublimation Controller
4. The maximum current is always limited to 50 A.
Even if an analog input signal higher than 10 Vdc is
given, the output current will not go to values higher
than 50 A.
Meaning of the "WEEE" logo found in labels
The following symbol is applied in accordance with the
EC WEEE (Waste Electrical and Electronic Equipment)
Directive.
This symbol (valid only in countries of the European
Community) indicates that the product it applies to
must NOT be disposed of together with ordinary
domestic or industrial waste but must be sent to a
differentiated waste collection system.
The end user is therefore invited to contact the supplier
of the device, whether the Parent Company or a
retailer, to initiate the collection and disposal process
after checking the contractual terms and conditions of
sale.
