TECHNICAL SPECIFICATIONS

Mains Supply:
Voltage
Frequency
Power
Outputs:
Voltage
Current
Power
Operating Temperature
Storage Temperature
Mains fuses
Compliance with Norms
Installation category:
Pollution degree:
Internal use only
Maximum operating altitude:

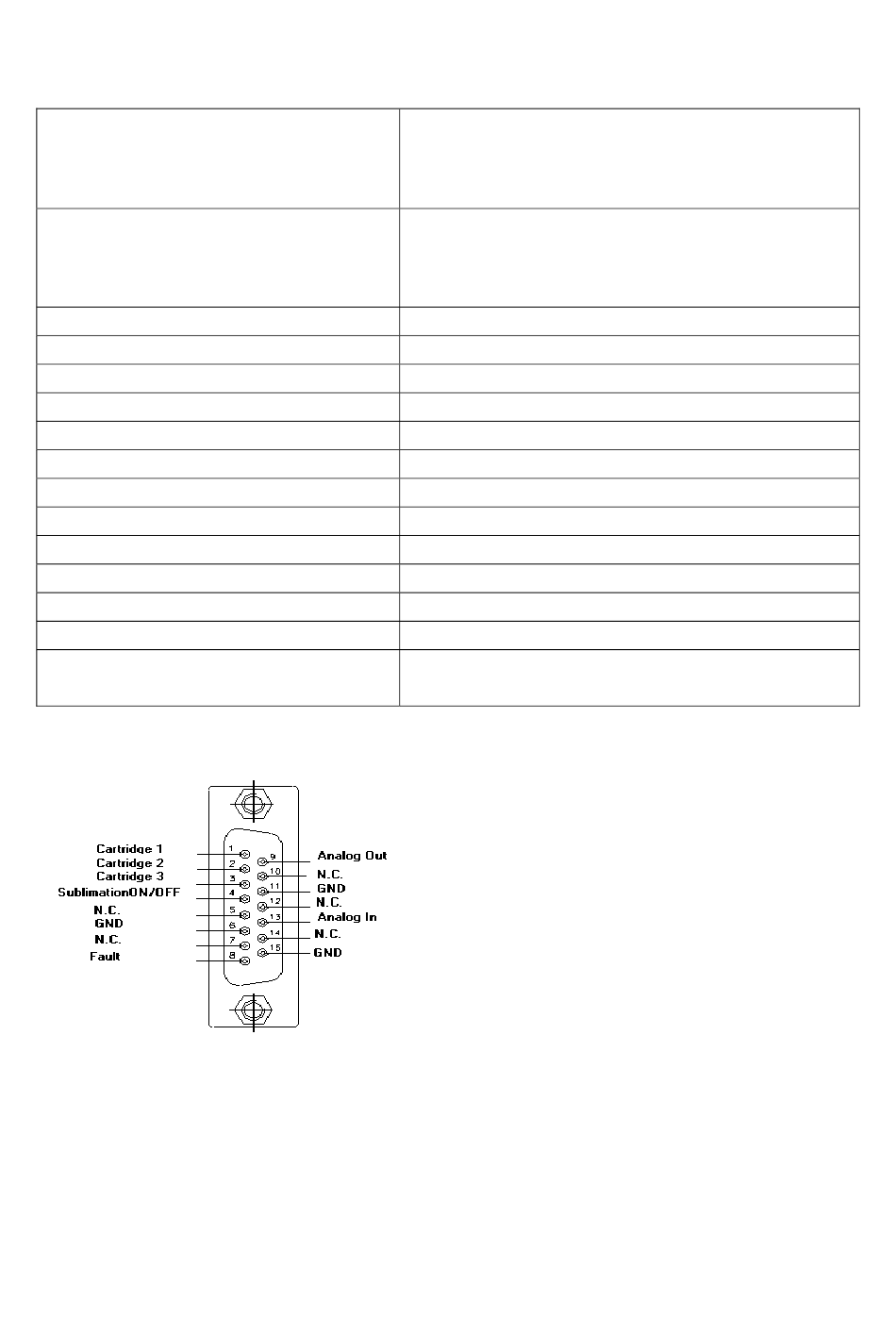

Remote Command Connector Description
Remote I/O
D-Shell Female 15P
1. Pin 13 – 6
0 to 10 Vdc analog input signal for the Sublimation
Current remote setting (0 V corresponding to 0 A,
10 V corresponding to 50 A).
Safety
EMC/EMI
230 Vac ±10% Single phase
50 Hz
600 VA max
12 Vac max
50 A max
600 W
From 0 to +45 °C
From -20 to+70 °C
T6,3 A
EN61010 - 1
EN55011 Class A Group 1
EN61000 – 4 - 4
EN61000 – 4 - 2
EN61000 – 3 - 2
EN61000 – 4 - 11
II
2
3000 m
2. Pin 9 – 6
0 to 10 Vdc analog output signal for the Sublimation
Current reading. (This signal will be available only
when the sublimation will be running) (0V = 0A,
10V = 50 A).
3. Pin 1 – 11 (Cartridge 1), Pin 2 – 11 (Cartridge 2),
Pin 3 –11 (Cartridge 3)
3 Digital inputs (24 Vdc with respect to ground) for
the selection
commands: 0 Cartridge deselected, 1 Cartridge
selected).
4. Pin 4 – 11
Digital input for the Sublimation On/Off command
(24 Vdc with respect to ground) (Stable command:
0 Sublimation Off, 1 Sublimation On).
5. Pin 8
Digital output for the Fault Indication. When a
FAULT condition (TSP filament burnt, Over-
temperature on the Power Transformer) the voltage
at pin 8 changes from 0 V to 24 V with respect to
ground (pin 15).
Command Voltage: 24 Vdc +/- 15%
5
