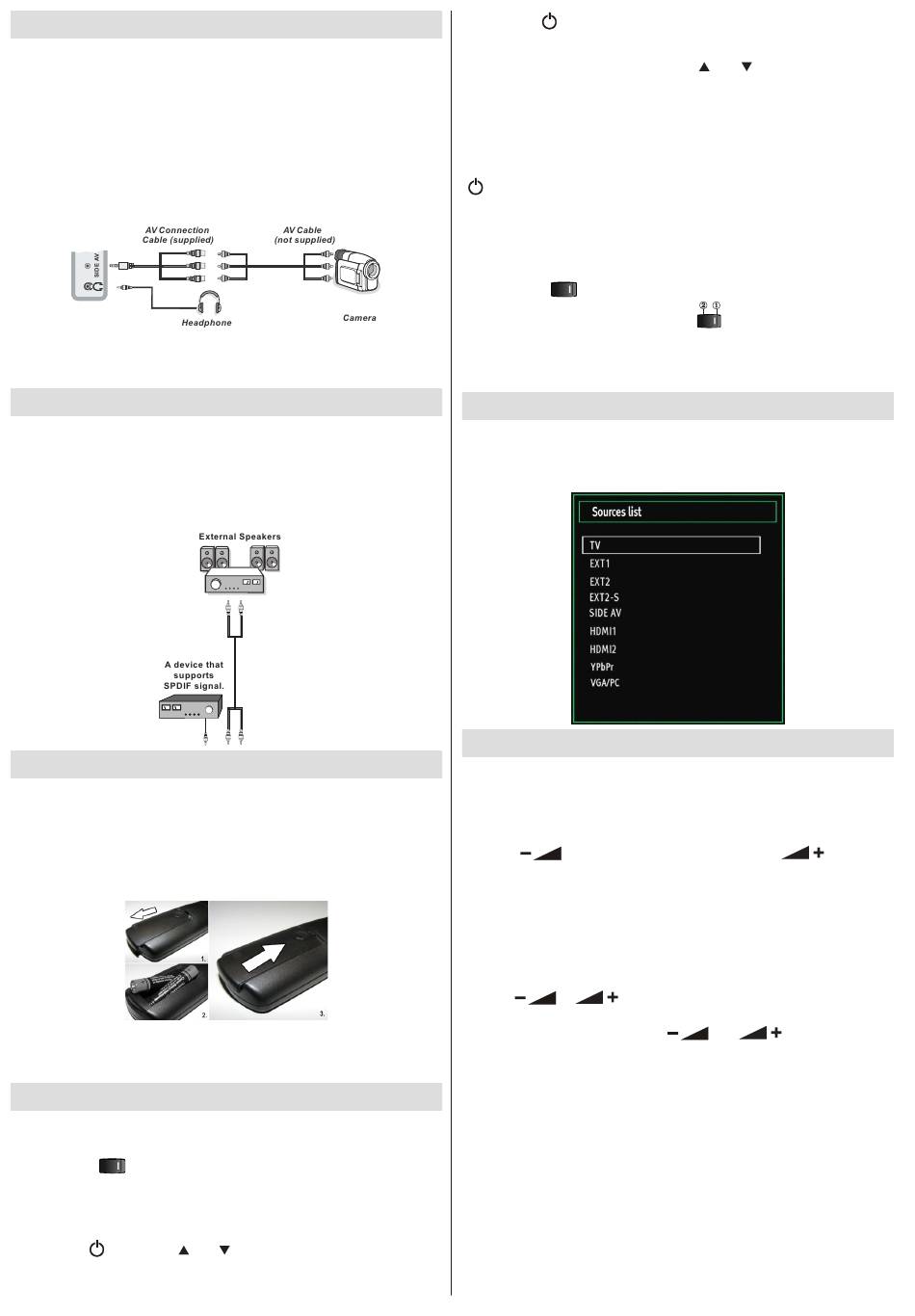

Using Side AV Connectors

You can connect a range of optional equipment to your LCD TV using
side connectors of the TV.
• For connecting a camcorder or camera , you should use
To do this, you must use the supplied video/audio connection cable.
First, plug single jack of the cable to the TV's AV IN socket (side).
Afterwards, insert your camera cable's (not supplied) connectors into
the plural part of the video/audio connection cable. Colours of the
connected jacks should match. See illustration below.
• Afterwards, you should switch to
selection in the following sections for more information.
• To listen the TV sound from headphones, you should connect headphones
to your TV by using the HEADPHONE jack as illustrated above.

Using Other Connectors

You can connect a range of optional equipment to your LED TV.
Possible connections are shown below. Note that cables shown in the
illustration are not supplied.
• For connecting a to a device that has SPDIF support, use an
appropriate SPDIF cable to enable sound connection.

Remote Control Handset

Inserting Batteries

• Remove the battery cover located on the back of the handset by
gently pulling backwards from the indicated part.
• Insert two AAA/R3 or equivalent type batteries inside. Observe the
correct polarity (+/-) when inserting batteries and replace the battery
cover.
Note: Remove the battery from remote control handset when it is not
to be used for a long period. Otherwise it can be damaged due to any
leakage of batteries. Remote range is approximately 7m/23ft.

Switching On/Off

To Switch the TV On

Connect the power cord to the 220-240V AC 50 Hz.
• Switch the " " button on the bottom right hand side under the
screen to position "|" so the TV will switch to standby mode. Then
the standby LED lights up.
• To switch on the TV from standby mode either:
• Press the " " button, CH / CH or a numeric button on the remote
control.
AV socket (side).
Side AV source. See the section Input
• Press the " " or +/- button on the TV.
• The TV will then switch on.
Note: If you switch on your TV via CH / CH buttons on the remote
control or on the TV set, the programme that you were watching last
will be reselected.
By either method the TV will switch on.

To Switch the TV to Standby

To s w i t c h t h e T V t o l o w p o w e r s t a n d b y p r e s s t h e
" " button on the remote control or right hand side of the TV.
Note: When the TV is switched to standby mode, standby LED can blink
to indicate that features such as Standby Search, Over Air Download
or Timer is active.

To Switch the TV Off

• Switch the " " button on the bottom right hand side under the
screen to position 2 as illustrated,
mains, the LED will go out.
• If the TV will not be used for a long period i.e. holidays, then unplug
the power cord from the mains socket.

Input Selection

Once you have connected external systems to your TV, you can switch
to different input sources. Press "SOURCE" button on your remote
control consecutively for directly changing sources.

Basic Operations

You can operate your TV using both the remote control and onset
buttons.

Operation with the Buttons on the TV

Volume Setting

• Press " " button to decrease volume or "
increase volume, so a volume level scale (slider) will be displayed
on the screen.

Programme Selection

• Press " P/CH +" button to select the next programme or "P/CH -" button
to select the previous programme.

Viewing Main Menu

• Press " " / "
In the Main menu select sub-menu using "P/CH -" or "P/CH +" buttons
and enter the sub-menu using "
the usage of the menus, refer to the menu system sections.

AV Mode

• Press the " TV/AV" button in the control panel on the TV to switch
between AV modes.

Operation with the Remote Control

• The remote control of your TV is designed to control all the functions of
the model you selected. The functions will be described in accordance
with the menu system of your TV.
Volume Setting
• Press " V+" button to increase the volume. Press "V-" button to
decrease the volume. A volume level scale (slider) will be displayed
on the screen.
English - 10 -
to isolate the TV from the
" buttons at the same time to view main menu.
" or " " buttons. To learn
" button to
