Disposable Junior Airway
The Junior Airway is designed for disposal after class
Fig 1
1a
5a

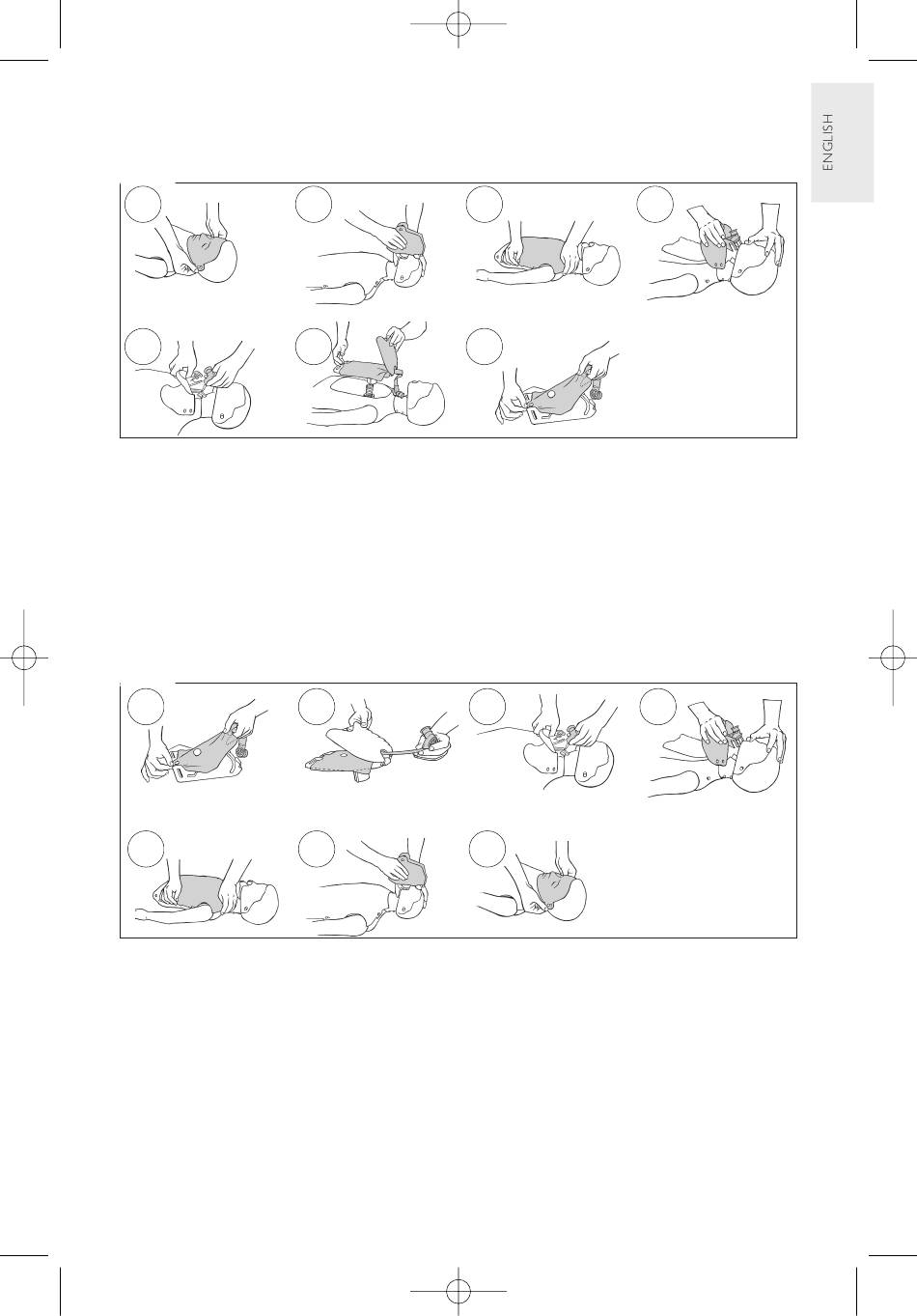

To remove (Fig. 1)
1. Detach the manikin face at each ear.
2. Lift manikin face off valve coupling.
3. Remove chest skin.
4. Lift off jaw from posts in head.
5. Remove valve.
6. Lift off rib plate.
7. Remove used airway and discard.
Fig 2
1b
5b
Sanitation
Sanitation of Manikin Faces, see separate sheet.
General manikin cleaning
Routine disinfection of the entire manikin is not
required, but periodic cleaning of the head, torso,
chest skin and training mat is recommended.
These should be washed with a warm soapy
solution, and then rinsed with a clean damp cloth.
14.12.2007 12:39
2a
6a
2b
6b
Side 5
3a
7a
To install (Fig. 2)
1. Attach lung to hook and lay lung flat on
chest plate.
2. Pull valve through rib plate. Attach rib plate.
3. Snap valve onto jaw.
4. Reattach jaw to posts in head.
5. Fasten chest skin onto its retainers.
6. Push face coupling into airway valve.
7. Fasten face onto retainers at each ear.
3b
7b
Proper care will maintain the appearance and
general condition of your Resusci Junior. Hand or
machine wash clothes with soap or laundry
detergent in water 40°C. Iron with warm iron.
May also be dry cleaned.
