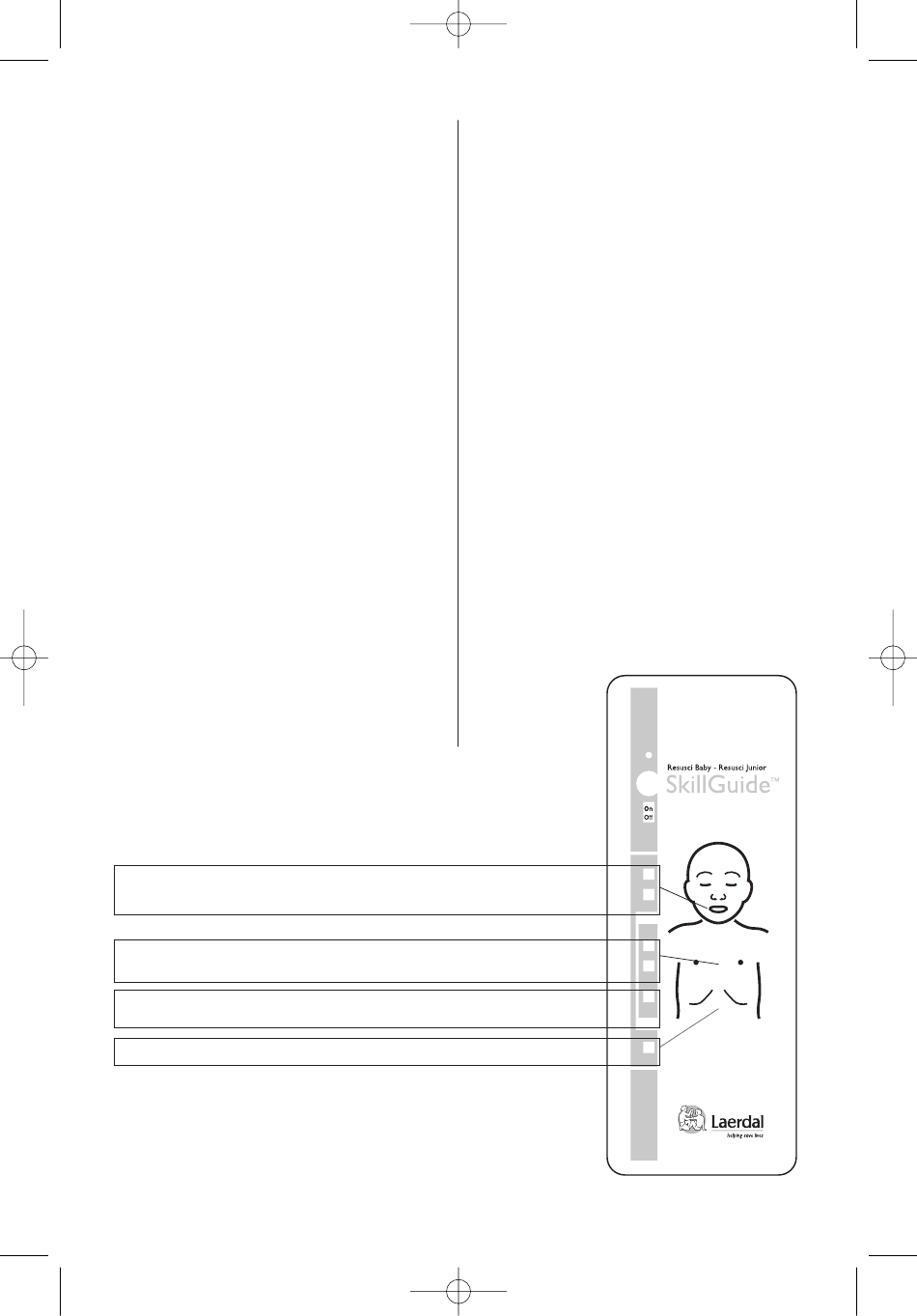

SkillGuide
Consistent and objective feedback on
performance during practice helps develop and
reinforce skills.The SkillGuide provides feedback
to the instructor and student to support the
student's initial skill development by means of a
colour light display.
Inflation
When lung inflation volume reaches 200 ml the
green signal light will be activated. If lung inflation
volume exceeds 300 ml, an orange warning light
is activated. A red warning light indicates an
inflation that is too rapid.
Chest compression
When the breast bone area of the chest is
depressed by a minimum of 50 mm, the green
signal light is activated.
Incorrect hand position
The sensor is located under the switch cover
mounted on the chest plate.The red warning light
will be activated if the chest is compressed with
hands placed outside the recommended area.
Providing the downward pressure is exerted on
the lower half of the sternum the red light will
not activate. However, if downward pressure is
exerted on the xiphoid sternum, on the upper
half of the sternum or on the chest wall away
from the sternum the red light will activate.
Inflation volume:
Compression depth:
Wrong hand position:
Too fast inflation
1. Measurement tolerance in the manikin +/- 15% in normal room temperature
14.12.2007 12:39
Light Indication
green correct
orange too much
green correct
red Pressure outside
of acceptable area
red
Side 4
To use
See Unpacking page 3.
The SkillGuide will turn "OFF" automatically if no
activity takes place for 5 minutes.
Note: if the SkillGuide is turned "ON" and the red
signal light for wrong hand position comes on the
SkillGuide is not completely plugged into the
manikin.
Power supply
The four 1.5V alkaline batteries, size C, will
provide approximately 125 hours of classroom
use.This will vary depending on user patterns and
the type of batteries.
Connection cable
This is permanently connected to the SkillGuide
and has an 8 pin male connector which is to be
connected to the manikin.The connector has
been moulded for proper orientation prior to
plugging it into the manikin's side.
Caution
Make sure the SkillGuide is unplugged from
manikin:
• When airway is changed, or
• When internal service is carried out.
1
Limits
200ml
350ml
≥50mm
