SAFETY WARNINGS
The system is not earthed. If mains operated equipment is connected
to the system then the external equipment must be earthed in
accordance with the manufacturer's instructions. Failure to comply
with this may cause the unit to become live and be a lethal hazard.
DO NOT USE the GatorCam4 system in potentially explosive
environments. This equipment is NOT approved for use in hazardous
Locations.
Pushrod reels are heavy. Use the wheels (Midi and Specialist
models) to assist transport. Observe heavy-lifting safety practices
when lifting the reel.
Foul water systems can be a source of biological hazards. Wear
appropriate protection when handling the GatorCam4 controller
and the pushrod reel and camera.
The camera will get hot during use. This is normal. Exercise care
when handling the camera at all times.
The mains power and charging cables are not waterproof and should
only be used in dry environments / indoors. The controller contains an
internal battery for IP53-rated weatherproof operation.
Always use the rod brake to prevent the rod causing damage or injury.
Read the full operation manual for full instructions, available on the
CD and our website.

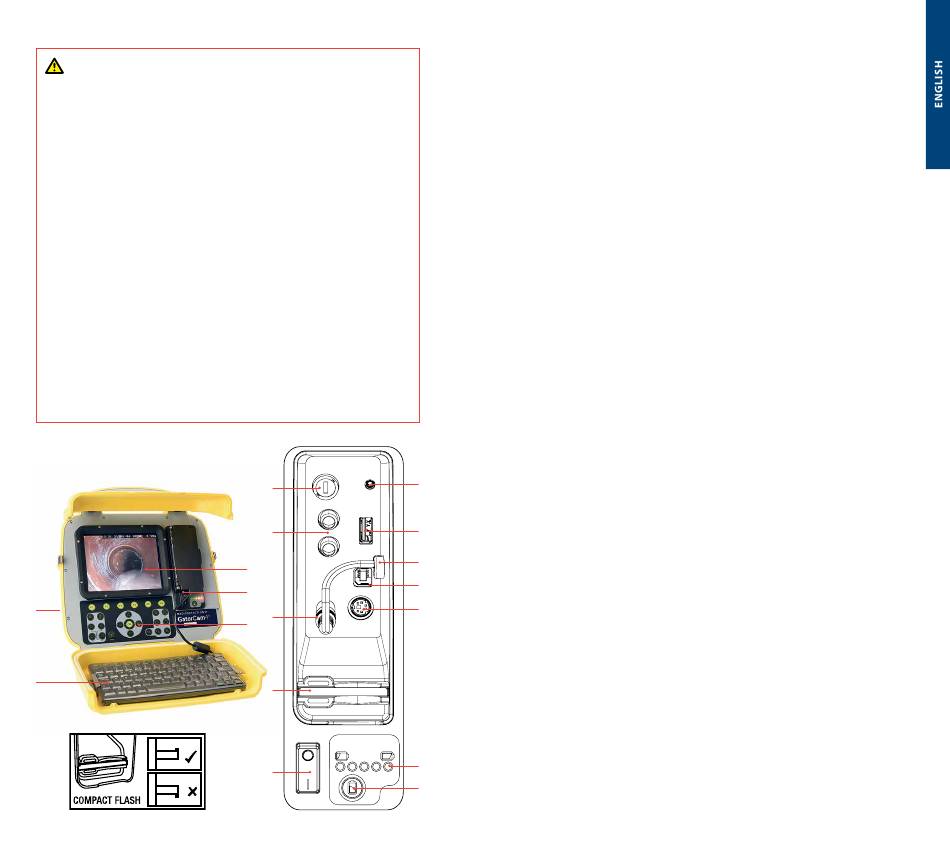

GatorCam4+ controller, with
internal battery power, illustrated
5
3
6
7
4
1
8
2
9
1
4
Gatorcam4 Controller
1 On/Off Switch.
2 Keypad and function keys: Allows the operator to select functions
and edit text entries.
3 Keyboard: Provides enhanced text entry capabilities and short-cuts
to access system functions.
4 Display: LCD screen shows image and various on-screen information
such as deployed rod length, operator generated titles, time and date.
5 Link Cable Socket (at rear of unit): Connector for the link cable.
6 Fuse Holder: 5mm x 20mm T3.15A 250V cartridge fuse.
7 RCA Video Jacks: Allows an external composite video source to be
displayed by the GatorCam4 controller or recorded onto Compact
Flash. GatorCam4 video can also be displayed or recorded on an
external device.
8 Power Socket: DC power input from vehicle supply, battery box or
mains adapter.
9 Compact Flash slot: Compact Flash for video recording and later
playback on the controller or PC. Also used for software upgrades
and storing diagnostic log files.
10 Keyboard Socket: Keyboard connector.
11 Audio Socket: Connection for headset using standard 2.5mm
connector.
12 PC socket: Type B USB connection allows file transfers for PC.
11
13 USB socket: Type A USB connection for USB flash drives. Memory
Sticks can be used for video recording and later playback on the
controller or PC. Also used for software upgrades and storing
13 diagnostic log files.
14 Internal battery power connector and charging plug
14
(GatorCam4+ only).
12
15 Battery Status Indicator (GatorCam4+ only). When the Battery
Status Check Button, 16, is pressed, this will display remaining charge.
10
From red lights only (low charge), to all lights (fully charged).
16 Battery Status Check Button (GatorCam4+ only).
15
16
