Anyplace Switch RF9575 User Guide
A Step-by-Step Guide for Installing and
Operating the Anyplace Switch
Interrupteur passe-partout RF RF9575
Guide de l'utilisateur
Un guide étape par étape pour l'installation et le
fonctionnement de l'interrupteur passe-partout
Interruptor Anyplace RF9575
Guía del usuario
Guía paso a paso para la instalación y la operación del
interruptor Anyplace

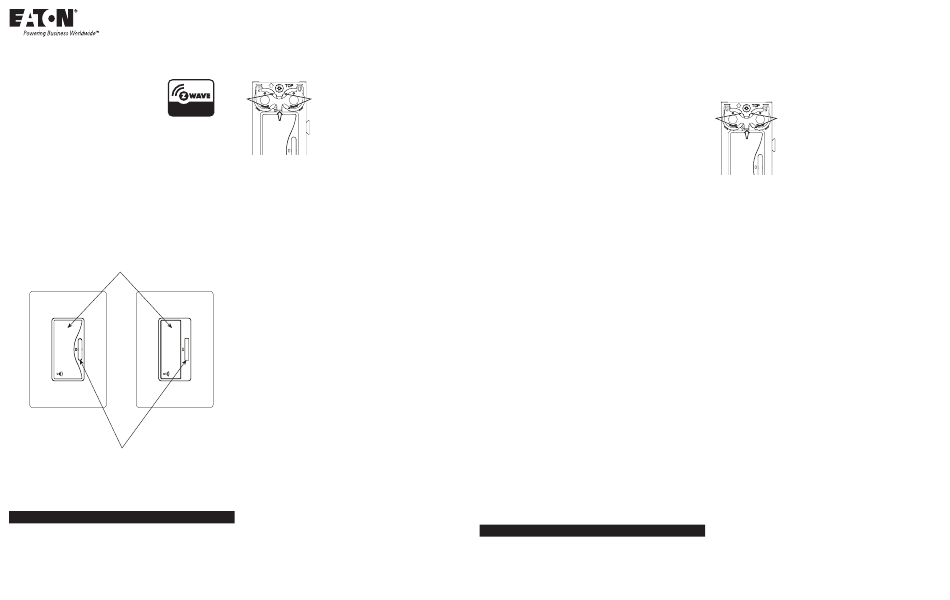

ON/OFF BUTTON
BOUTON MARCHE/ARRÊT
BOTÓN DE ENCENDIDO/APAGADO
Aspire Style
Decorator Style
Style Aspire
Style Décorateur
Estilo Aspire
Estilo Decorador
DIMMER BUTTON
BOUTON GRADATEUR
BOTÓN REGULADOR
ENGLISH
The RF9575 is a battery-operated wireless device that will operate as an
accessory or controller device in a Z-Wave network. It will control associated
dimmers or switches and their lighting loads. As a controller it will create a
network and add an ASPIRE RF switch or dimmer to control (On/Off/ Dim/
Brighten) the lights. You can create a 3-way where a second location is not
currently available without having to add new electrical wiring.
This product works with other Z-Wave products from different vendors and
product categories as part of the same network. This product is not a listening
node as it is a battery powered device and goes to sleep to conserve battery
life. Therefore it will not perform the repeater function typical of other
Z-Wave devices.
BATTERY INSTALLATION AND REPLACEMENT:
2 CR2025 batteries are included with each RF9575. Lift the battery latch with a
screwdriver to open the battery cover. Remove the plastic strips from under
the batteries. Observe polarity when installing the batteries. Be careful to insert
the batteries under the 4 small plastic tabs in
the battery compartment. Re-latch the battery
cover.
Plastic
Tabs x 4
After the batteries are successfully installed,
the LED on the RF9575 will blink for one minute
OPEN
to indicate the device in not included in the
Lift Latch to
RF network. The device will go to sleep after
Open Battery
Cover
one minute to conserve battery life. When not
installed, pressing the ON/OFF button again will
wake up the device, and the LED will resume
blinking for one minute to remind the installer
that the device is still not installed in the RF network. With normal usage (up to 20
keypresses per day) battery life is expected to be 1-2 years.
PHYSICAL INSTALLATION INSTRUCTIONS:
Attach the RF9575 to any flat surface using the double-sided tape provided, or
mount it to the wall using the screws and anchors provided. To install the RF9575
beside an already existing wall mounted device, use one RFBS22 inner wallplate
for every existing installed device and the appropriate multi-gang ASPIRE
wallplate (9521, 9522, 9523, 9524, 9525 or 9526). NOTE: Do not install an RF9575
over an electrical box. The device must be installed onto a flat surface. Do not
install on a metal surface since this will impede the RF signal.
Z-WAVE NETWORK INSTALLATION INSTRUCTIONS:
This product will operate in one of two modes: It may be added to a Z-Wave
network as an accessory device, or it may be used as a Z-Wave controller to
form a new small Z-Wave network.
INSTALLATION AS A CONTROLLER DEVICE:
The RF9575 can be used as a controller which can install and control other
Z-Wave devices such as switches, receptacles, or dimmers. All hard wired
devices must be physically installed and powered up first before using the RF9575
to access them.
To add a device to the network, follow these steps:
1. Click RF9575 On/Off button 3 times within 1 second. LED will start to blink very
rapidly.
2. Press install button on device to be added.
3. When installation is complete, the LED will quit blinking on the RF9575 and on
the installed device.
4. Repeat 1 - 3 for each additional device to be added. A maximum of 5 devices
can be added to the network.
To remove a device from the network, follow these steps:
1. Press and hold the RF9575 On/Off button for about 5 seconds until the LED
starts blinking very rapidly, then release the On/Off button.
2. Press install button on device to be removed.
3. When remove is complete. the LED will quit blinking on the RF9575, and the
LED on the uninstalled device will start blinking.
4. Repeat 1 - 3 for each additional device to be removed.
INSTALLATION AS AN ACCESSORY DEVICE:
The RF 9575 can be used as an accessory device which can be included in a new
or existing network by using your Z-Wave controller. To include as an accessory
device, select the command on your controller for inclusion (Install, Add Device,
Add Node, Include Device, etc.), then press the RF9575 on/off button one time to
include it in the network. The LED will blink a few times and then stop blinking
after the device is successfully included in the network.
After inclusion in a network, the RF9575 can then be associated with and control
up to 5 other hard-wired RF devices at one time. During the association process,
the Eaton Handheld or Table Top Controller (or other Z-Wave system controller if
so configured) will prompt the user to wake up the RF9575, which will then allow
the association process to occur. To wake the RF9575 press the dim down or up
button once. (For detailed instructions refer to the ASPIRE RF manual included
with the Handheld (RFHDCSG) or Table Top (RFTDCSG) controllers. Alternatively,
other Z-Wave control systems can be used to install the RF9575 into a Z-Wave
network. Please refer to the documentation for these systems.
To exclude this device from a Z-Wave network, select the command on your
Z-Wave controller for exclusion (Uninstall, Remove Device, Remove Node,
Exclude Device, etc.), then press the on/off button one time to exclude it from the
network. The LED will start blinking rapidly and then blink slowly about 10 times.
OPERATING INSTRUCTIONS:
• The blue LED indicator is normally OFF.
• The blue LED indicator will blink once when turning a device OFF.
• The blue LED indicator will come on for 2 seconds and then turn OFF when
turning a device ON.
• The ON/OFF switch on the RF9575 will turn the load ON/OFF when associated
with the RF9501 or RF9518 switch or other Z-Wave RF switches.
• The ON/OFF switch on the RF9575 will turn a receptacle ON/OFF when
associated with a Z-Wave RF receptacle such as the RFTR9505-T or other
Z-Wave RF receptacles.
• The ON/OFF switch on the RF9575 will turn the light ON/OFF when associated
with a Z-Wave RF Master Dimmer such as the RF9534-N, RF9535-N, RF9536-N,
RF9537-N, RF9540-N or other dimmers.
• The UP/DOWN dimmer buttons will control the light level when associated with
a Z-Wave RF Master Dimmer.
BUTTON FUNCTIONS REFERENCE FOR THE RF9575:
Install a Device - Click On/Off button 3 times within 1 second. Led will start to
blink very rapidly. Press install button on device. LED will quit blinking on RF9575
and installed device.
Uninstall a Device - Press and hold On/Off button until LED starts blinking very
rapidly and release. Then press install button on device (usually on/off button on
Eaton devices. LED will quit blinking on RF9575 and LED on uninstalled device will
start blinking.
Reset RF9575 to factory defaults - Press and hold On/Off button for about 10
seconds. At 5 seconds, LED will blink rapidly. At 10 seconds LED will blink slowly.
Release paddle and RF9575 will reset. This reset will only work if RF9575 has
been used as a controller and all other devices have been removed from the
network first.
On/Off - Press the On/Off button once. The installed devices will turn on or off
depending on their previous state.If no devices are installed in the network, the
LED will blink rapidly for about 3 seconds. This will also happen if the RF9575
cannot reach the devices for any reason. Possible reasons might be the devices
are not powered, perhaps due to a tripped circuit breaker, or if the RF9575 cannot
reach the devices due to poor RF conditions such as low signal strength.
Dimming - Pressing and holding the dimming button will cause installed dimmer
devices to raise or lower the dimming level. Releasing the button will stop
this action.
Federal Communications Commission Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: 1) This device may not cause harmful interference, and
2) This device must accept any interference received, including interference
that may cause undesired operation. NOTE: This equipment has been tested and
found to comply with the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio com-
munications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more
of the following measures: reorient or relocate the receiving antenna; increase
the separation between the equipment and receiver; or connect the equipment
into an outlet on a circuit different from that to which the receiver is connected.
FCC CAUTION:
Any changes or modifications not expressly approved by Eaton Residential and
Wiring Devices could void the user's authority to operate the equipment. IN
U.S.A.: 203 Cooper Circle Peachtree City, GA 30269 866-853-4293
www:cooperwiringdevices.com
FRANÇAIS
L'interrupteur RF9575 est un dispositif sans fil alimenté par piles qui fonctionne
comme accessoire ou contrôleur sur un réseau Z-Wave. Il contrôle les
gradateurs ou interrupteurs associés ainsi que leur charge d'éclairage. En tant
que contrôleur, il forme un réseau et ajoute un interrupteur ou un gradateur
ASPIRE RF afin de contrôler (marche/arrêt/gradation) l'éclairage. Vous pouvez
créer un interrupteur à 3 voies lorsqu'un second emplacement n'est toujours pas
disponible sans avoir à ajouter de câblage électrique.
Ce produit fonctionne avec d'autres produits Z-Wave de vendeurs différents et
d'autres catégories de produits sur le même réseau. Ce produit n'est pas
un nœud d'écoute puis qu'il est alimenté par piles et se met en veille afin de
préserver la durée de la pile. Il n'a donc pas la fonction de répéteur
émetteur-récepteur typique d'autres appareils Z-Wave.
INSTALLATION ET REMPLACEMENT DE LA PILE :
2 piles CR2025 sont comprises avec chaque interrupteur RF9575. Soulevez le
loquet du compartiment à piles à l'aide d'un tournevis pour en ouvrir le
couvercle. Retirez les languettes de plastiques sous les piles. Suivez les
indications de polarité lors de l'installation des
piles. Assurez-vous d'insérer les piles sous
4 languettes
les 4 petites languettes de plastique dans le
de plastique
compartiment à piles. Reverrouillez le couvercle
OPEN
des piles. Après l'installation réussie des piles,
Soulevez le
la DEL sur l'interrupteur RF9575 clignote
loquet pour
ouvrir le
pendant une minute pour indiquer que l'appareil
couvercle
ne fait pas partie du réseau RF. Le dispositif se
des piles
met en veille après une minute afin de
préserver la durée des piles. Lorsque le
dispositif n'est pas installé, appuyer sur le bouton MARCHE/ARRÊT de nouveau
réveille l'appareil et la DEL recommence à clignoter pendant une minute pour
rappeler à l'installateur que l'appareil n'est pas installé sur le réseau RF. Pour un
usage normal (jusqu'à 20 pressions de touche par jour), la durée de vie de la pile
devrait être de 1 à 2 ans.
INSTRUCTIONS D'INSTALLATION PHYSIQUE :
Fixez l'interrupteur RF9575 à n'importe quelle surface plate à l'aide du ruban
adhésif double face fourni ou installez-le au mur à l'aide des vis et des chevilles
fournies. Pour installer l'interrupteur RF9575 à côté d'un dispositif déjà fixé au
mur, utilisez une plaque murale intérieure RFBS22 pour tous les dispositifs déjà
installés et la plaque murale à pièces multiples ASPIRE appropriée (9521, 9522,
9523, 9524, 9525 ou 9526). REMARQUE : N'installez pas un interrupteur RF9575
sur une boîte électrique. Le dispositif doit être installé sur une surface plate. Ne
l'installez pas sur une surface en métal puisque cela risque de gêner le signal RF.
INSTRUCTIONS D'INSTALLATION DU RÉSEAU Z-WAVE :
Ce produit fonctionne dans l'un des modes suivants : Il peut être ajouté à un
réseau Z-Wave en tant qu'accessoire ou il peut être utilisé comme contrôleur
Z-Wave afin de former un nouveau petit réseau Z-Wave.
INSTALLATION EN TANT QUE CONTRÔLEUR :
L'interrupteur RF9575 peut être utilisé en tant que contrôleur pouvant installer
et contrôler d'autres appareils Z-Wave tels que des interrupteurs, des prises et
des gradateurs. Tous les appareils câblés doivent être physiquement installés et
allumés avant que l'interrupteur RF9575 ne puisse être utilisé pour les accéder.
Pour ajouter un appareil au réseau, suivez ces étapes :
1. Appuyez sur le bouton Marche/Arrêt de l'interrupteur RF9575 3 fois en l'espace
d'une seconde. La DEL commence à clignoter très rapidement.
2. Appuyez sur le bouton d'installation de l'appareil à ajouter.
3. Lorsque l'installation est terminée, la DEL arrête de clignoter sur l'interrupteur
RF9575 et sur l'appareil installé.
4. Répétez les étapes 1 à 3 pour chaque appareil supplémentaire à ajouter. Un
total de 5 appareils peut être ajouté au réseau.
Pour retirer un appareil du réseau, suivez les étapes suivantes :
1. Appuyez sur le bouton Marche/Arrêt de l'interrupteur RF9575 et maintenez-le
enfoncé pour environ 5 secondes jusqu'à ce que la DEL commence à clignoter
très rapidement, puis relâchez le bouton marche/arrêt.
2. Appuyez sur le bouton d'installation de l'appareil à retirer.
3. Lorsque le retrait est terminé, la DEL arrêtera de clignoter sur l'interrupteur
RF9575 et celle de l'appareil désinstallé commencera à clignoter.
4. Répétez les étapes 1 à 3 pour chaque appareil supplémentaire à retirer.
INSTALLATION EN TANT QU'ACCESSOIRE :
L'interrupteur RF9575 peut être utilisé en tant qu'accessoire pouvant faire partie
d'un réseau nouveau ou existant par l'entremise du contrôleur Z-Wave. Pour
l'inclure en tant qu'accessoire, sélectionnez la commande d'inclusion sur votre
contrôleur (installation, ajout d'un appareil, ajout d'un nœud, inclusion, etc.), puis
appuyez une fois sur le bouton de marche/arrêt de l'interrupteur RF9575 pour
l'inclure dans votre réseau. La DEL clignote quelques fois puis s'arrête une fois
que l'appareil est ajouté au réseau avec succès.
Après son inclusion au réseau, l'interrupteur R9575 peut être associé
simultanément à un maximum de 5 autres appareils câblés pour les contrôler.

Publicité

loading

Sommaire des Matières pour Eaton RF957

  • Page 1 RFBS22 inner wallplate Eaton devices. LED will quit blinking on RF9575 and LED on uninstalled device will usage normal (jusqu’à 20 pressions de touche par jour), la durée de vie de la pile for every existing installed device and the appropriate multi-gang ASPIRE start blinking.
  • Page 2 RF Z-Wave. crear 3 vías en las que una segunda ubicación no esté disponible asociación, el controlador Eaton portátil o para mesa (u otro controlador de o la televisión, lo que se puede determinar apagando y encendiendo el equipo, • L’interrupteur marche/arrêt du RF9575 allume et éteint les lampes lorsqu’il est actualmente sin tener que agregar un nuevo cableado eléctrico.
  • Page 3 Printed front and back. Dimensions are 17”W x 11”H in 4 panels, each panel 3.875”W x 10”H. Horizontal Z fold in thirds, then vertical Z fold in thirds. Final size is 2.75”W x 4.25”H. With EATON logo facing up.
