RDI TITAN PRO RAIL Instructions D'installation page 2

LEVEL RAIL
Warning: Always wear safety goggles.
Titan Pro Rail exceeds International Building Code and International Residential Code requirements to be used as a guard. For technical
details, please contact our customer service department at (877) 420-7245.
NOTE: Check with your local building code office for design load requirements for guard rails and bottom space requirements. All supporting
structures should be built in accordance with applicable building codes.
LIMITED WARRANTY
To obtain and review a copy of the warranty please go to: rdirail.com/warranty. You can also contact (877) 420-7245 or write to:
RDI Warranty, 545 Tilton Road, Egg Harbor City, NJ 08215 to obtain a copy of the warranty.

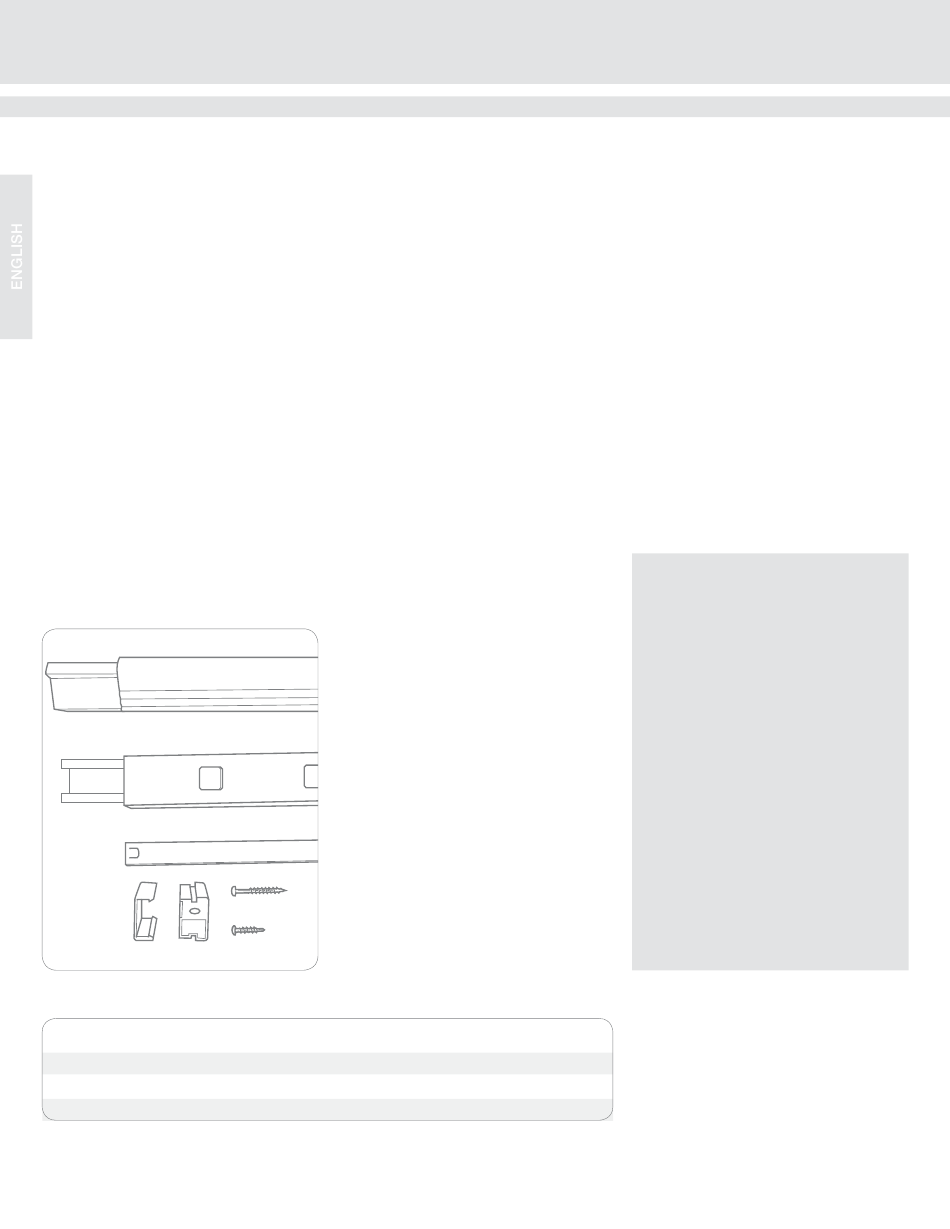

COMPONENT LIST:
Check the kit to ensure all components are included.
B
A
C D
E
F
RAIL
LENGTH
6' Kit
8' Kit
10' Kit
2
A) Aluminum Top Rail Stiffener – 1
B) Vinyl Top Rail – 1
C) Aluminum Bottom Rail Stiffener – 1
D) Vinyl Bottom Rail – 1
E) Balusters – (see chart below)
F) 2-Piece Support Foot – 1
G) Rail Support Screw – 1
H) Set Screw – 1
G
H
1" SQUARE BALUSTERS
PER KIT
15
20
25
1 ¼" SQUARE BALUSTERS
PER KIT
14
19
24
TOOLS NEEDED:
– Safety goggles
– Tape measure
– Pencil
– Level
– Power screwdriver/drill
– Power saw
– Chisel or utility knife
– Hammer
– Straight edge/ruler/triangle
– Vinyl adhesive
– 3 / " diameter fasteners
8
– Socket wrench
