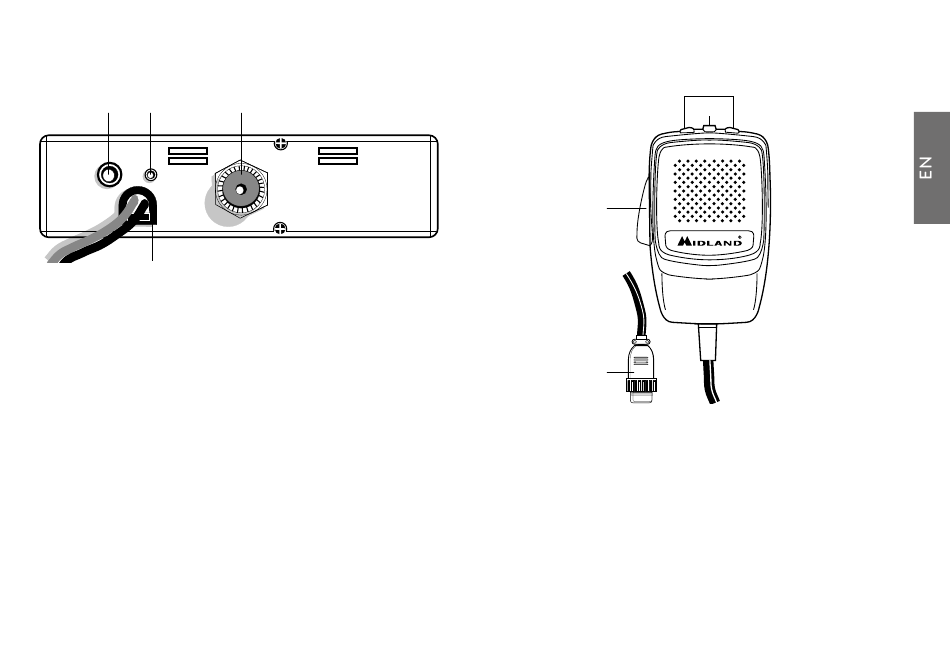

Rear panel

13 12
EXT
S. METER
14
11. Antenna connector (SO239 connector type).
12. S. Meter jack: it allows an external "S. Meter" connection.
13. "EXT" jack: external loudspeaker jack (the internal loudspeaker is
excluded).
14. Power 12.6/24V: power supply cable.
11
ANTENNA

Microphone

1
4
1. PTT: transmission button
2. UP/DOWN buttons: manual channel selector
3. LOCK button: it allows you to lock the UP/DOWN buttons.
4. 6 pin microphone connector
