4. PARTS LIST
(Ref. to Fig. 3)
Code N° Item
6060120 01 COUPLER Q14-MS
6120193 02 CYLINDER
6520030 03 RAM RETURN SPRING
6362020  05 SEAL
6580142 06 PLATE
6340081 07 M 6x6 GRUB SCREW
6520861 08 SPRING
6600015 09 PIN
6580041 10 PLATE
6900629 11 SCREW
6040556 12 RAM GUIDING RING
6340041 13 M 5x8 GRUB SCREW
The items marked () are those Cembre recommends replacing if the head is disassembled.
These items are supplied on request in the "RHM50 Spare Parts Package".
The guarantee is void if parts used are not Cembre original spares.
When ordering spare parts always specify the following:
- code number of item
- name of item
- type of tool
- tool serial number
5. RETURN TO Cembre FOR OVERHAUL
In the case of a breakdown contact our Area Agent who will advise you on the problem and give
you the necessary instructions on how to dispatch the tool to our nearest service Centre; if possible,
attach a copy of the Test Certifi cate supplied by Cembre together with the tool or fi ll in and attach
the form available in the "ASSISTANCE" section of the Cembre website.
5
DESCRIPTION

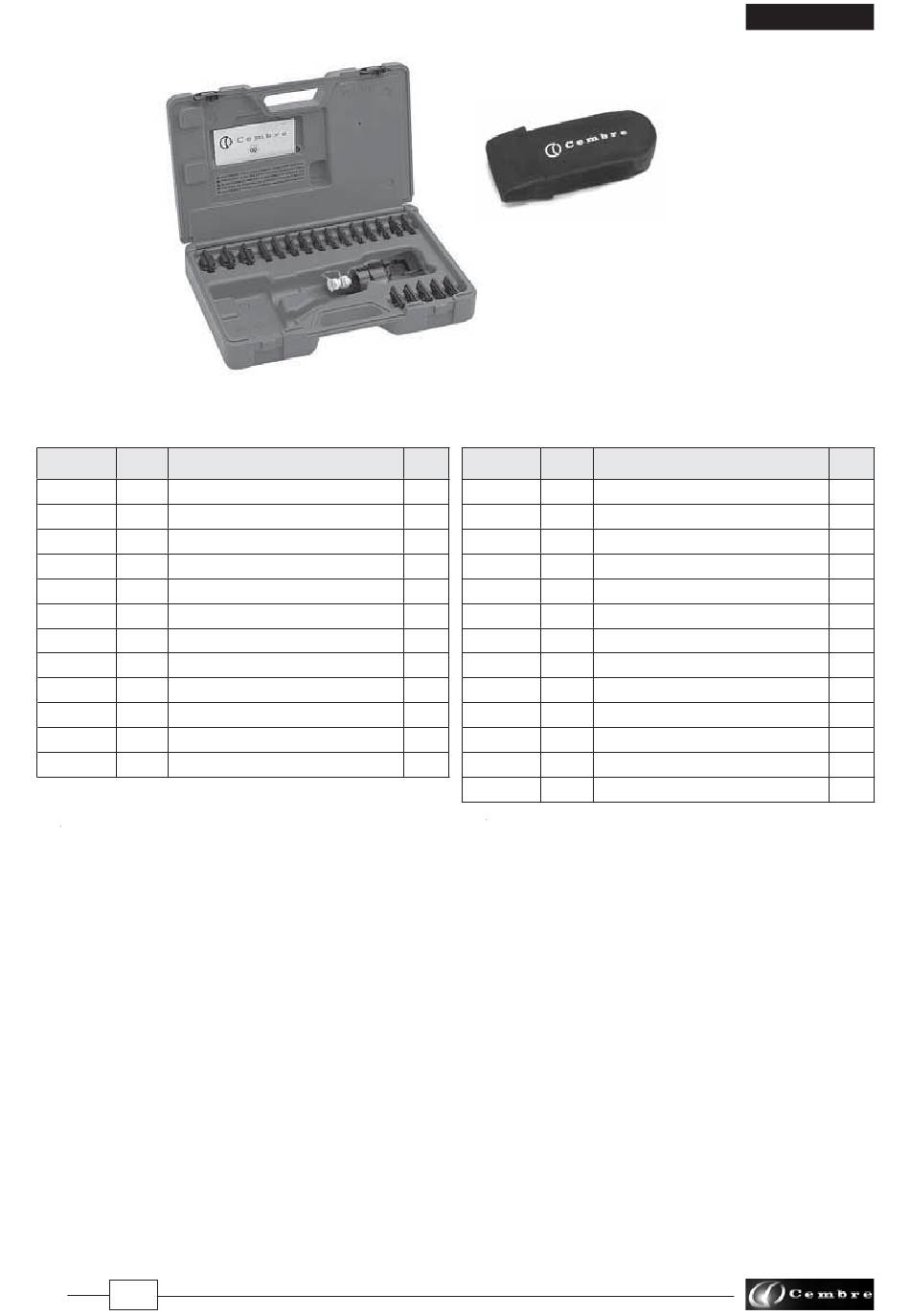

FIG. 1 "VAL P1" PLASTIC CASE
Qty Code N° Item
6362098  15 0-RING SEAL
1
1 6620490 16 RAM
1 6232001 17 LABEL (TG. 0350)
1 6650118 18 Ø 2,5x3,5 RIVET
1 6232285 19 METAL LABEL (TG. 0485)
1 6780219 20 LOWER DIE HOLDER
1 6520382 21 SPRING
1 6860054 22 HEAD
1 6580043 23 LOCKING PLATE
1 6520565 24 SPRING
1 6900025 25 M 3x8 SCREW
1 6800186 26 PROTECTION CAP

6000016
"007" CANVAS BAG
DESCRIPTION
SPARE PARTS PACKAGE
ENGLISH
Qty
1
1
1
2
1
1
2
1
1
2
2
1
