13 Terminal assignments, EduKit PA Advanced

Terminal Device
I0 Flow sensor, switching output
I1 Float switch LA+
I2 Float switch LS-
I3 Capacitive proximity sensor
I4 Capacitive proximity sensor
I5 Sensor box BG15 with indicator
I6 Sensor box BG15 with indicator
Q0 Load relay
Q2 Change-over relay
Q3 Motor, pump P101
Q5 5/2W solenoid valve, spring-returned
Digital inputs and outputs, I/O terminal (1)
Terminal Device
8 Ultrasonic sensor
7 Flow sensor
15 Pressure sensor
1 Pump
Analogue inputs and outputs, analogue terminal (2)

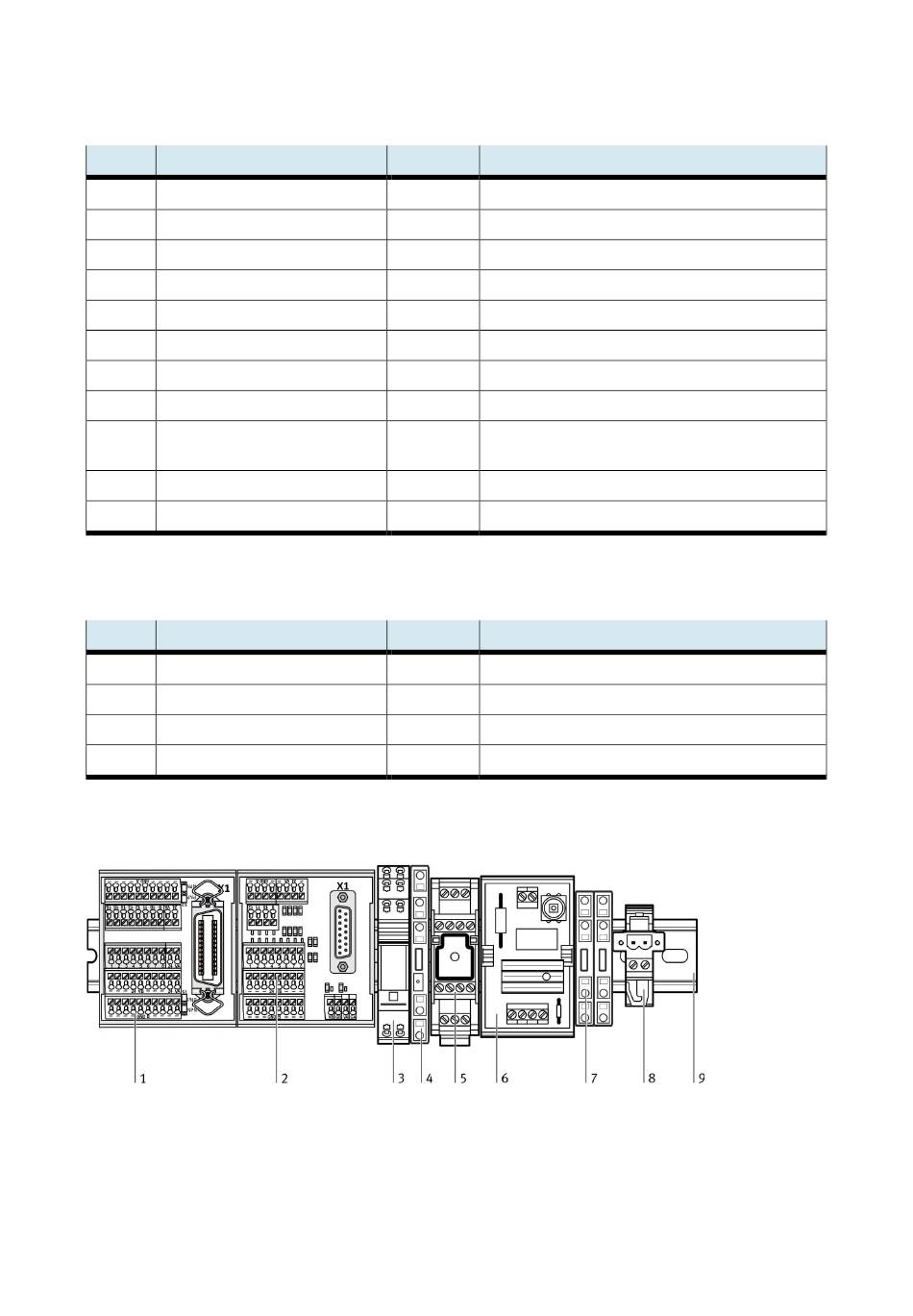

1: I/O terminal XD1; 2: analogue terminal XD3; 3: relay, 2 switch-over contacts KF1; 4: relay, 1 switch-over contact KF2;
5: motor controller QA1; 6: starting current limiter QA0; 7: PE terminals XE0; 8: motor terminal XD20; 9: top hat rail
Complete assignment plan
© Festo Didactic 746310
Abbreviation Note
-BF2_GW limit value, adjustable at sensor display
-SG11 Optional
-SG12 Optional
-BG13 Minimum level, upper tank
-BG14 Maximum level, lower tank
-BG15_cl Optional, 2-way ball valve V107, closed
-BG15_op Optional, 2-way ball valve V107, open
-KF2 activates-MB2 2/2-way solenoid valve V102
-K1 Relay = 0: pump is binary controlled
Relay = 1: pump is analogue controlled with 0 to 10 V
-MA1 ON/OFF, supply with motor controller
-MB7 activates rotary drive MM7 for 2A-way ball valve V107
Abbreviation Note
-BL1 Analogue input 0-10 V DC, level height 0...220 mm (0-2,7l)
-BF2 Analogue input 0-10 V DC, flow rate 0...10 l/min
-BP3 Analogue input 0-10 V DC, pressure 0...400 mbar
-P101 Analogue output 0-10 V DC, manipulated value 0...100%
