SPIKES-SPIDER ALPINE Instructions De Service page 8

Adjustments

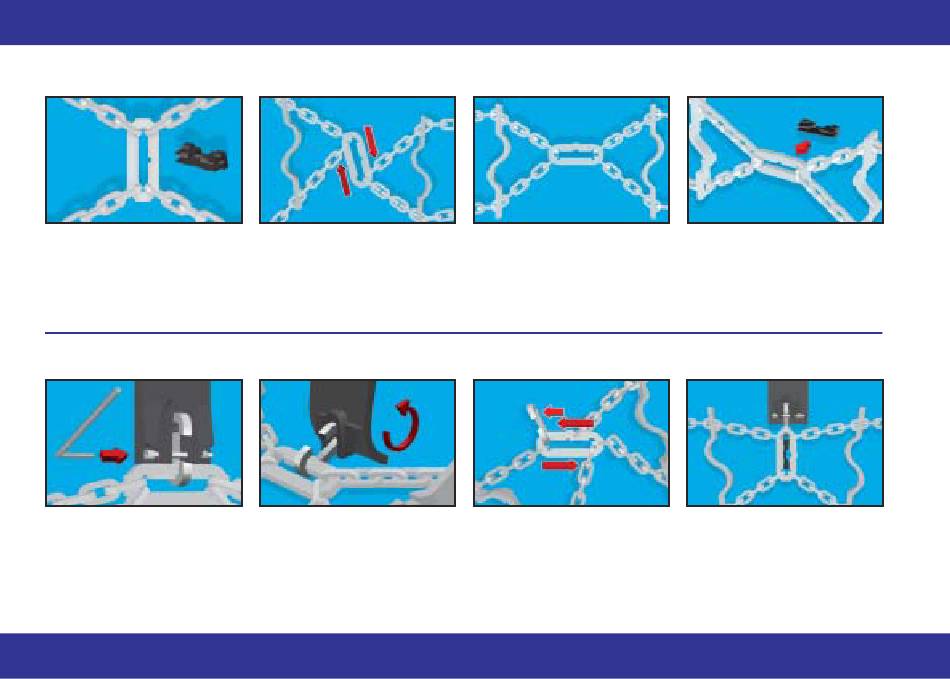

Adjusting the chain length at the adjustment joint
A
B
Press out safety clip (A).
Picture: Adjustment joint (B) in
position "short".
Adjusting the chain length at the synthetic bow
Press out safety clip (A).
Unscrew the nut and pull out
the screw hereafter.
Picture: Adjustment in posi-
tion "long".
english
To increase the diameter of
the chain move the left chain
segment below upward and
the right upper chain segment
downward.
D
B
Tilt the synthetic bow (D)
towards the adjustment joint
(B) and remove the synthetic
bow.
Adjustment joint in position
"long".
C
Slide the connecting hook (C) to
the left and the left chain seg-
ment from the left to the right.
Shift the upper right chain seg-
ment from the right to the left
afterwards.
Insert safety clip.
Hook in the connecting hook
into the synthetic bow, fasten it
with the screw and the nut and
insert the safety clip.
Picture: Adjustment joint in posi-
tion "short".
