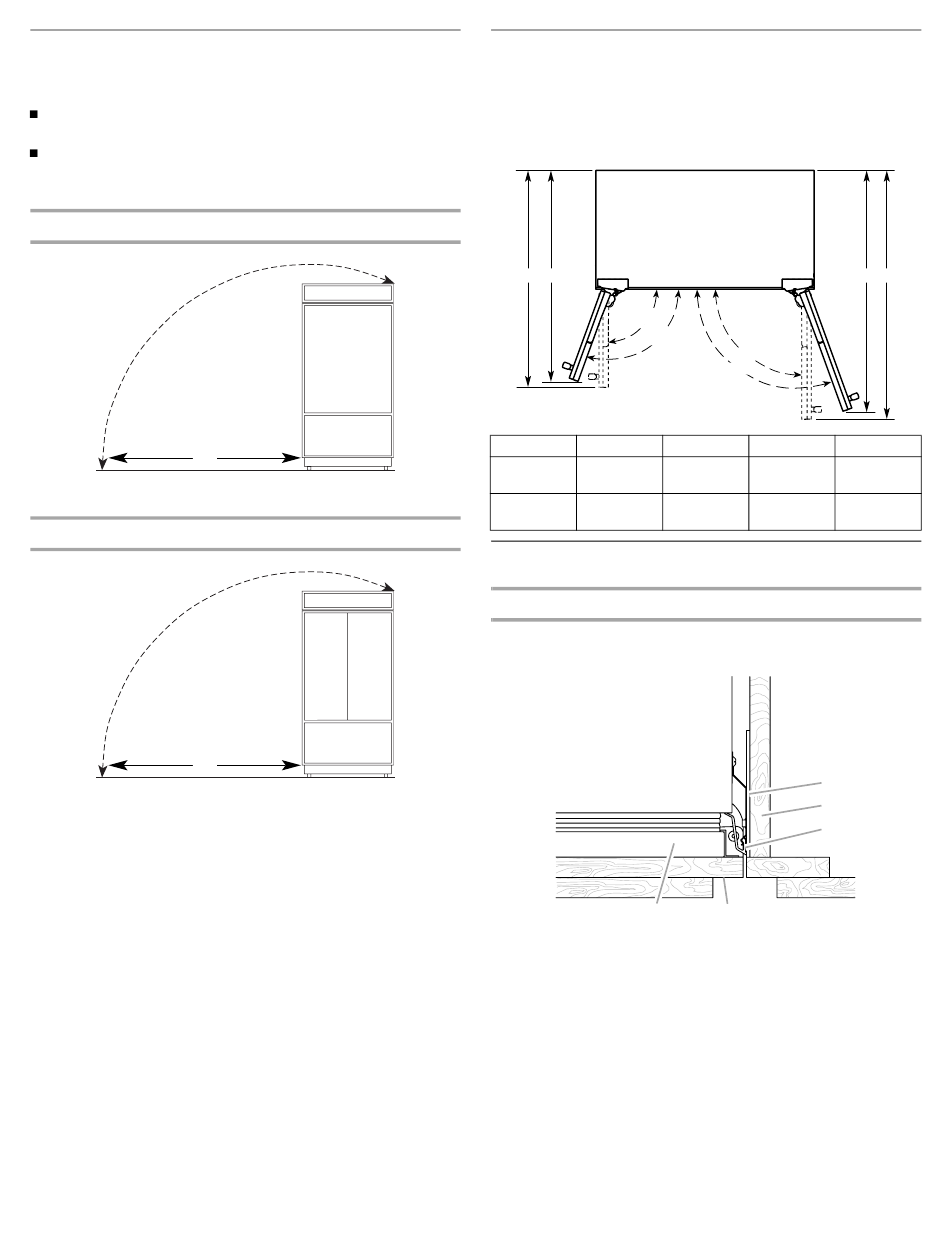

Tipping Radius
Be sure there is adequate ceiling height to stand the refrigerator
upright when it is moved into place.
The dolly wheel height must be added to the tipping radius
when a dolly is used.
If needed, the tipping radius can be reduced. See "Reduce
Tipping Radius."
NOTE: Tip on side only.
Side Tipping Radius (36" [91.4 cm] Models)
A
A. 88 ⁷⁄₈ " (225.7 cm)
Side Tipping Radius (42" [106.7 cm] Models)
A
A. 91 ³⁄₈ " (232.1 cm)
12
Door Swing Dimensions
The location must permit both doors to open to a minimum of 90°.
Allow 4¹⁄₂" (11.4 cm) minimum space between the side of the
refrigerator and a corner wall.
NOTE: More clearance may be required if you are using custom
wood overlay panels, custom handles, or extended handles.
A
B
90˚
110˚
Model
A
58 ³⁄₄"
56 ⁵⁄₈"
36
(149.2 cm)
(143.8 cm)
42 ³⁄₄"
42
44"
(111.8 cm)
(108.6 cm)
Cabinet and Panel Installation Options
Cabinet Depth - 25" (63.5 cm)
Framed Cabinetry
Top View
A
A. Refrigerator door
B. Overlay panel
C. Side trim
C D
90˚
110˚
B
C
D
56 ⁵⁄₈"
58 ³⁄₄"
(143.8 cm)
(149.2cm)
42 ³⁄₄"
44"
(108.6 cm)
(111.8 cm)
E
D
C
B
D. Adjacent cabinet
E. Grille bracket
