ELECTRICAL DEVICES

Remove the saddle by sliding it backwards after turning the fixing screw 1/4 of a
turn anticlockwise.
WARNING
To avoid damage to the electrical equipment, never disconnect the cables while the
engine is running.

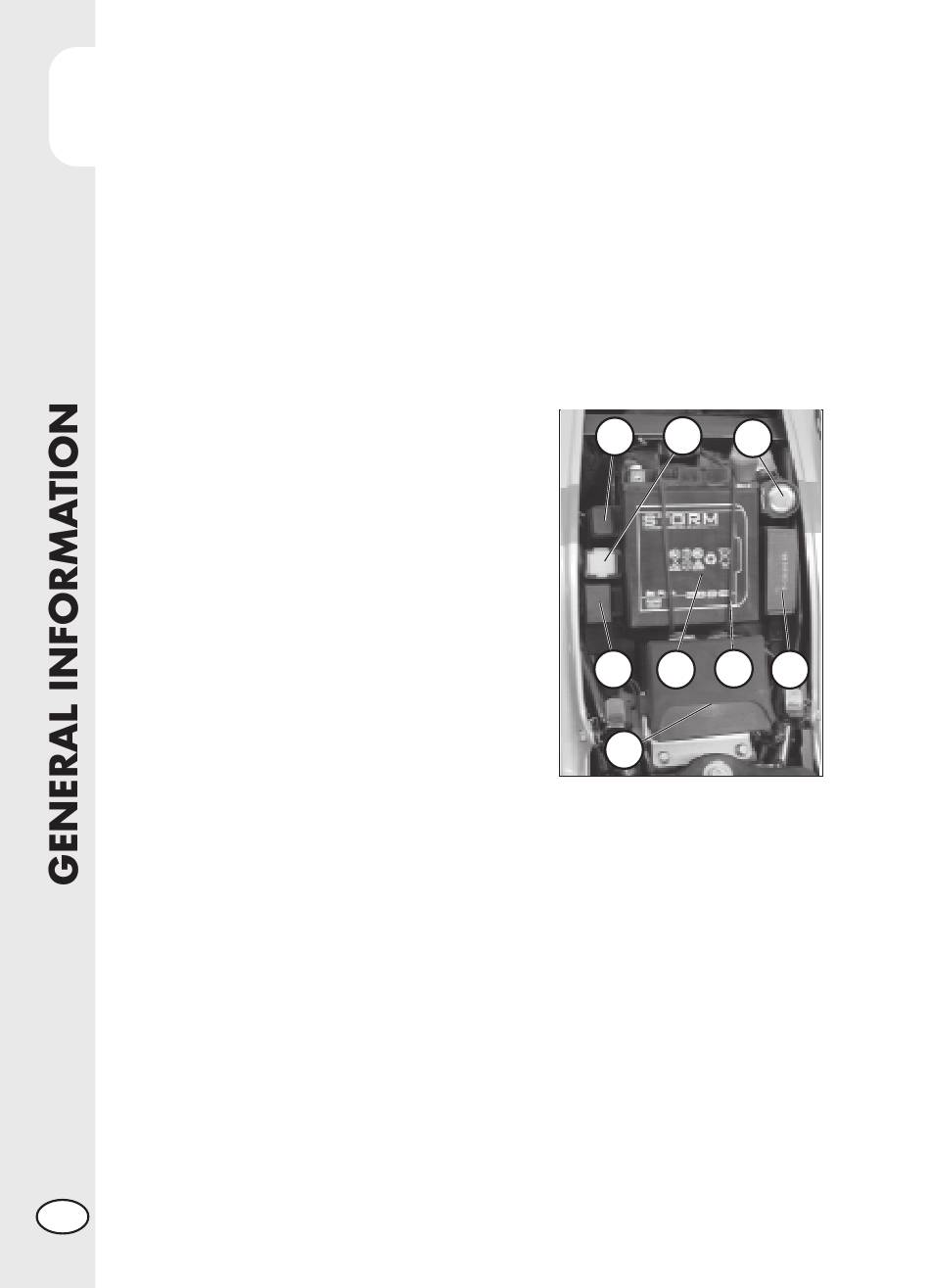

STAND RELAY A
FUSE B - two 20A
A B
E
WARNING
Before you replace the blown fuse, trace
and eliminate the failure that caused the
blowing. Never replace a fuse with a
different material (e.g. a length of wire).
Check the fuse in case of starting and
lighting problems.
C H
G F
FLASHER UNIT C
D
ELECTRONIC CONTROL UNIT D
STARTING RELAY E
VOLTAGE REGULATOR F
