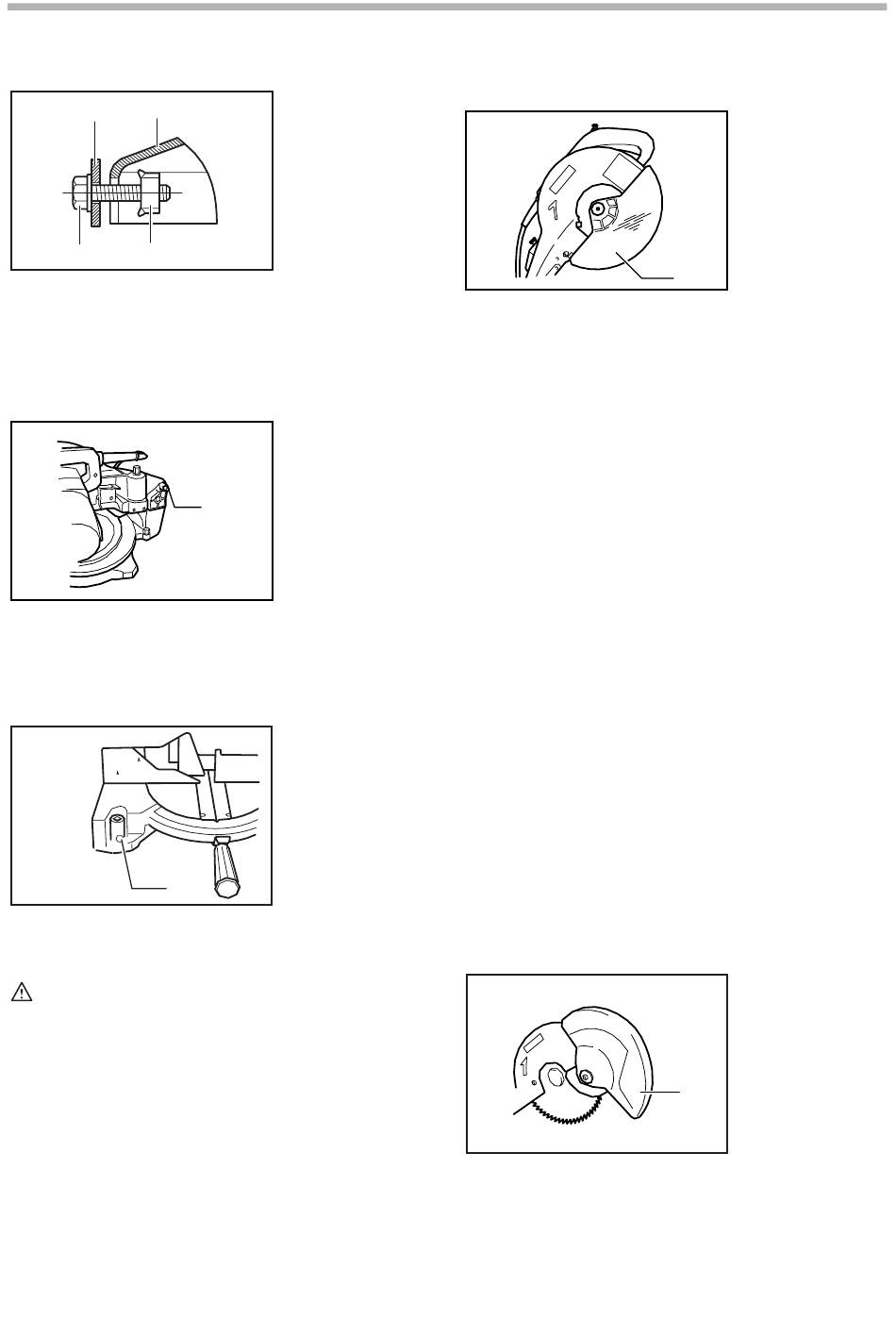

Bench mounting

When the tool is shipped, the handle is locked in the low-
ered position by the stopper pin. Release the stopper pin
by lowering the handle slightly and pulling the stopper
pin.
This tool should be bolted with two bolts to a level and
stable surface using the bolt holes provided in the tool's
base. This will help prevent tipping and possible personal
injury.
1

FUNCTIONAL DESCRIPTION

CAUTION:
• Always be sure that the tool is switched off and
unplugged before adjusting or checking function on
the tool.
001832
1. Auxiliary plate
2. Base
3. Hex bolt
4. Nut
001792
1. Stopper pin
1
001856
1. Bolt

Blade guard

When lowering the handle, the blade guard rises auto-
matically. The guard is spring loaded so it returns to its
original position when the cut is completed and the han-
dle is raised. NEVER DEFEAT OR REMOVE THE
BLADE GUARD OR THE SPRING WHICH ATTACHES
TO THE GUARD.
In the interest of your personal safety, always maintain
the blade guard in good condition. Any irregular opera-
tion of the blade guard should be corrected immediately.
Check to assure spring loaded return action of guard.
NEVER USE THE TOOL IF THE BLADE GUARD OR
SPRING ARE DAMAGED, FAULTY OR REMOVED.
DOING SO IS HIGHLY DANGEROUS AND CAN CAUSE
SERIOUS PERSONAL INJURY.
If the see-through blade guard becomes dirty, or sawdust
adheres to it in such a way that the blade and/or work-
piece is no longer easily visible, unplug the saw and
clean the guard carefully with a damp cloth. Do not use
solvents or any petroleum-based cleaners on the plastic
guard.
If the blade guard is especially dirty and vision through
the guard is impaired, use the supplied socket wrench to
loosen the hex bolt holding the center cover. Loosen the
hex bolt by turning it counterclockwise and raise the
blade guard and center cover. With the blade guard so
positioned, cleaning can be more completely and effi-
ciently accomplished. When cleaning is complete,
reverse procedure above and secure bolt. Do not remove
spring holding blade guard. If guard becomes discolored
through age or UV light exposure, contact a Makita ser-
vice center for a new guard. DO NOT DEFEAT OR
REMOVE GUARD.
5
001860
1. Blade guard
1
001782
1. Blade guard
1
