Once need to replace, replace it by special filter for the machine.
6) Back label
7) LCD display (Liquid crystal display)

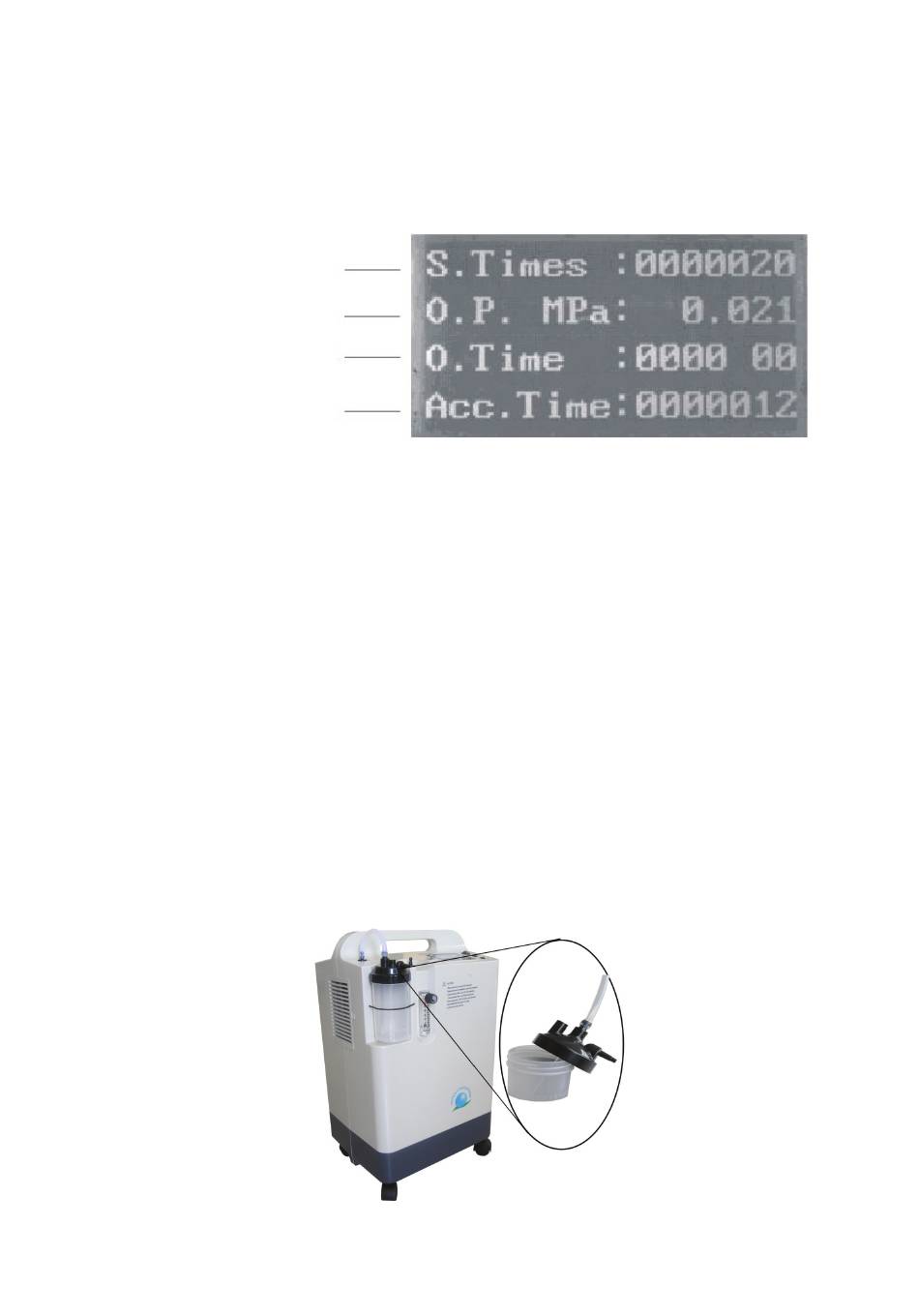

a.It can display the following diagram 3.
b.At the beginning of starting the machine, the LCD screen is bright, after 15 minutes it will return to screen saver
mode. But if you press the right key during working, the screen will bright again.
Switch times
Operating Pressure
Operating time / timing
Accumulating Time
Diagram 3
8) Timing keys
As showing in Diagram 1: "+"."-" These two keys used for timing. Press "+"button,
increase timing by 10 minutes step. Press "-"button, decrease timing by 10 minutes step. When press"-" button till 0
minute, machine will turn off by itself, at this time press the "+"button, machine will restart.
9) Humidifier
Humidifier which used for humidifying oxygen and preventing throat and nasal mucosa stimulated by dry oxygen and
dry hard sputum difficult to spit out.
10) Power socket
11) Fuse

Operation steps

1. As showing in Diagram 4: Pull off the silicone tube as black arrows direction ,which is connected with oxygen
output ;then take down the humidifier bottle along clockwise direction of the red arrow, Fill in with distilled water or
cooling boiled water Between min scale and max scale, then screw down the bottle. At last put the silicone tube back
connect to the oxygen output.
Diagram 4
