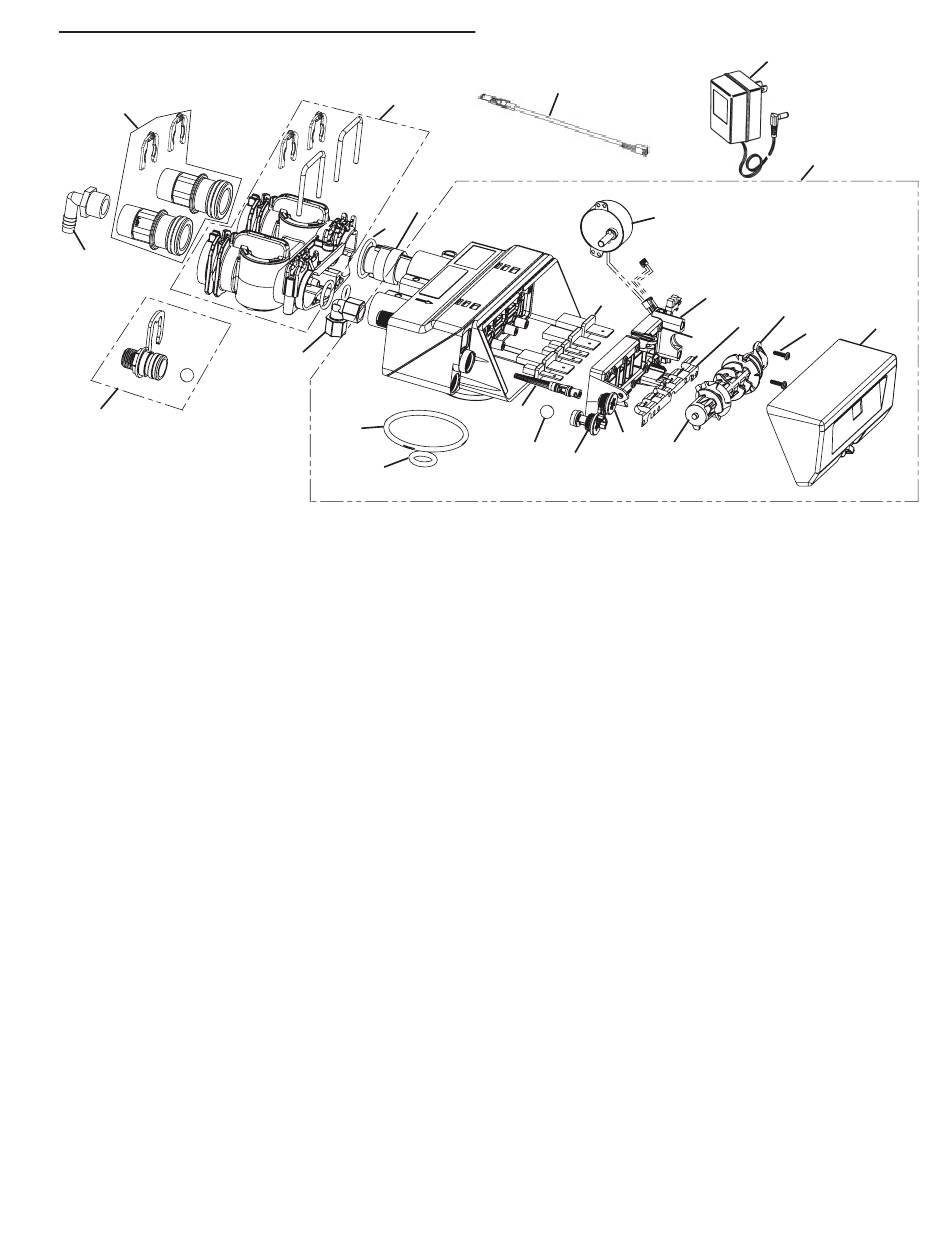

VALVE ASSEMBLY

24
25
22
Item No. QTY Part No.
1 . . . . . . . . . . . 1 . . . . . . .4000864 . . . . . . . . . Assembly, 706 Controller
2 . . . . . . . . . . . 1 . . . . . . .4001576 . . . . . . . . . Valve Body Assy, Volumetric
. . . . . . . .4000889 . . . . . . . . . Valve Body Assy, Volumetric
3 . . . . . . . . . . . 1 . . . . . . .3007947 . . . . . . . . . Valve Disc Kit
4 . . . . . . . . . . . 1 . . . . . . .3022012 . . . . . . . . . Top Plate
5 . . . . . . . . . . . 1 . . . . . . .4000871 . . . . . . . . . Female Elbow, 3/8 NPT to
6 . . . . . . . . . . 12 . . . . . .1234170 . . . . . . . . . Screw, Top Plate
7 . . . . . . . . . . . 1 . . . . . . .3022017 . . . . . . . . . Spring, Top Plate
8 . . . . . . . . . . . 1 . . . . . . .3022013 . . . . . . . . . Camshaft, Refill First
9 . . . . . . . . . . . 1 . . . . . . .1000589 . . . . . . . . . Yoke, Camshaft
10 . . . . . . . . . . . 2 . . . . . . .1234170 . . . . . . . . . Screw, Yoke
11 . . . . . . . . . . . 1 . . . . . . .4001291 . . . . . . . . . 368 Valve Motor/Optical
12 . . . . . . . . . . . 1 . . . . . . .1000269 . . . . . . . . . Injector Cap Assembly
13 . . . . . . . . . . . 1 . . . . . . .3025329 . . . . . . . . . "H" Assy Injector w/O-rings
. . . . . . . .4000880 . . . . . . . . . "J" Assy Injector w/O-rings
14 . . . . . . . . . . . 1 . . . . . . .1243510 . . . . . . . . . Assembly, Refill Cont, .33
15 . . . . . . . . . . . 2 . . . . . . .1030502 . . . . . . . . . Ball, Backwash, Brine Refill
21
18
20
5
16
17
Description
Cover
Includes Item #18 OM26KCS
Includes Item #18 OM32KCS
and OM36KCS
3/8 Tubing
Sensor Assy
and Screen, Lt Purple, 9 Inch
Tank OM26KCS
and Screen,, Lt Blue, 10
Inch Tank OM32KCS and
OM36KCS
gpm
Controller
19
11
3
13
12
15 8
14
Item No. QTY Part No.
16 . . . . . . . . . . . 1 . . . . . . .1010154 . . . . . . . . . O-ring, Tank
17 . . . . . . . . . . . 1 . . . . . . .1232370 . . . . . . . . . O-ring, Riser
18 . . . . . . . . . . . 1 . . . . . . .3027839 . . . . . . . . . Meter Assembly
19 . . . . . . . . . . . 1 . . . . . . .1235446 . . . . . . . . . Assembly, Sensor Cable
20 . . . . . . . . . . . 1 . . . . . . .3031825 . . . . . . . . . Kit, O-ring, Manifold
21 . . . . . . . . . . . 1 . . . . . . .4000886 . . . . . . . . . Bypass
1 . . . . . . .4000392 . . . . . . . . . Main Assembly
2 . . . . . . .3027832 . . . . . . . . . Retainer, Manifold, SS
2 . . . . . . .40576 . . . . . . . . . . . . . Clips Retainer, Plastic
1 . . . . . . .3031825 . . . . . . . . . Kit, O-ring Manifold
22 . . . . . . . . . . . 1 . . . . . . .4001286 . . . . . . . . . Kit, Drain Line Flow Control
. . . . . . . .4000887 . . . . . . . . . Kit, Drain Line Flow Control
1 . . . . . . .4000390 . . . . . . . . . Drain Line Clip
1 . . . . . . .1030502 . . . . . . . . . Backwash Ball
1 . . . . . . .4000535 . . . . . . . . . Flow Control with O-ring
. . . . . . . .4000536 . . . . . . . . . Flow Control with O-ring
23 . . . . . . . . . . . 1 . . . . . . .1000811 . . . . . . . . . 120 VAC, 60 Hz, N. America
24 . . . . . . . . . . . 2 . . . . . . .4000888 . . . . . . . . . Connector Assembly, 1" NPT,
25 . . . . . . . . . . . 1 . . . . . . .4000996 . . . . . . . . . Fitting, Drain Line, 90°, 1/2
OM26KCS, OM32KCS, OM36KCS DE11 • 17
23
2
4
9
7
1
10
6
Description
OM26KCS
OM32KCS and OM36KCS
OM26KCS
OM32KCS and OM36KCS
Plug
Plastic, w/O-ring and Clip
Retainer
NPT, 1/2 Tube
